AR47.30-P-8212RBS Remove/ Install Activated Charcoal Canister



AR47.30-P-8212RBS Remove/ Install Activated Charcoal Canister
- with CODE (P99) "AMG Black Series" special model


Component Identification:

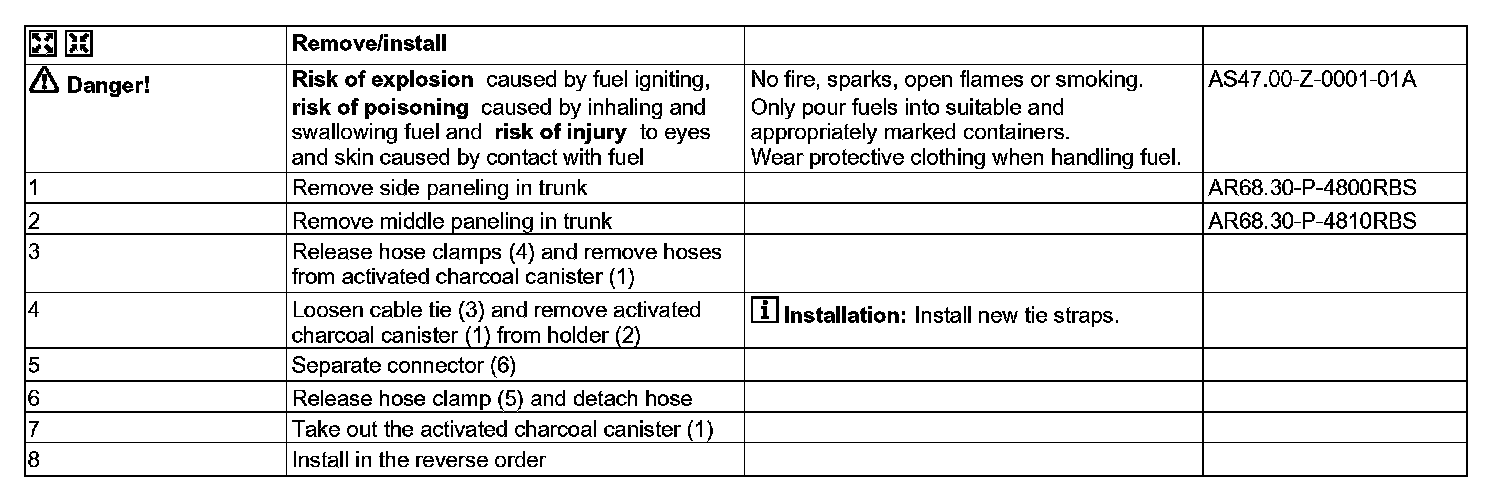

Steps 1 - 8:
