Evaporative Emission Control Canister: Description and Operation

GF47.30-P-2010MOR Component Description For Activated Charcoal Canister
- MODEL 230.4 with ENGINE 275.9 as of model year 2009 / AEJ 08 model refinement package

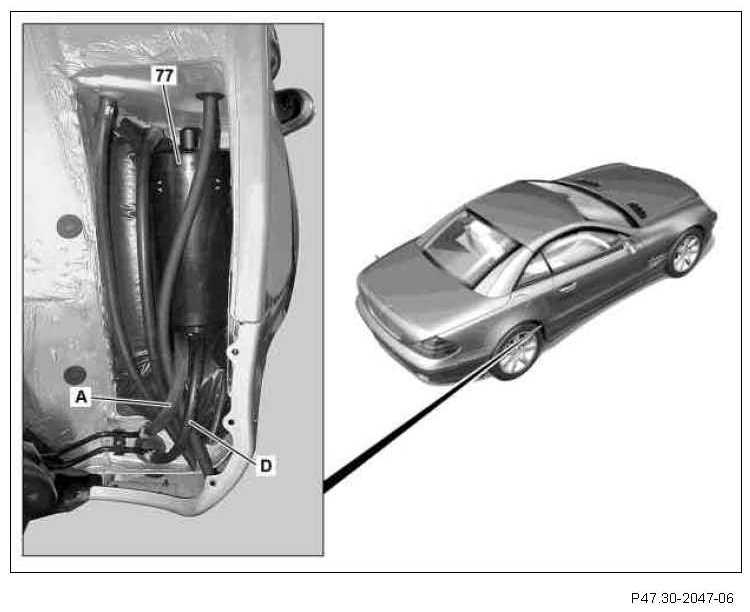

View of wheel arch at the left rear (for engine 275.954/81, except code (494) USA version)
77 Activated charcoal canister
A Purge line (to engine)
D Aeration and ventilation of fuel tank

Location
The activated charcoal canister is located at the front of the right rear wheel arch.

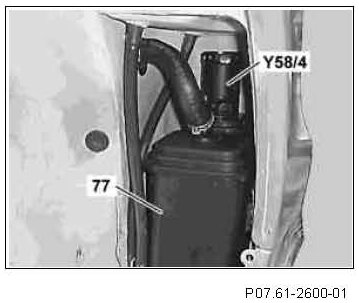

View of wheel arch at the left rear (for engine 275.954/81, with code (494) USA version)
77 Activated charcoal canister
Y58/4 Activated charcoal filter shutoff valve

Location
The activated charcoal canister is located at the front of the right rear wheel arch.





View of trunk at the front (for engine 275.983 with code (P99) Special model "AMG Black Series")
77 Activated charcoal canister
Y58/4 Activated charcoal filter shutoff valve

Location
The activated charcoal canister is located at the front in the luggage compartment.

Task
- Temporary storage of fuel vapors for subsequent regeneration
- Ventilation and purging of fuel tank

Design
The activated charcoal canister consists of a plastic housing filled with activated charcoal granulates.

For code (494) USA version and engine 275.983 with code (P99) Special model "AMG Black Series"
The activated charcoal canister can be closed by the activated charcoal canister shutoff valve and has a basically large volume. The activated charcoal canister is divided into three chambers by partitions to achieve an optimal flow of the activated charcoal granulates.

Function
- Fuel vapors released from the fuel tanks are combined with the activated charcoal granulates
- The fuel tank is aerated (by vacuum) and ventilated (by overpressure) through the activated charcoal canister

When regeneration is activated, the fuel vapors are drawn in by the engine and combusted.
The activated charcoal granulates are completely regenerated in the ideal case.

For code (494) USA version and engine 275.983 with code (P99) Special model "AMG Black Series"
Fuel vapors that have collected at the time of refueling are also combined with the activated charcoal granulates.
