Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Pump >> Service and Repair

Air Injection Pump: Service and Repair

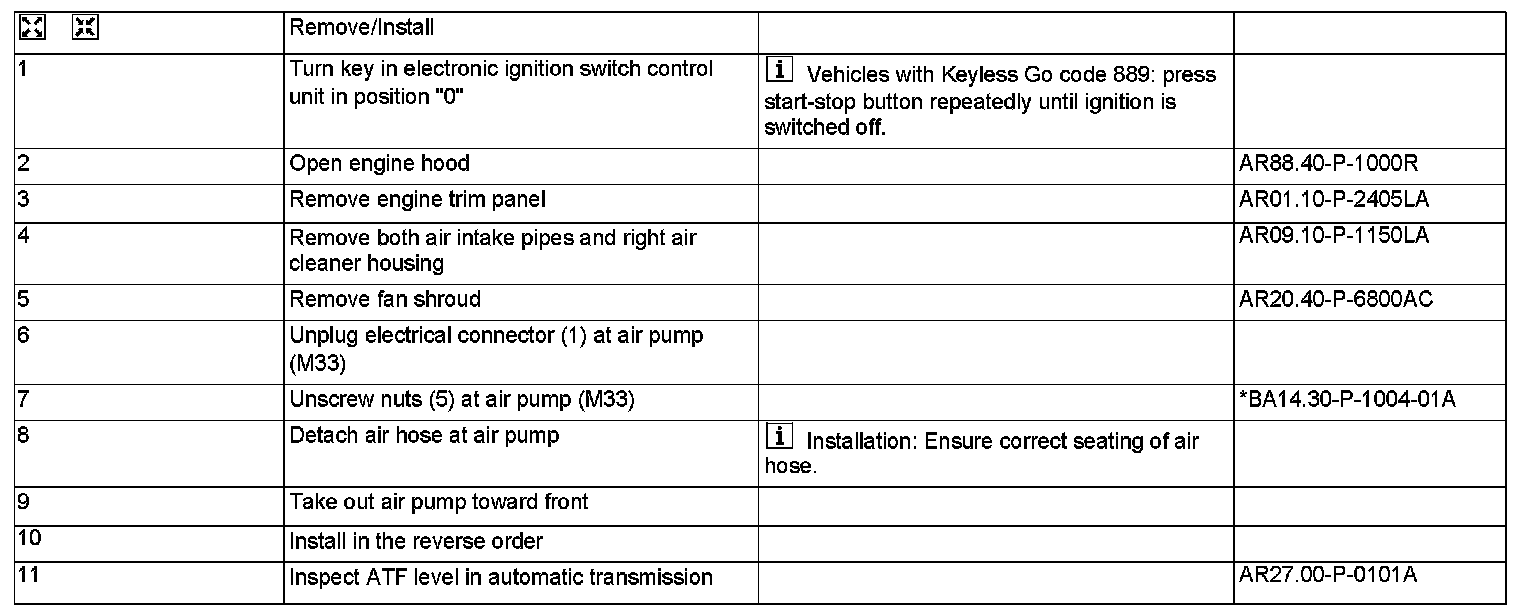

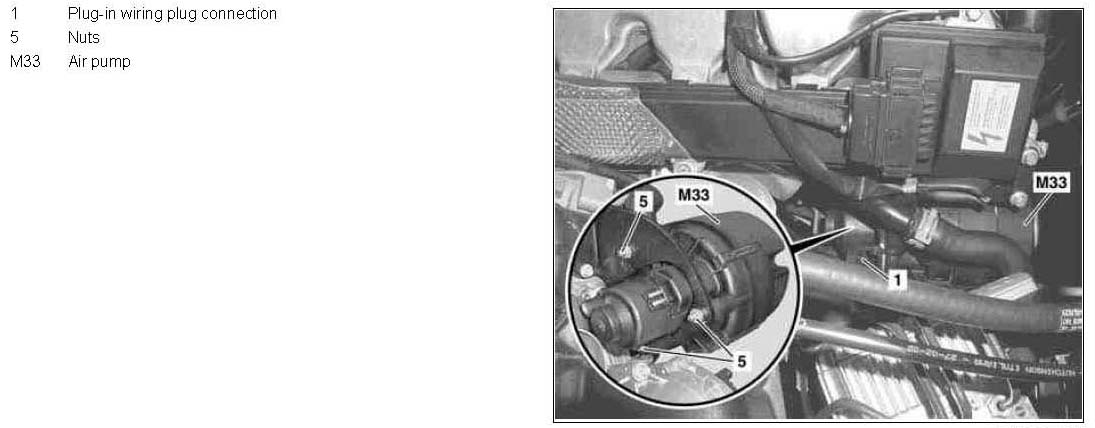

AR14.30-P-7251R Remove/install air pump
