SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Description and Operation
>>
GF07.61-P-2006M ME-SFI Idle, Function
GF07.61-P-2006M ME-SFI Idle, Function
GF07.61-P-2006M ME-SFI Idle, Function

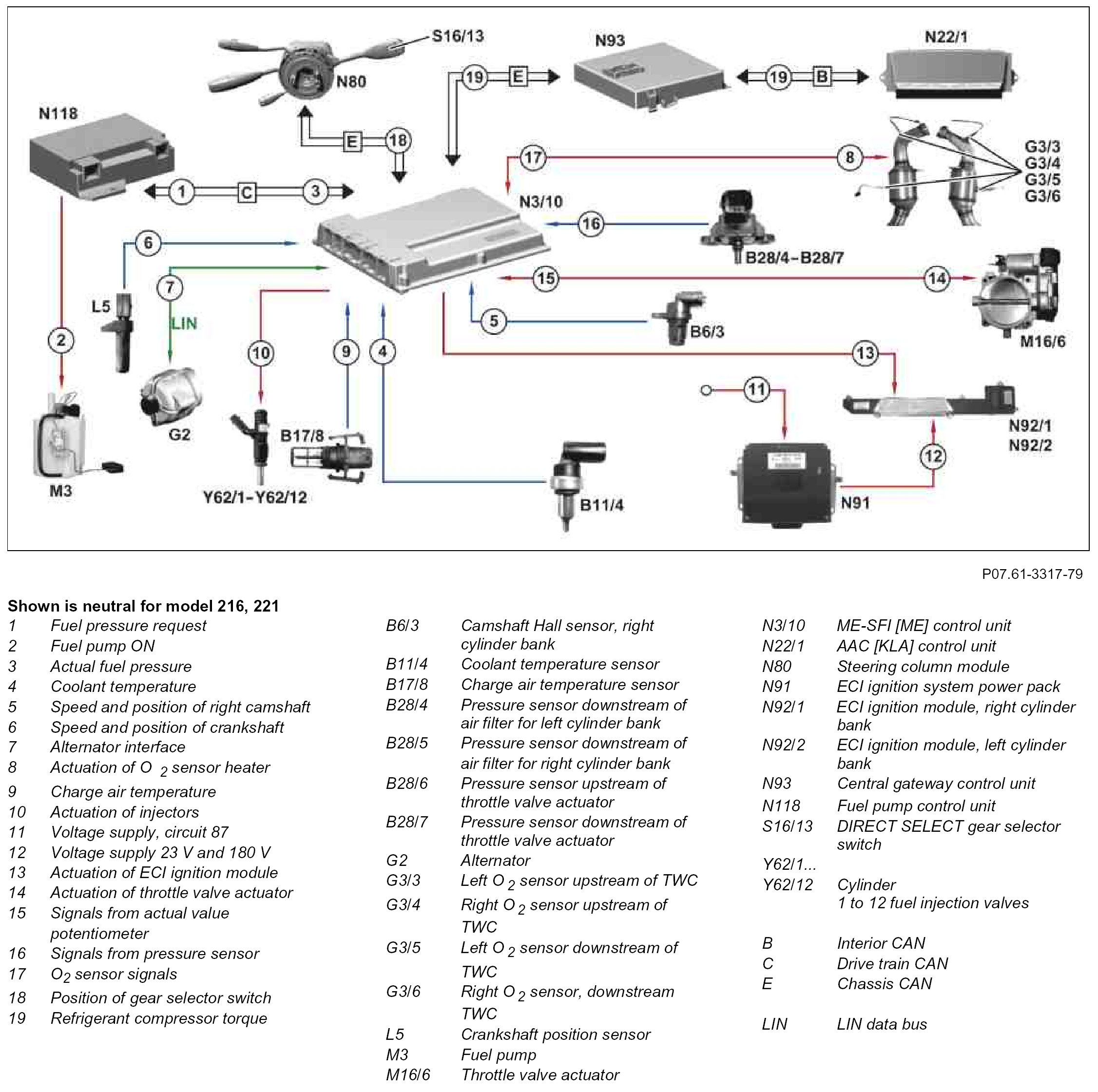

Component Identification:
