GF30.20-P-2010RI Accelerator Pedal Sensor, Component Description

GF30.20-P-2010RI Accelerator Pedal Sensor, Component Description
- ENGINE 156, 272, 273, 275 in MODEL 230 as of Model Year 09 /AEJ 08 MOPF

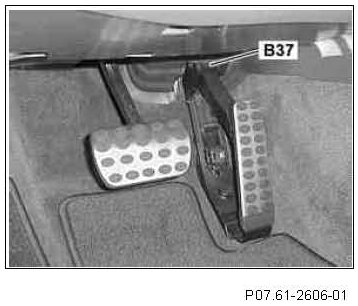

View of driver footwell
B37 Accelerator pedal sensor

Location
The accelerator pedal sensor is located at the top in the accelerator pedal module.

Task
The accelerator pedal sensor converts mechanical operation of the accelerator pedal into an electrical voltage according to the accelerator pedal position.

Design

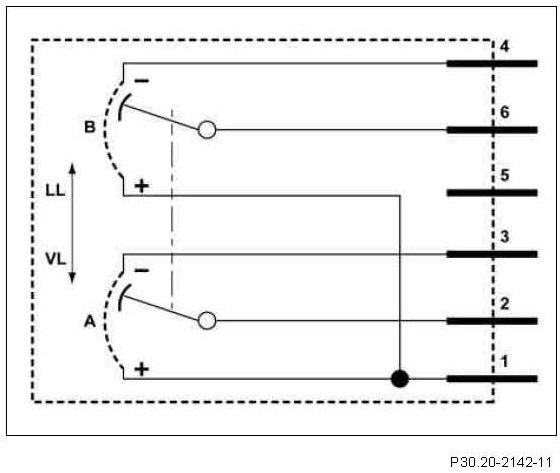

Shown is the internal circuit





1 Pin 1: Voltage supply (5 V)
2 Pin 2: Signal voltage 1 (approx. 0.40 to 4.50 V)
3 Pin 3: Ground Hall element 1
4 Pin 4: Ground Hall element 2
5 Pin 5: not used
6 Pin 6: Signal voltage 2 (approx. 0.20 to 2.25 V)
A Hall element 1
B Hall element 2
LHD Idle position
FL Full-load position

Function
The accelerator pedal sensor consists of a shaft with a ring magnet. The ring magnet rotates in a printed circuit board with stator in the two fixed Hall elements. This produces a change in the voltage.
The accelerator pedal position information is sent in the form of two signal voltages to the ME-SFI control unit (N3/10).

Emergency running
If the signal voltage of one Hall element fails, the signal voltage of the other Hall element is used and the engine goes into limp-home mode.
