Drive Belt: Testing and Inspection
AP13.22-P-1352L Check poly-V-belt in visible area for wear

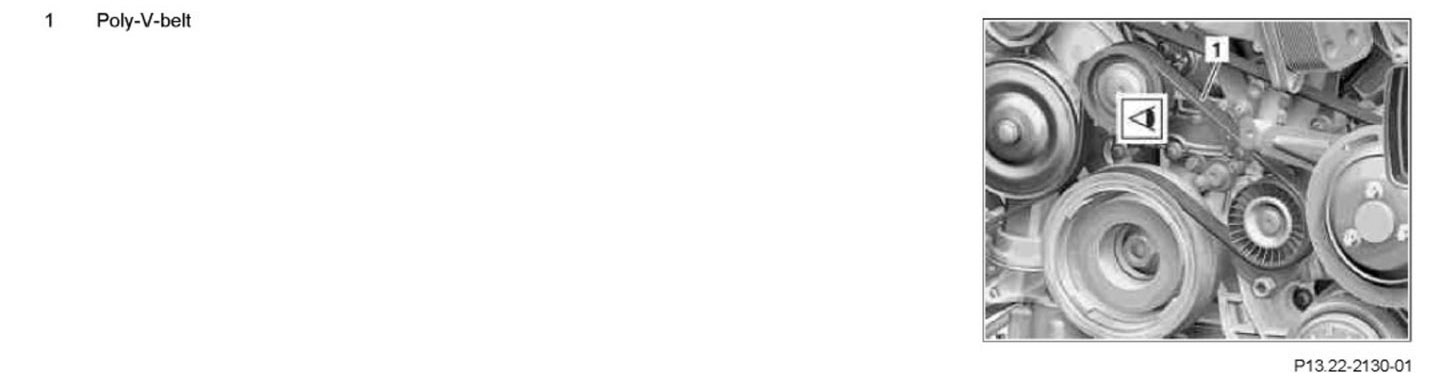

Component Identification:

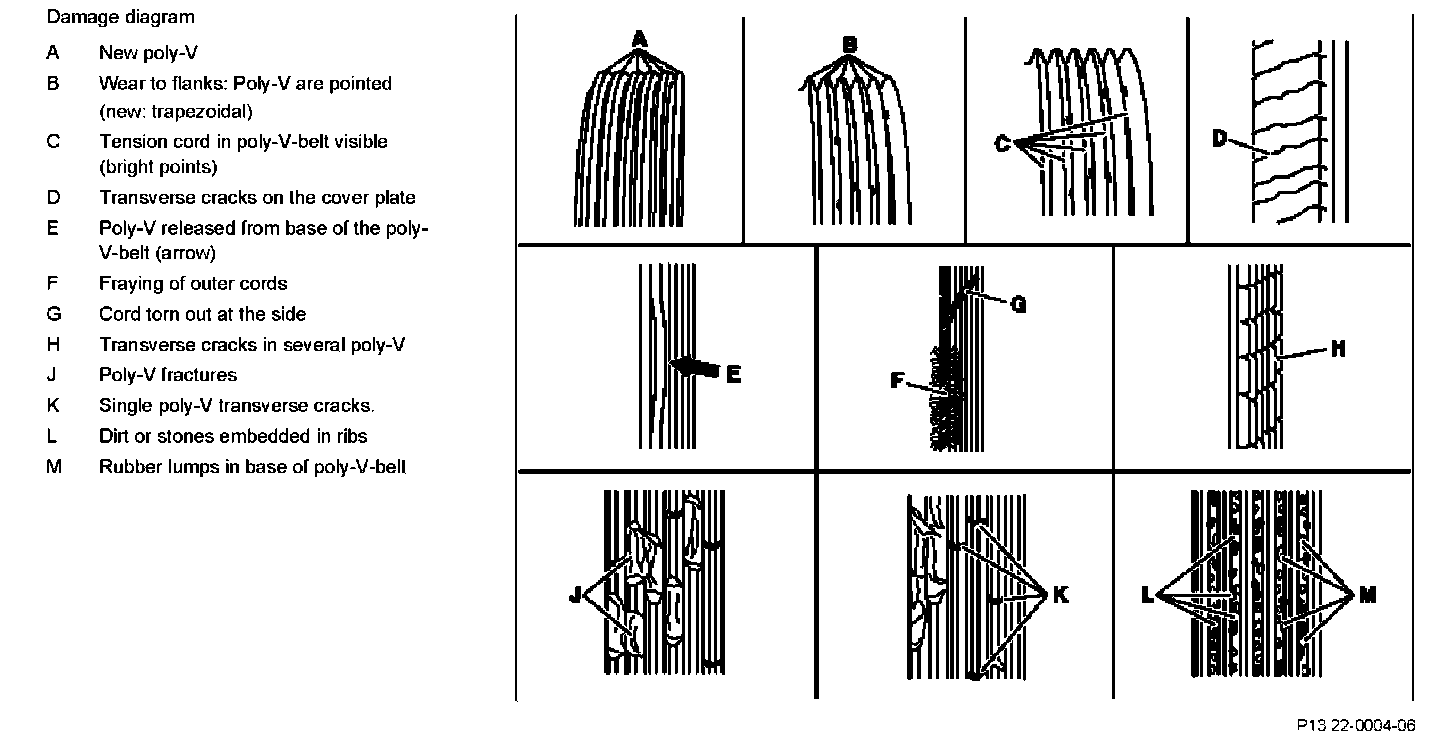

Component Identification:

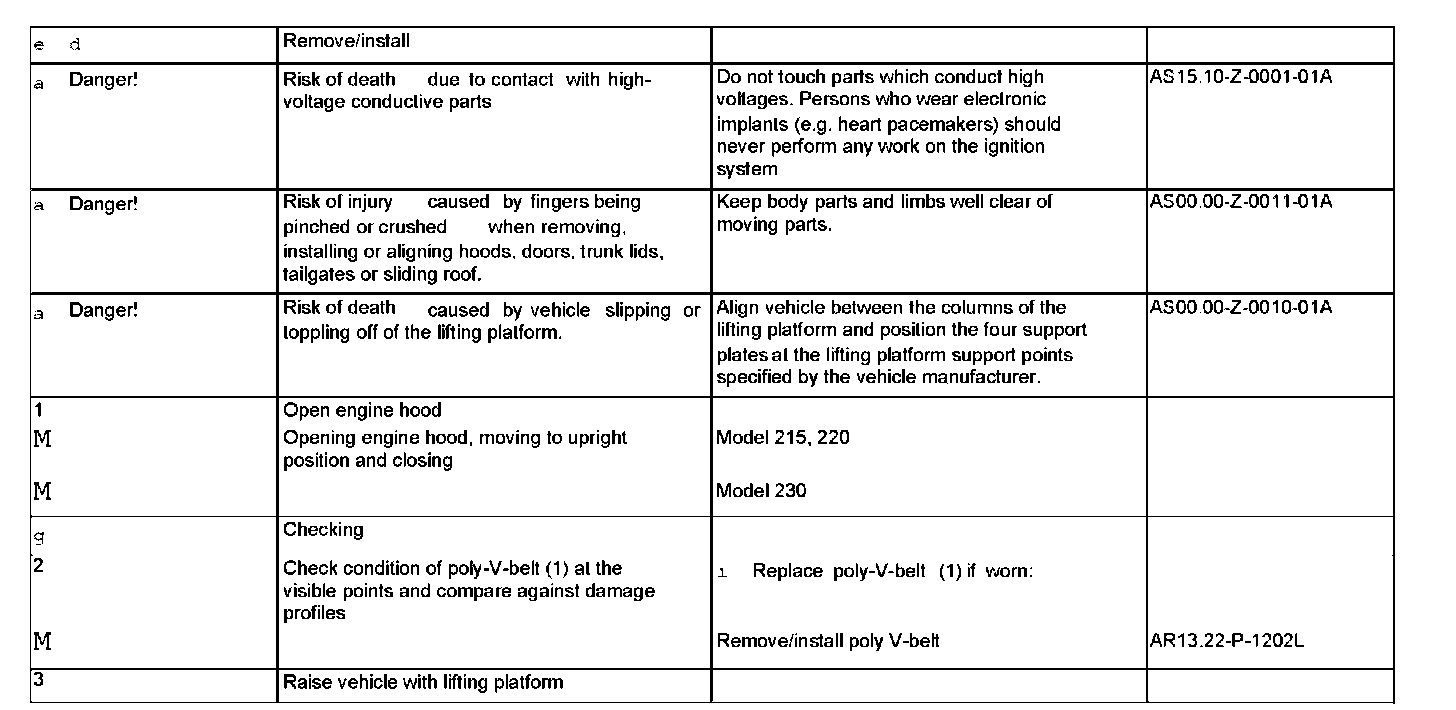

Steps 1 - 3:

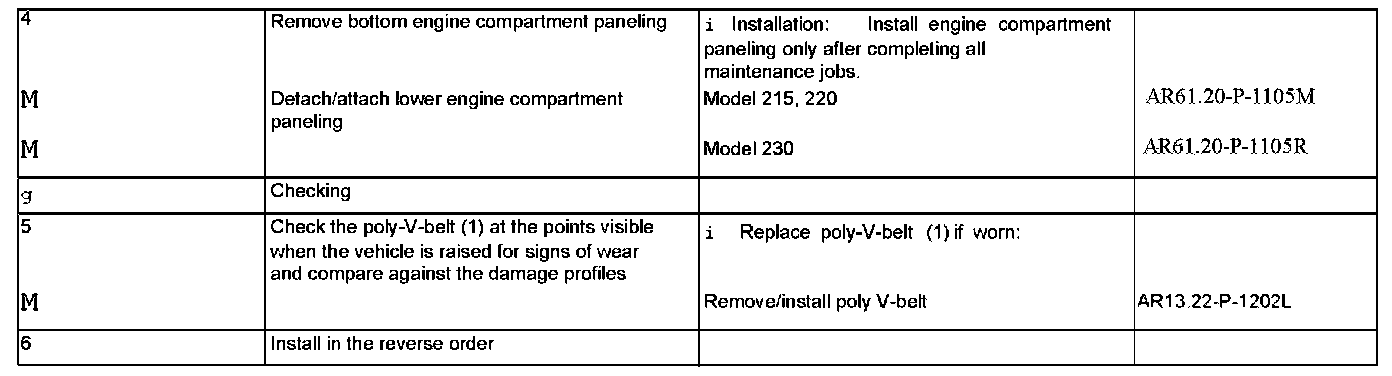

Steps 4 - 6:
