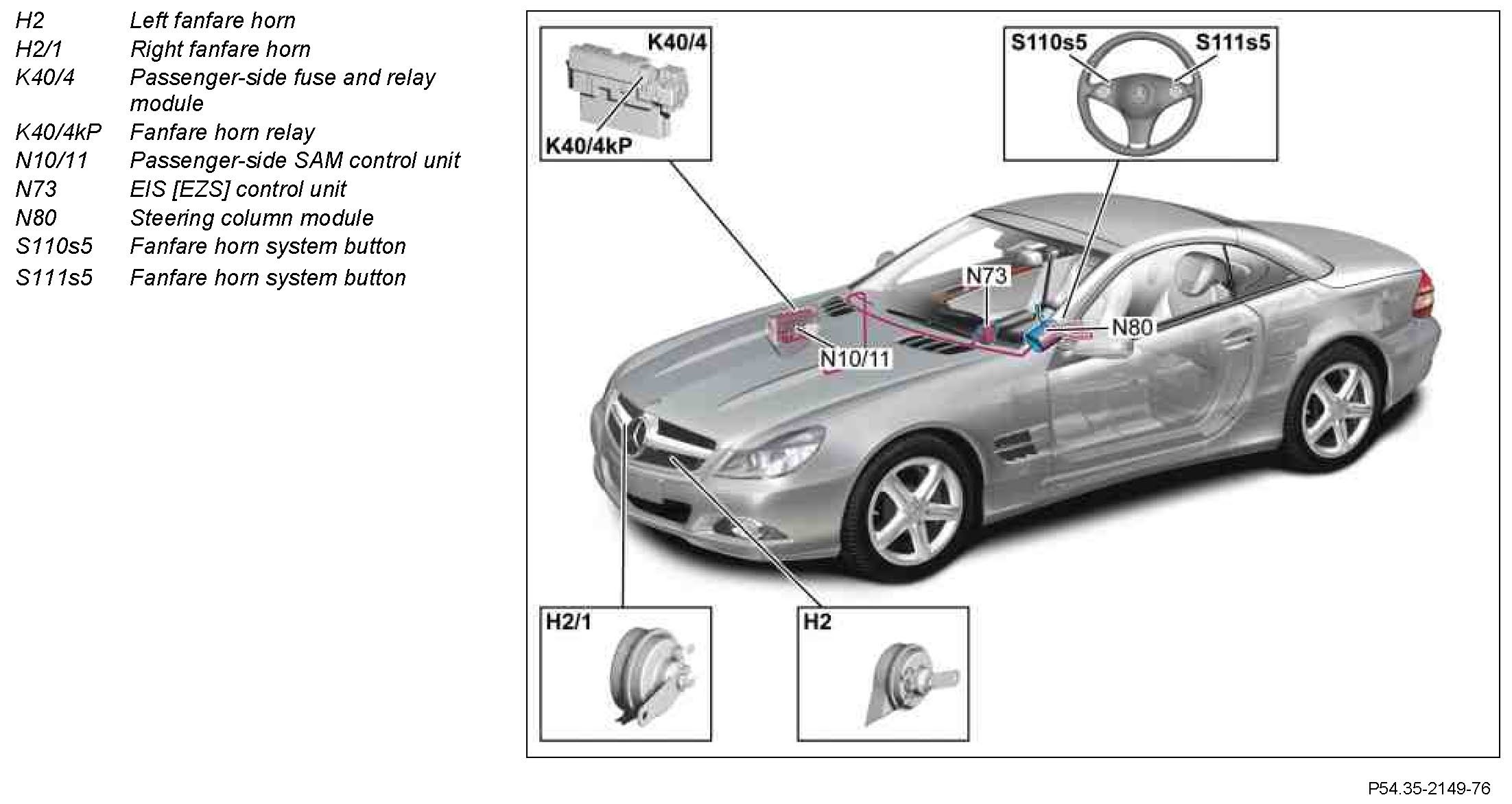

GF54.35-P-0001-01RI Fanfare Position of Components
GF54.35-P-0001-01RI Fanfare Position of Components
GF54.35-P-0001-01RI Fanfare Position Of Components
- as of model year 09
Component Identification:
