PE82.10-P-2063KA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

Electrical Function Schematic, Additional Functions, Driving Lights Actuation PE82.10-P-2063KA
- with CODE (618) Bi-xenon headlamps
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)
- refinement package
- as of model year 2009

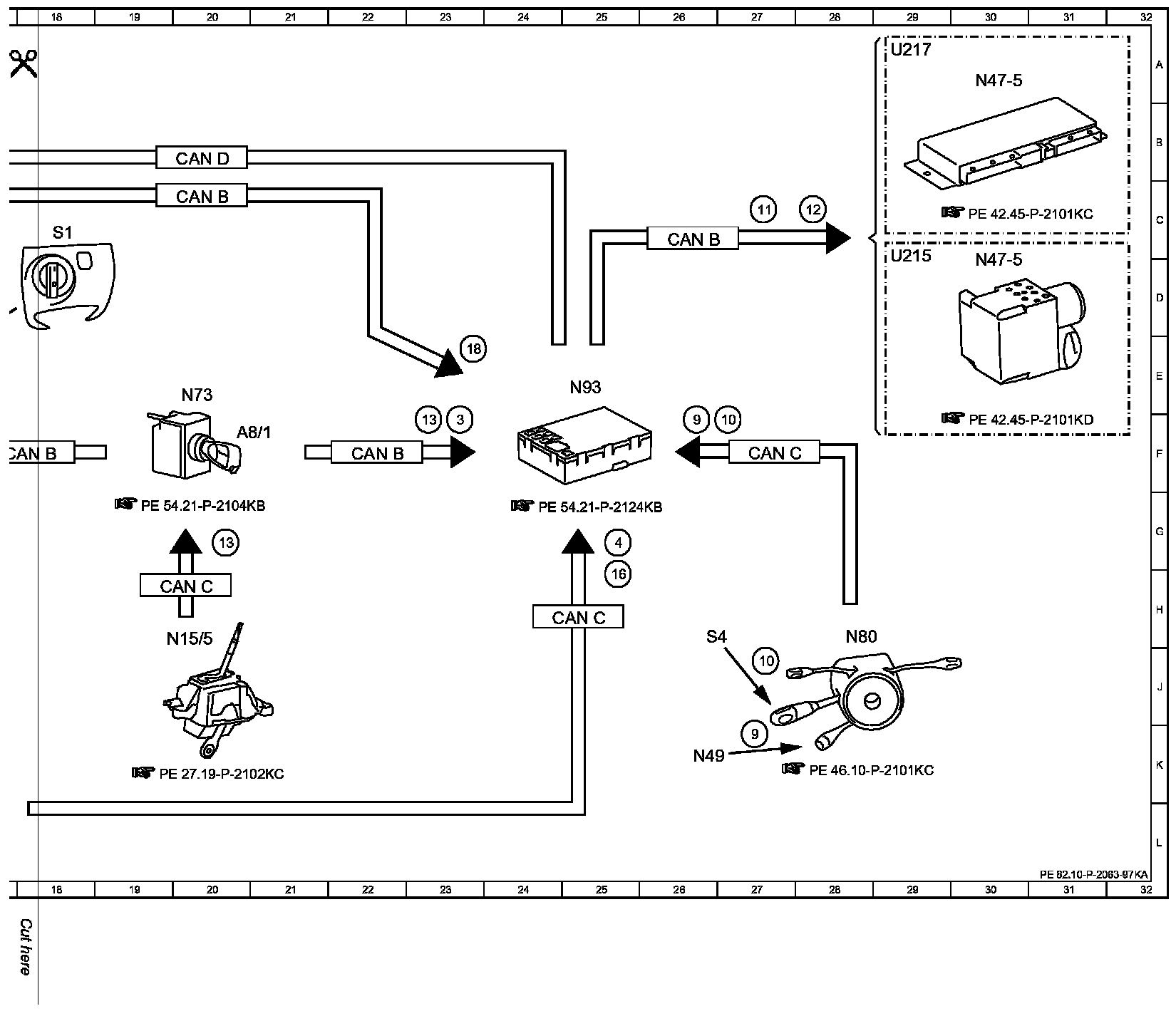

Function Diagram (Part 1):

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
