PE54.30-P-2054KA Electrical Function Schematic of Instrument Cluster, Indicator/Warning Message

Electrical Function Schematic Of Instrument Cluster, Indicator/warning Message PE54.30-P-2054KA
- refinement package
- as of model year 2009

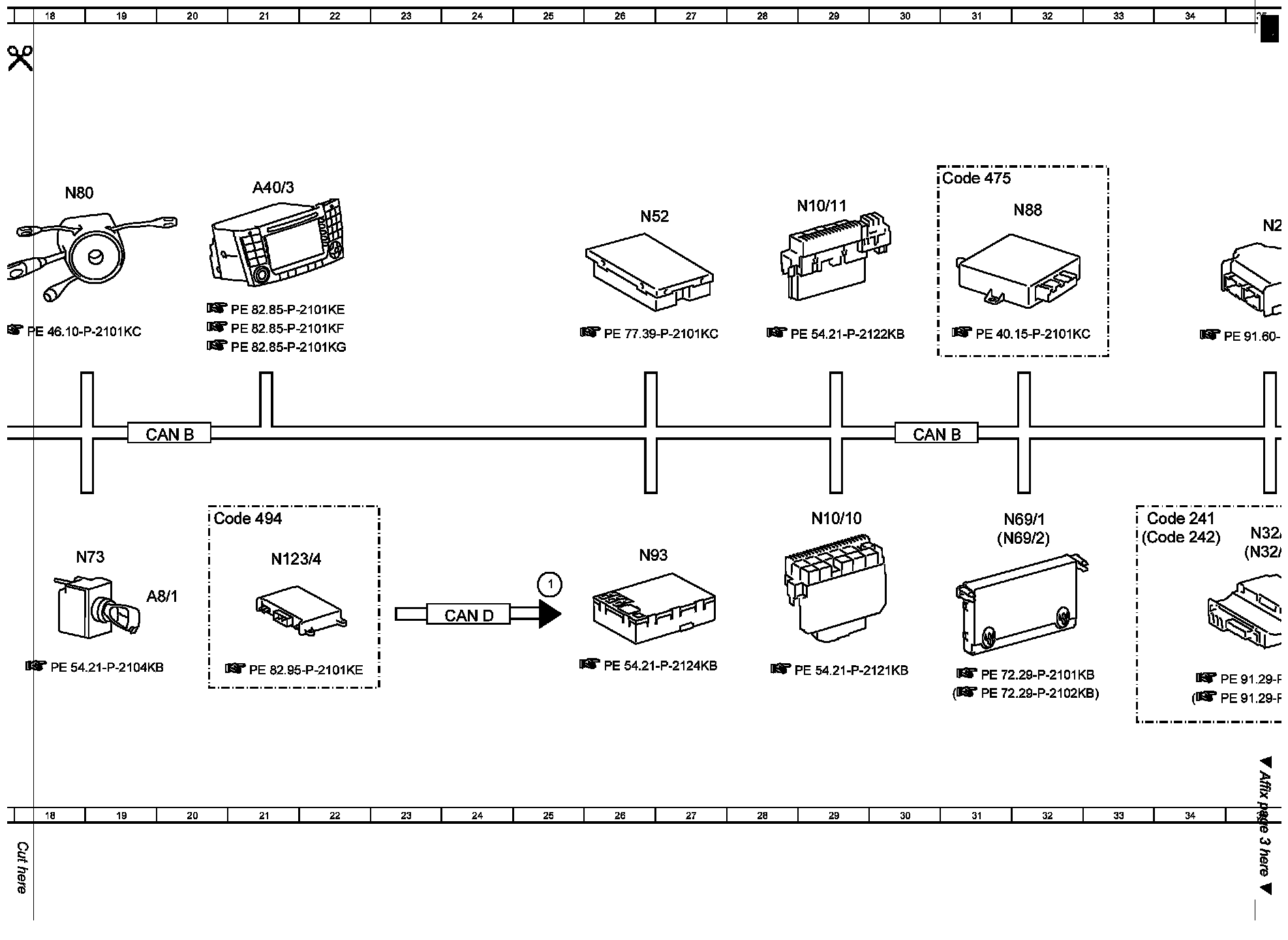

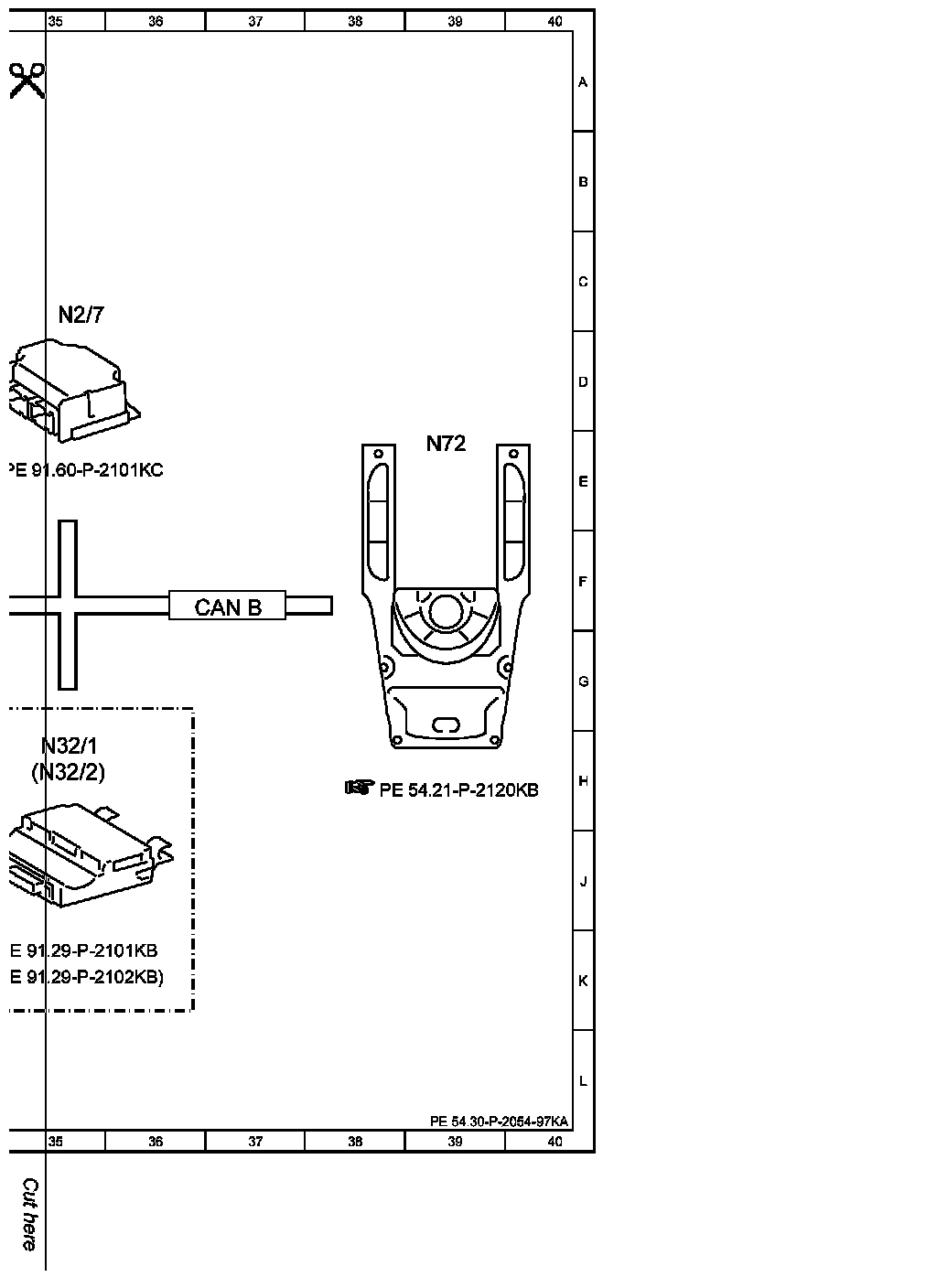

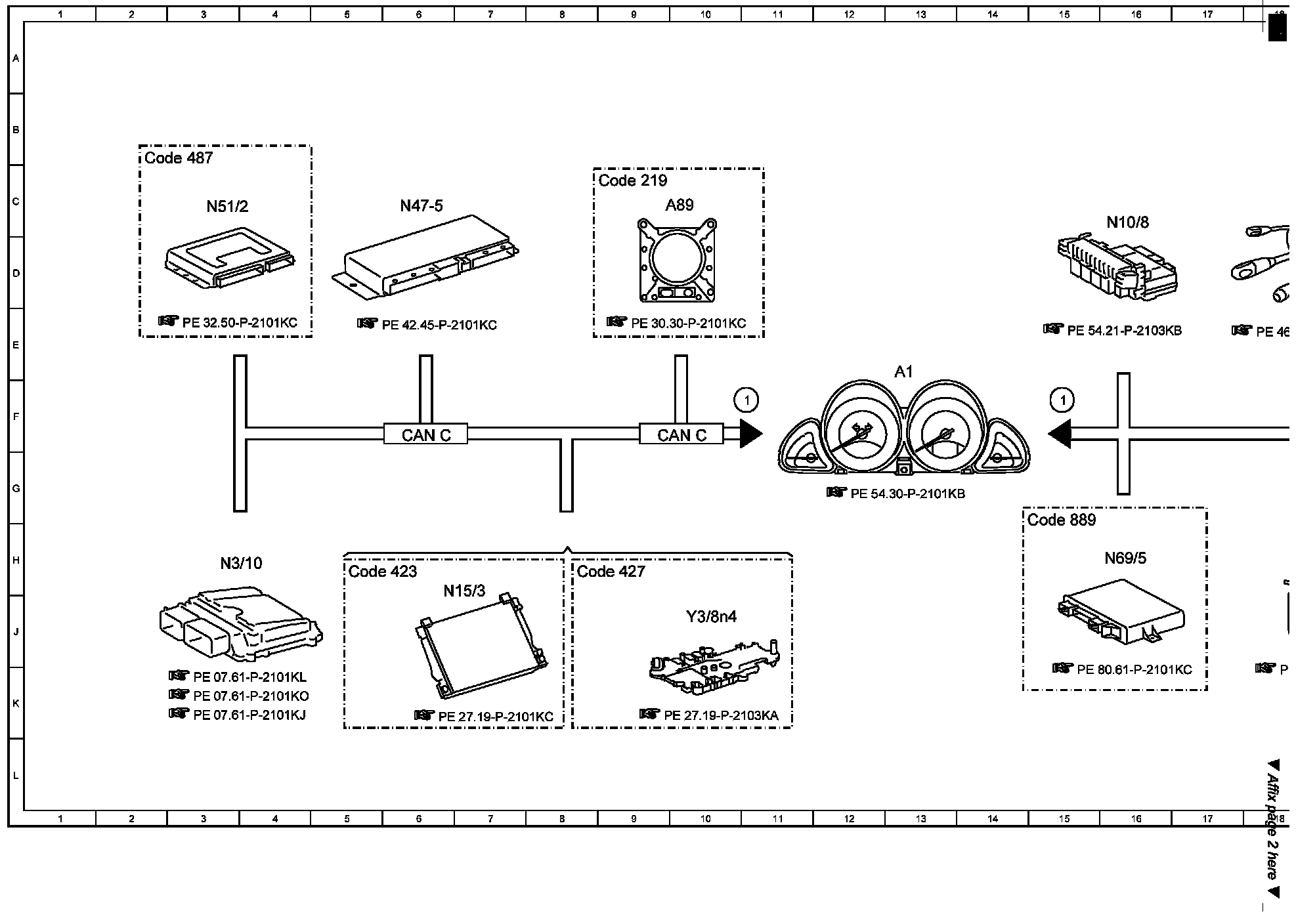

Function Diagram (Part 1):

Function Diagram (Part 2):

Function Diagram (Part 3):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
