GF83.10-P-2051RI Blower Regulator, Component Description

GF83.10-P-2051RI Blower Regulator, Component Description

Component Identification:

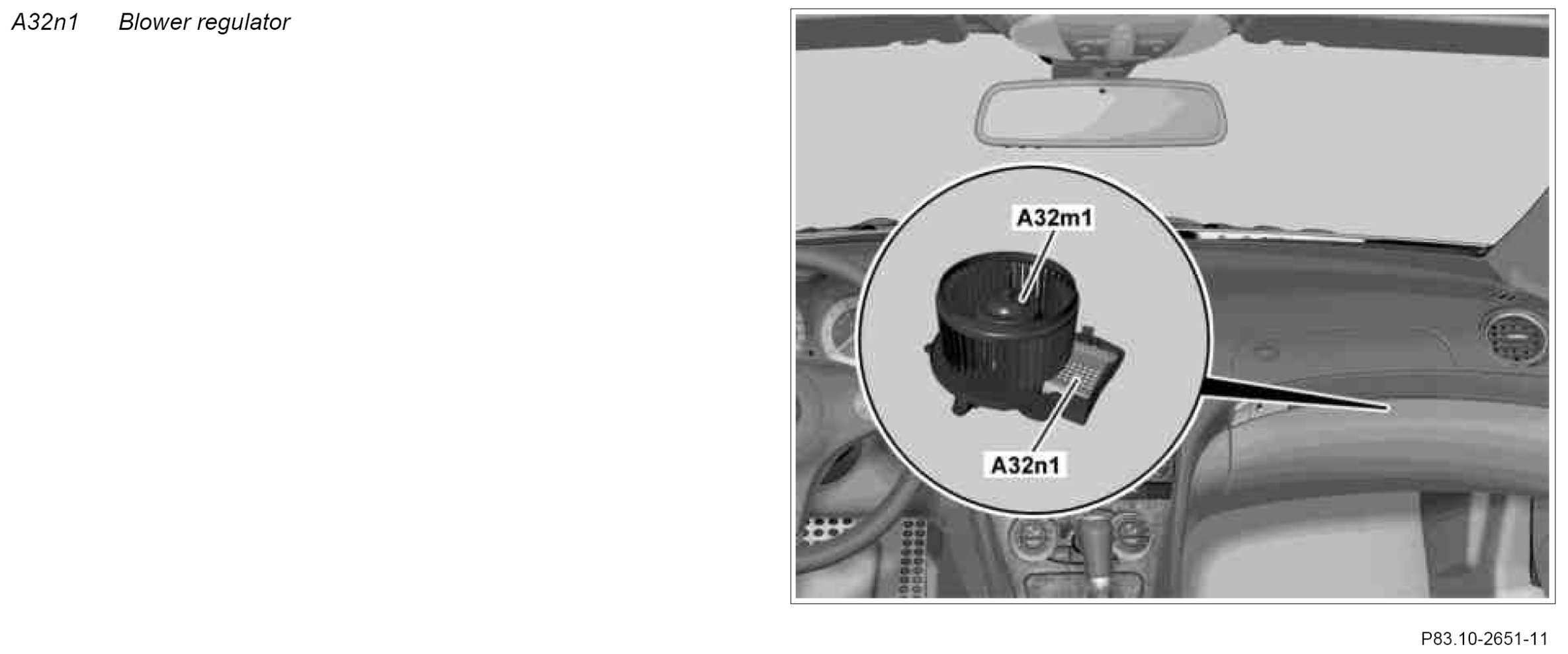

Location
The blower regulator is located in the air conditioner housing next to the blower motor (A32m1).

Task
The blower regulator regulates the voltage supply to the blower motor depending on the settings of the AAC [KLA] control and operating unit (N22). The blower regulator is connected to the AAC [KLA] control and operating unit via the AC bus.
