Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Duct >> Service and Repair

Air Duct: Service and Repair

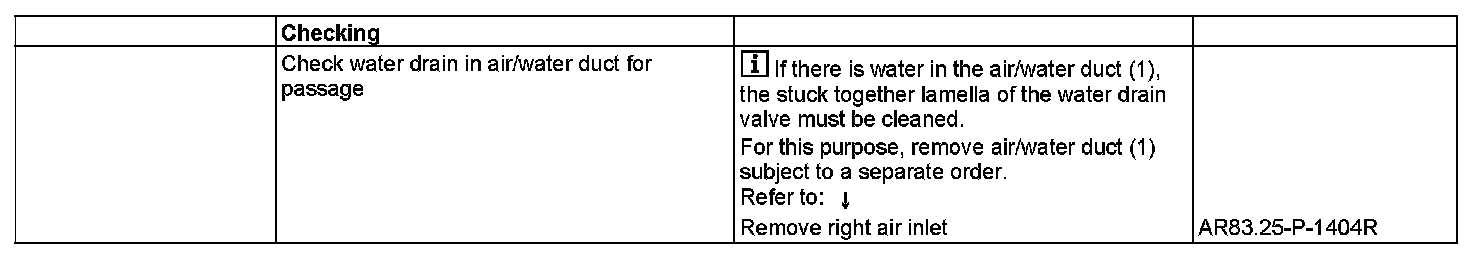

AP83.10-P-8353A Clean Water Drain In Air/water Duct

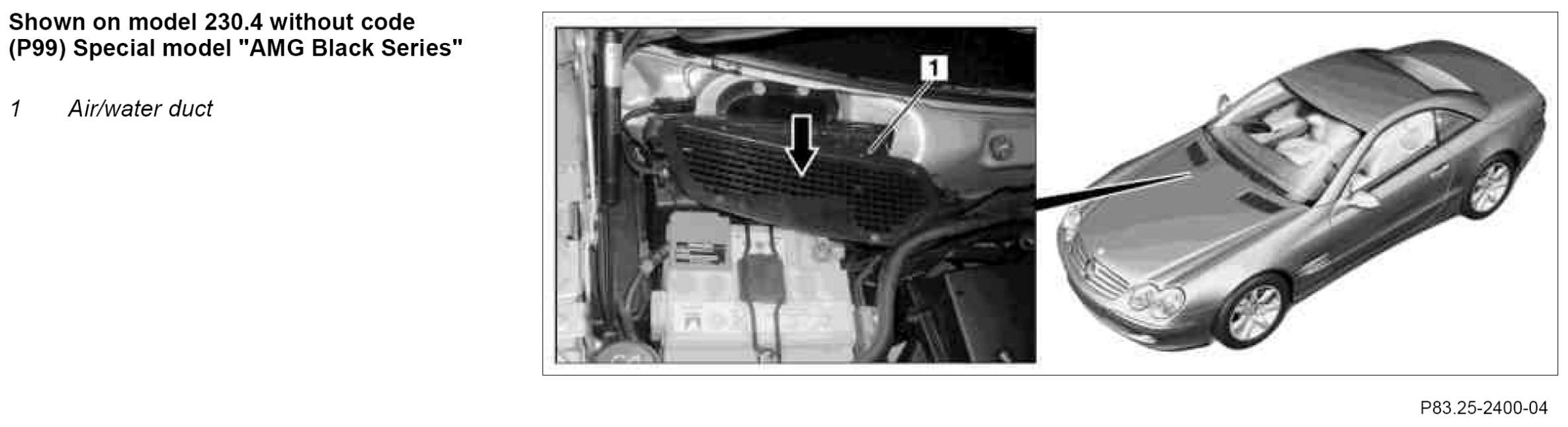

Component Identification:
