Air Door Actuator / Motor: Description and Operation

GF83.40-P-2197RI Automatic Air Conditioning Actuator Motors, Component Description

Component Identification:

Location

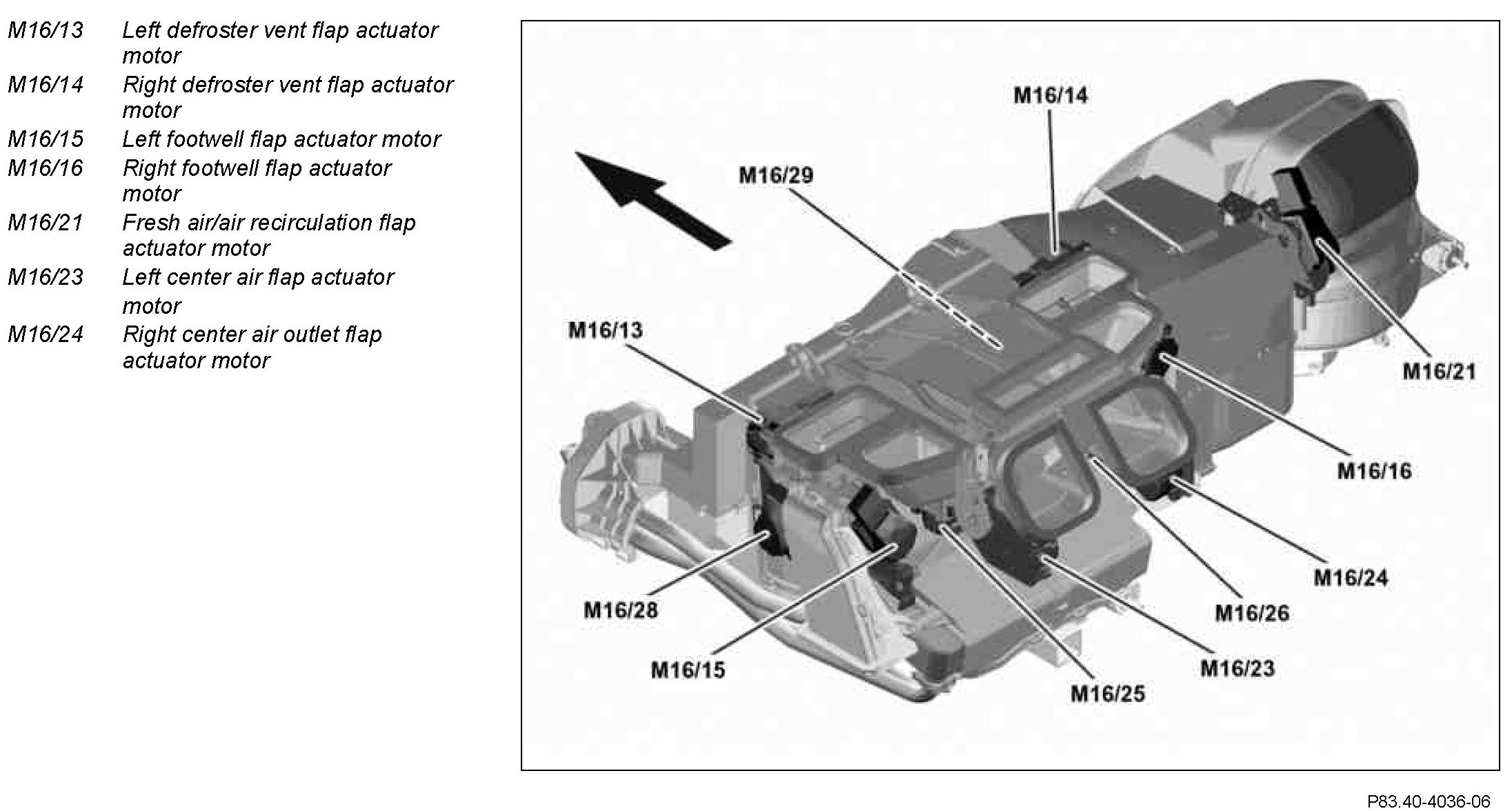

The actuator motors are located on the air conditioning housing.

All of the actuator motors on the air conditioning housing are of identical design. The task of the actuator motor and the assignment of the flap to be actuated takes place via the wiring harness coupling.

Task
The air distribution and the temperature in the vehicle interior are controlled by adjusting the air ducting flaps via the actuator motors. The actuator motors are actuated by the AAC [KLA] control and operating unit (N22) via the AC bus.
