Body - Heat Shield Modification Information

Date: April 22, 2009

Order No.: P-B-60.00/19a

Supersedes: P-B-60.00/19, February 18, 2009

Group: 60

Revision

Revised with Additional Images to Clarify Part Location (Figure 1)

SUBJECT:
MY-All, Model 230.479 (with Code P99 AMG Black Series)

Heat Shield Modification

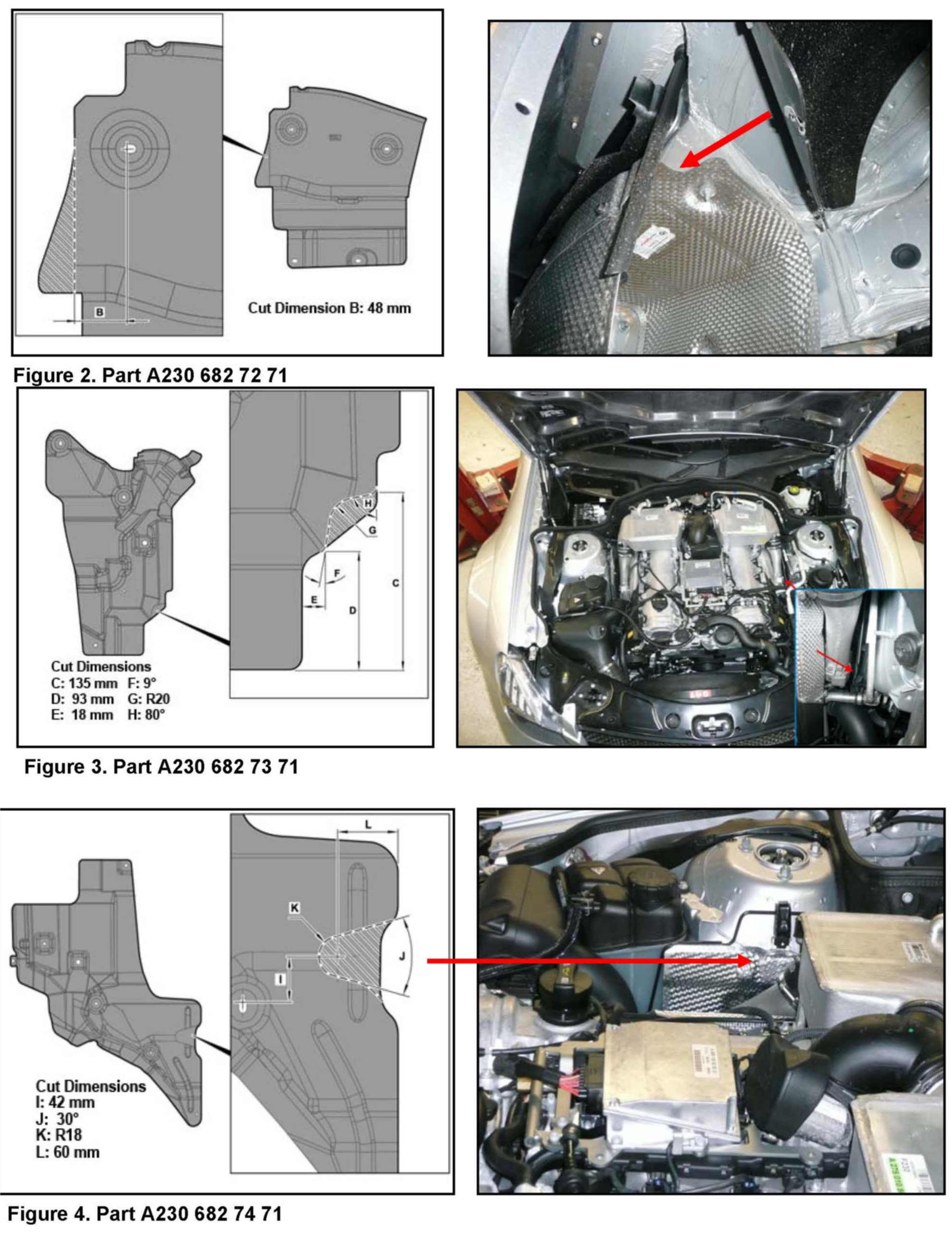

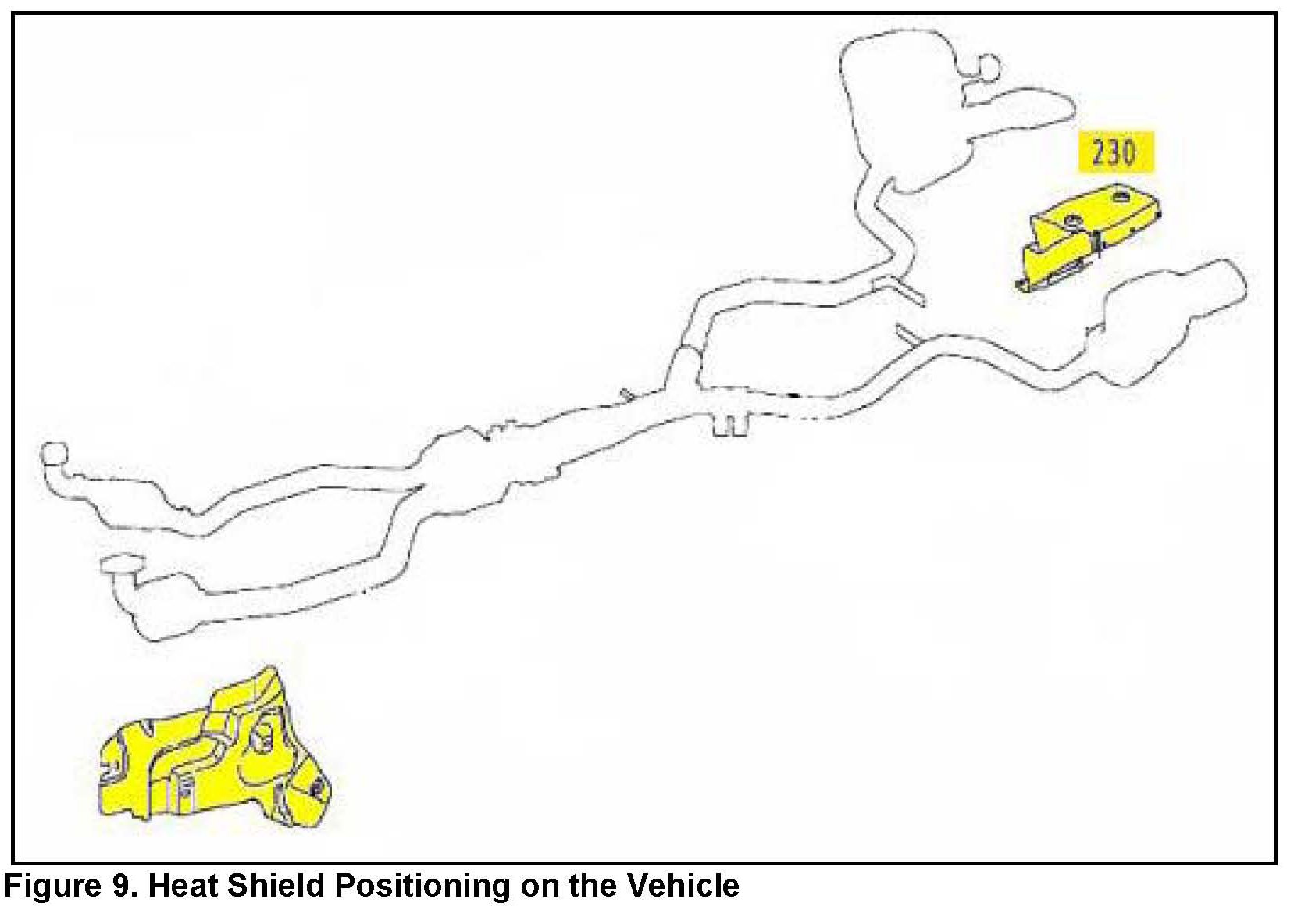

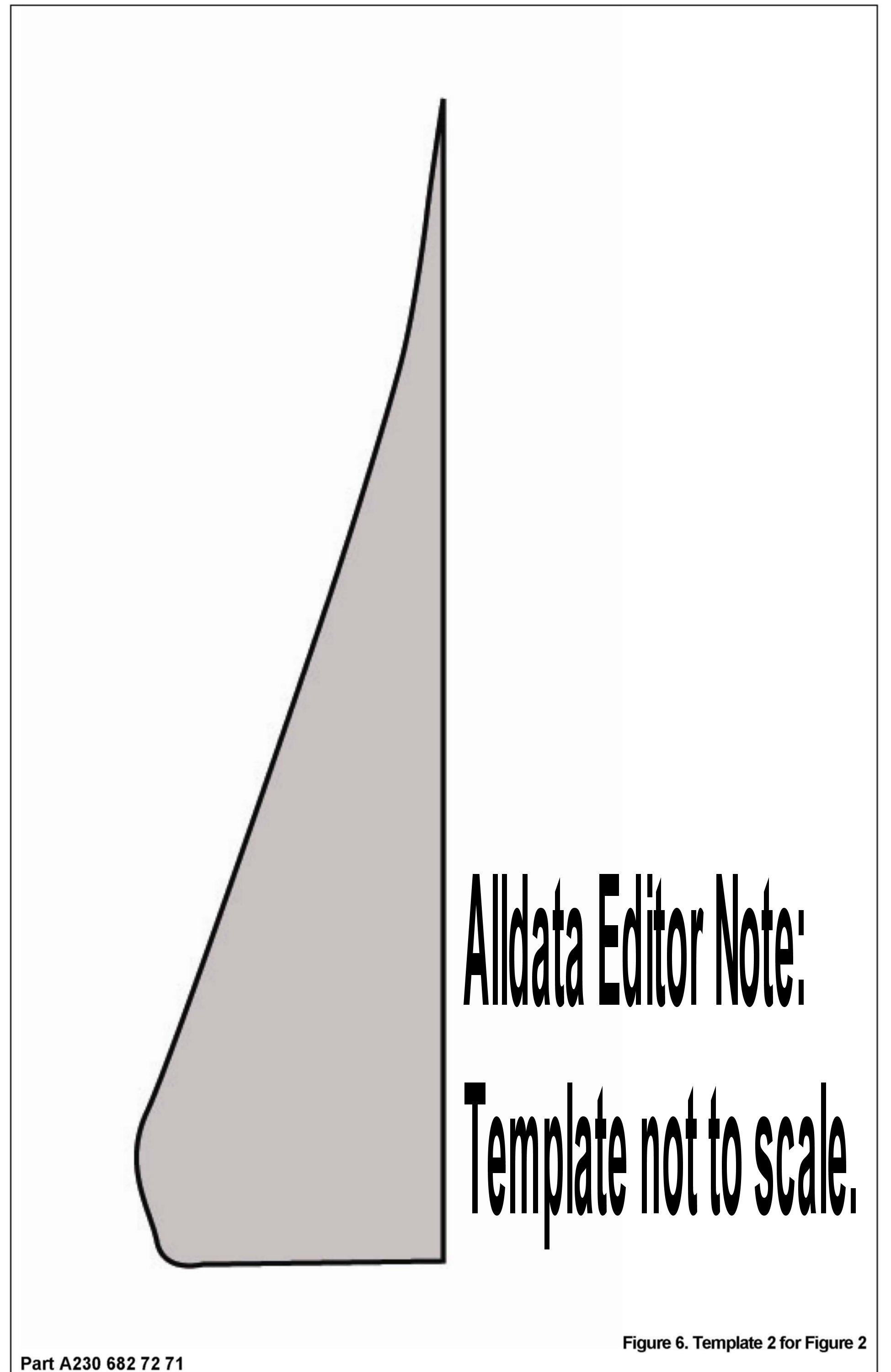

Series production heat shields on model 230.479 (Figure 9) require modification cuts as illustrated on the shaded areas below (Figures 1 through 4). Follow these figures for context of the cuts only. Print out the actual templates (Figures 5-8) and they will be the correct proportions for cutting.





Parts Information
