Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Water Pump >> Service and Repair

Water Pump: Service and Repair

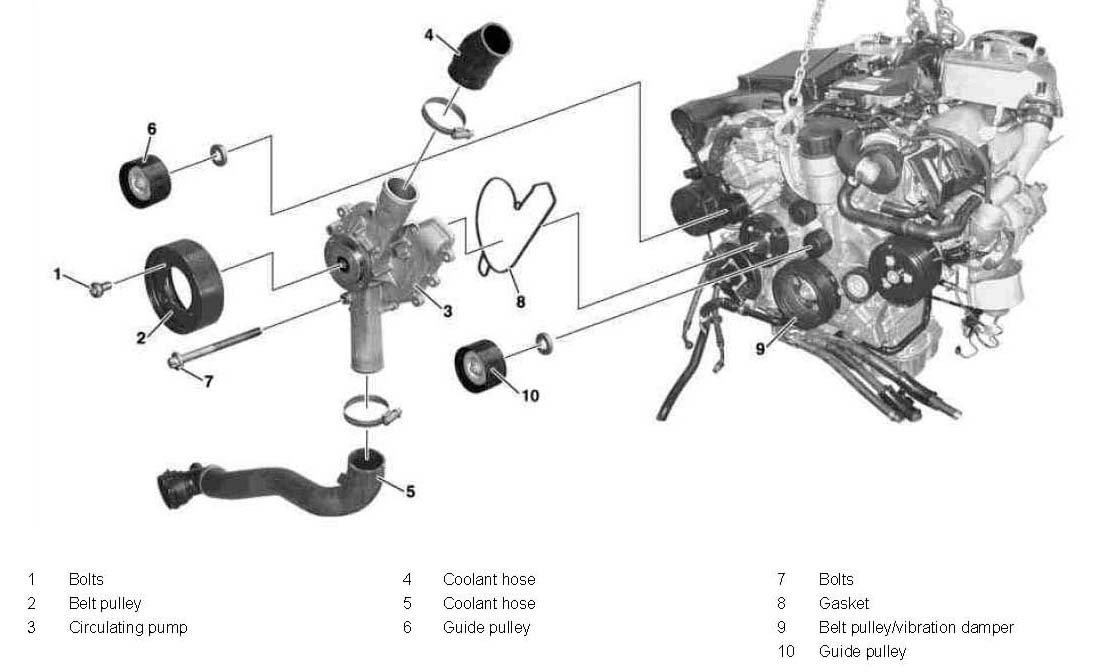

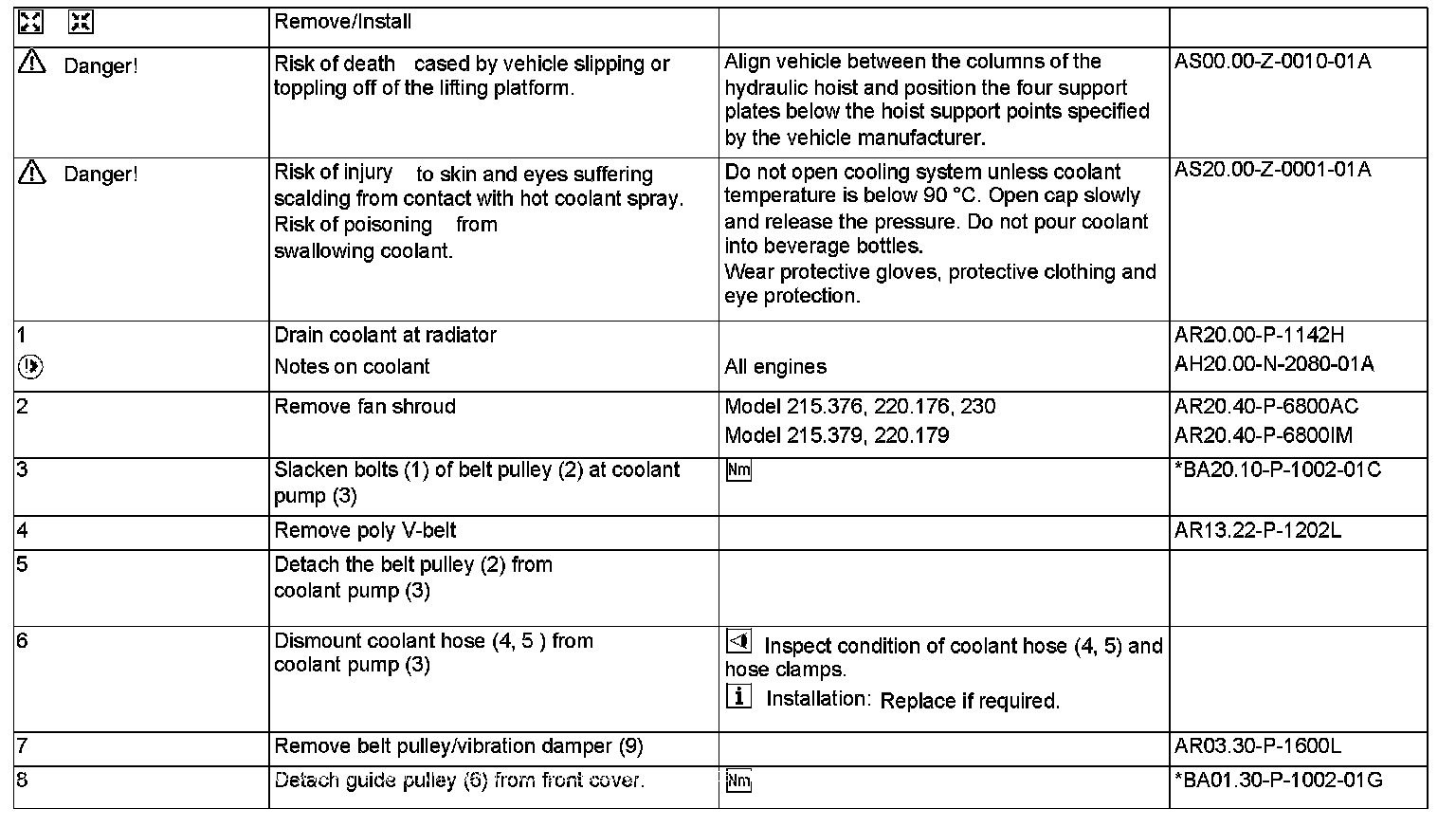

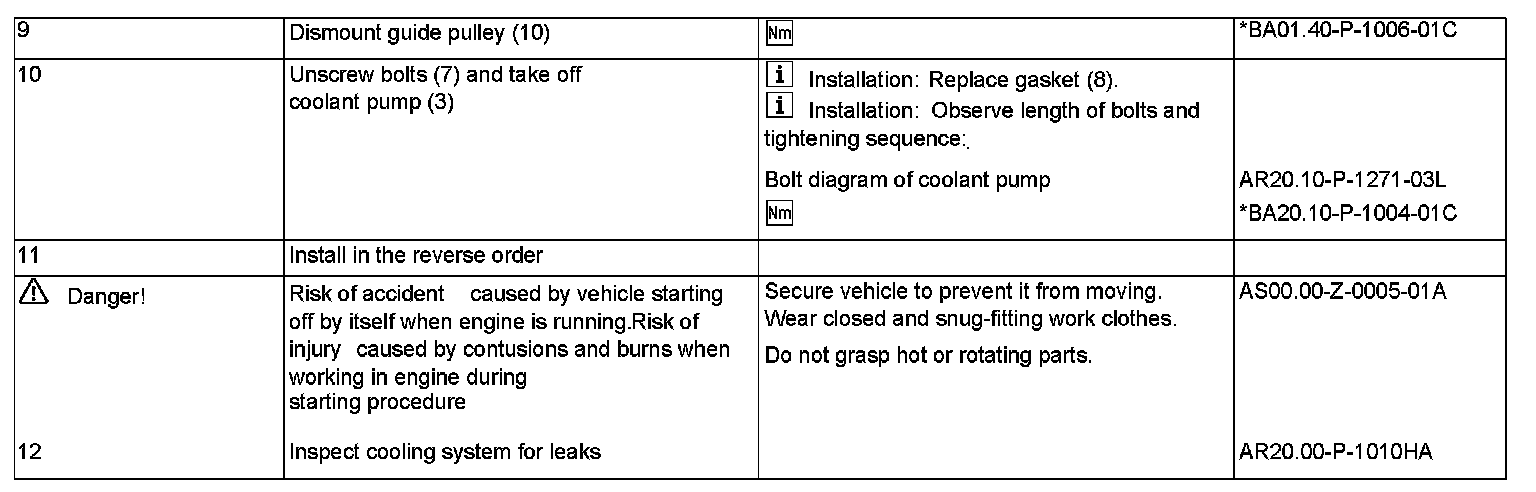

AR20.10-P-1271MC Remove/install coolant pump
