FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AP18.00-P-0101H Engine Oil and Filter Change

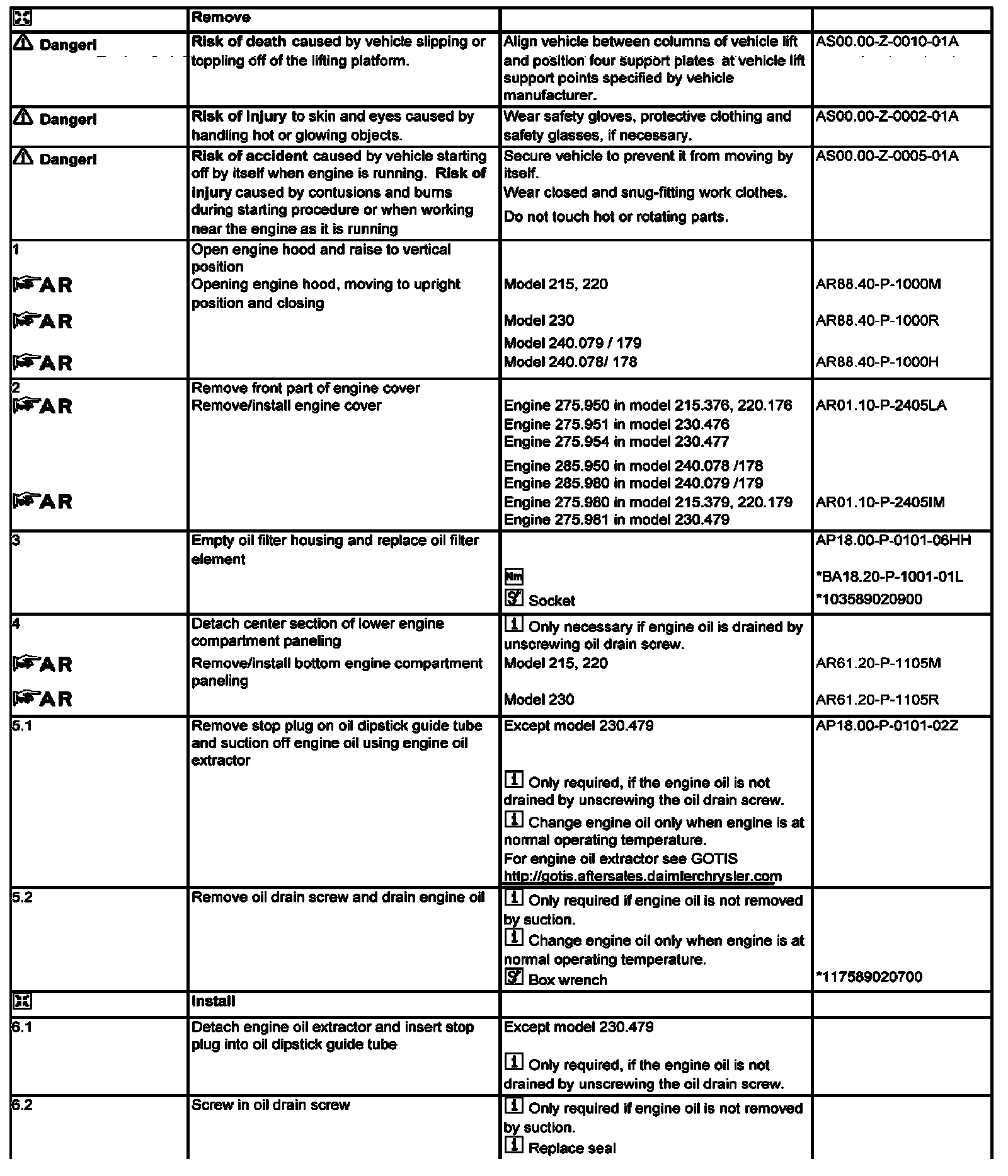

Steps 1 - 6.2:

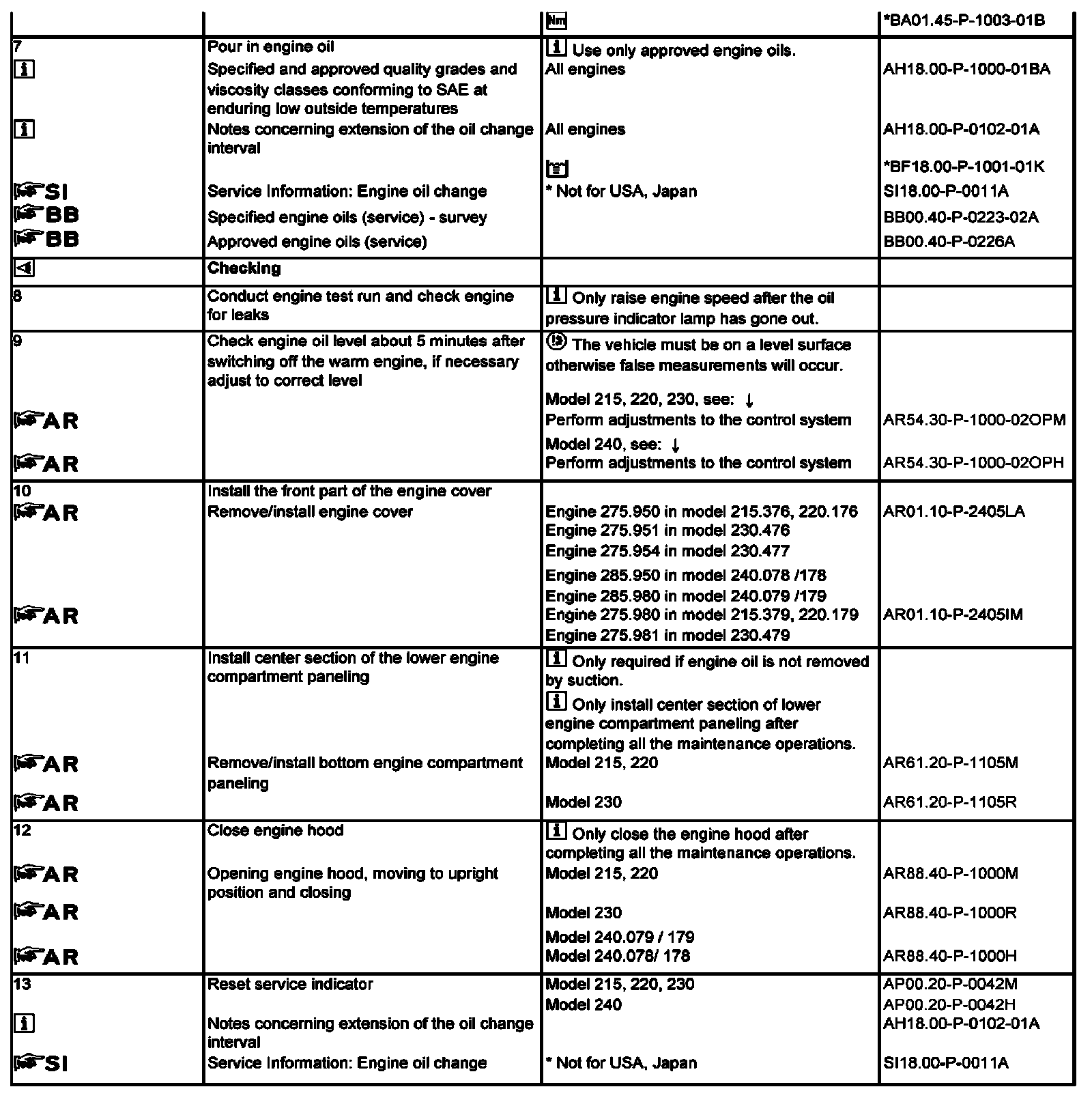

Steps 7 - 13:

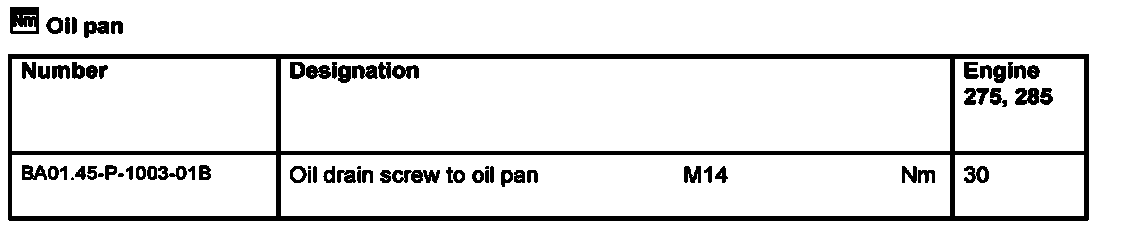

Oil Pan:
Oil Filter:

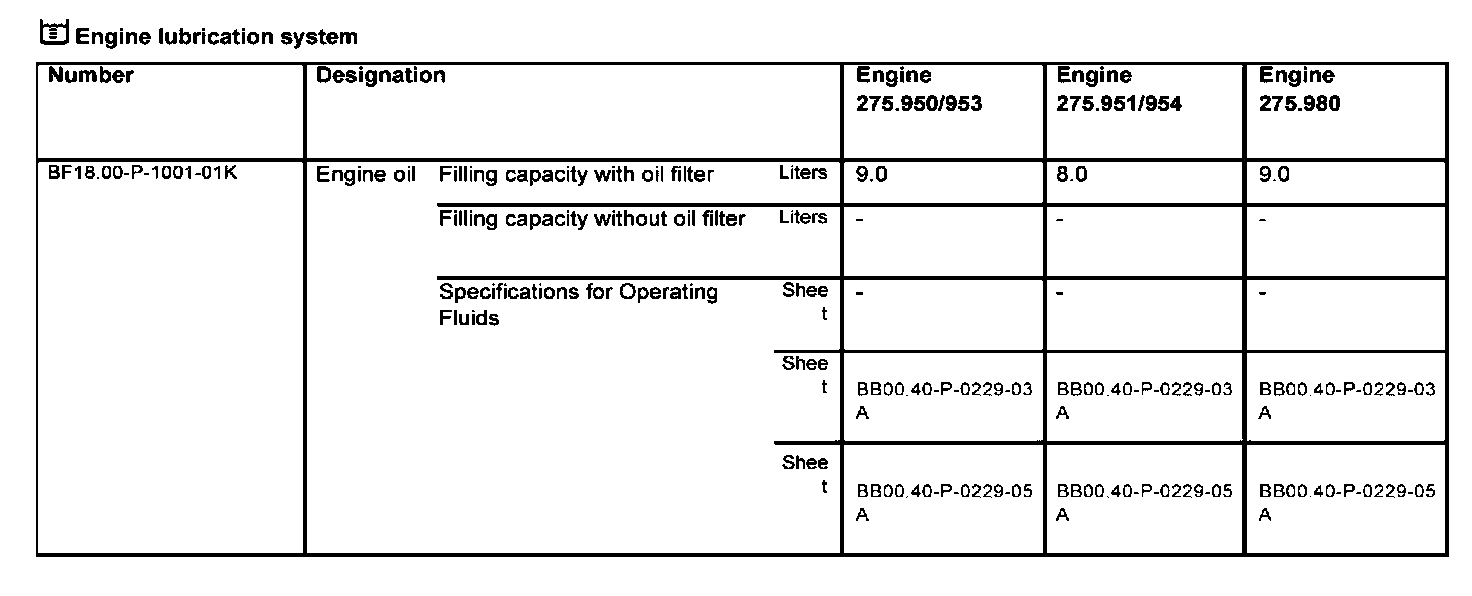

Engine Lubrication System:

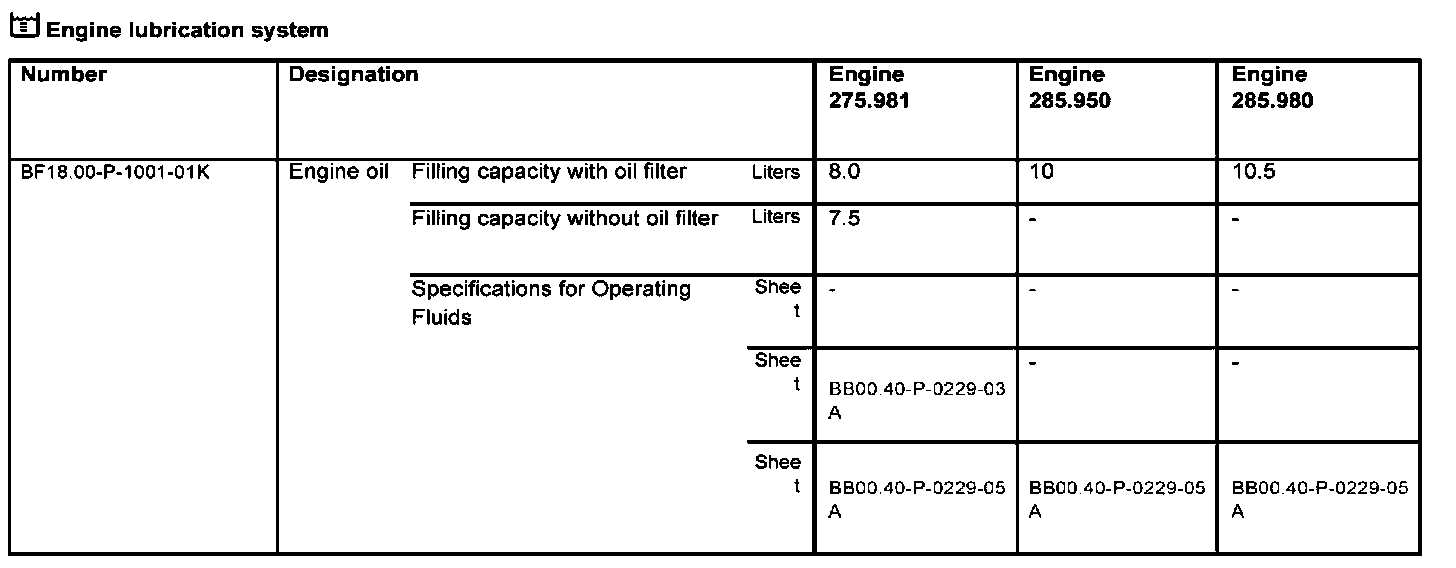

Engine Lubrication System:

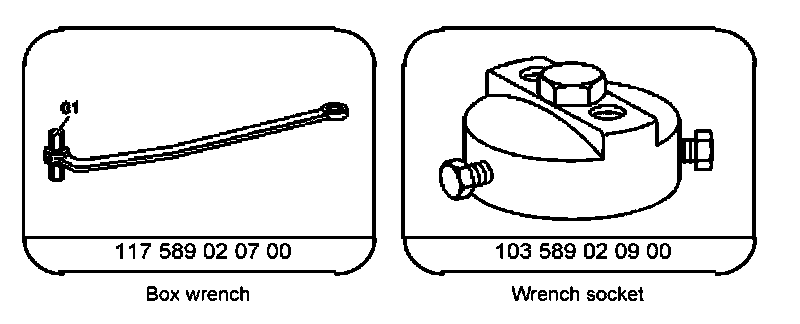

Special Tools:
