Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pump >> Engine Oil Pressure >> Specifications >> Pressure, Vacuum and Temperature Specifications

Pressure, Vacuum and Temperature Specifications

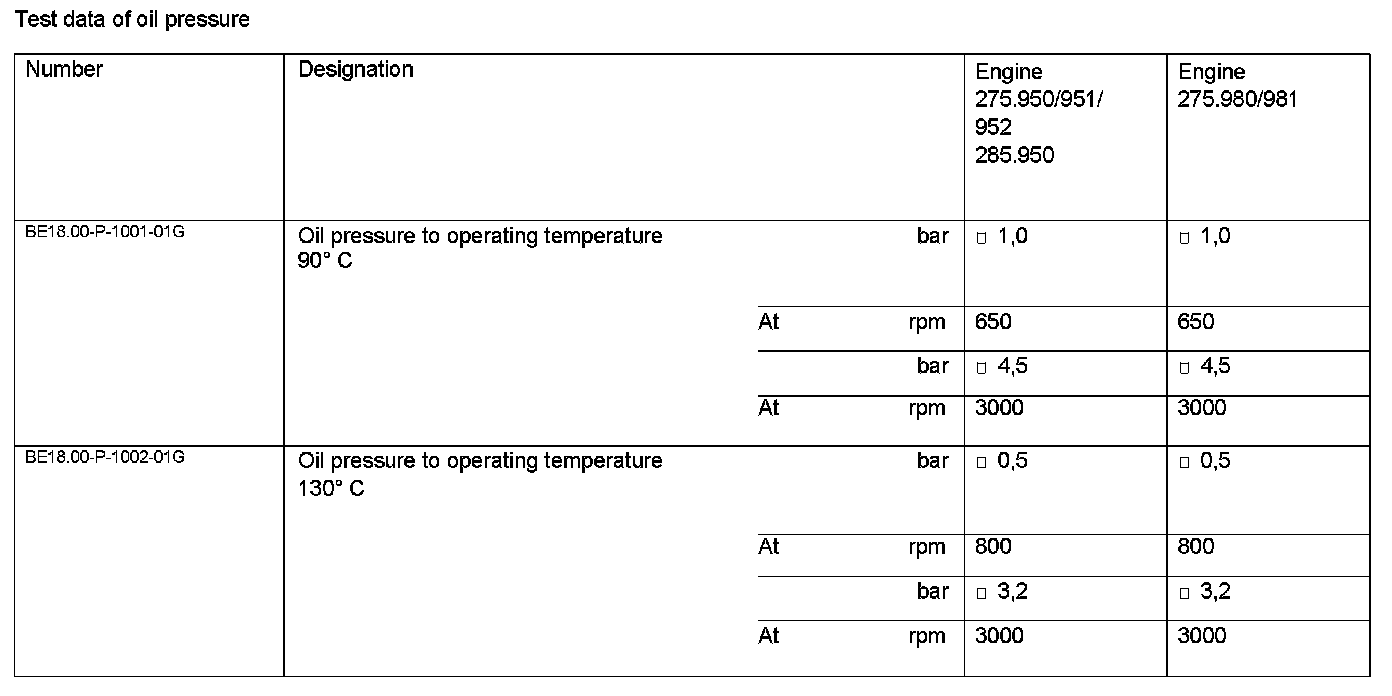

BE18.00-P-1000-01G Oil pressure
