Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pan >> Service and Repair >> AR01.45-P-7500RA Remove/Install Oil Pan

AR01.45-P-7500RA Remove/Install Oil Pan

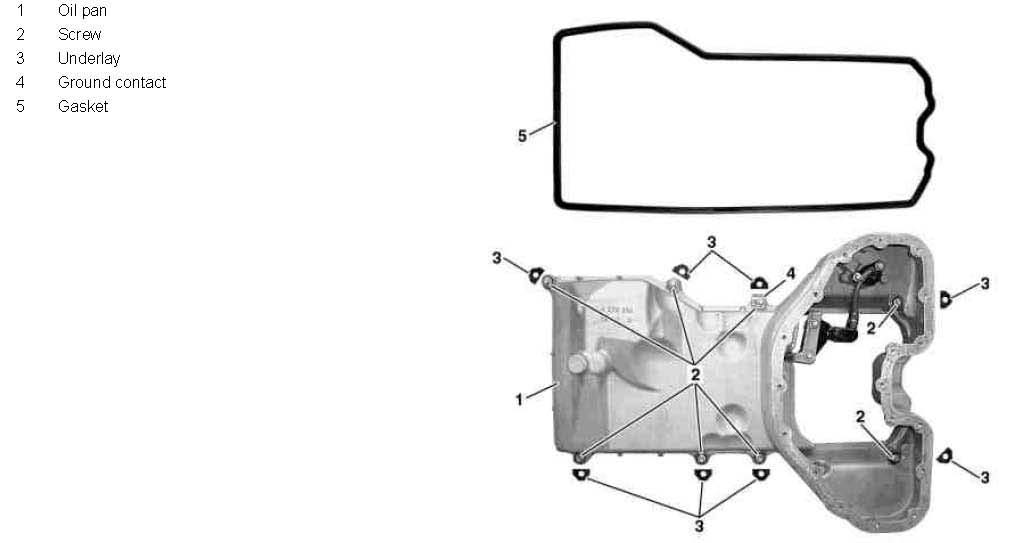

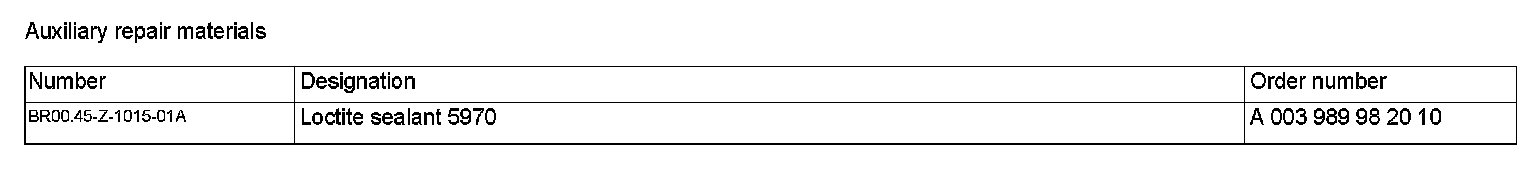

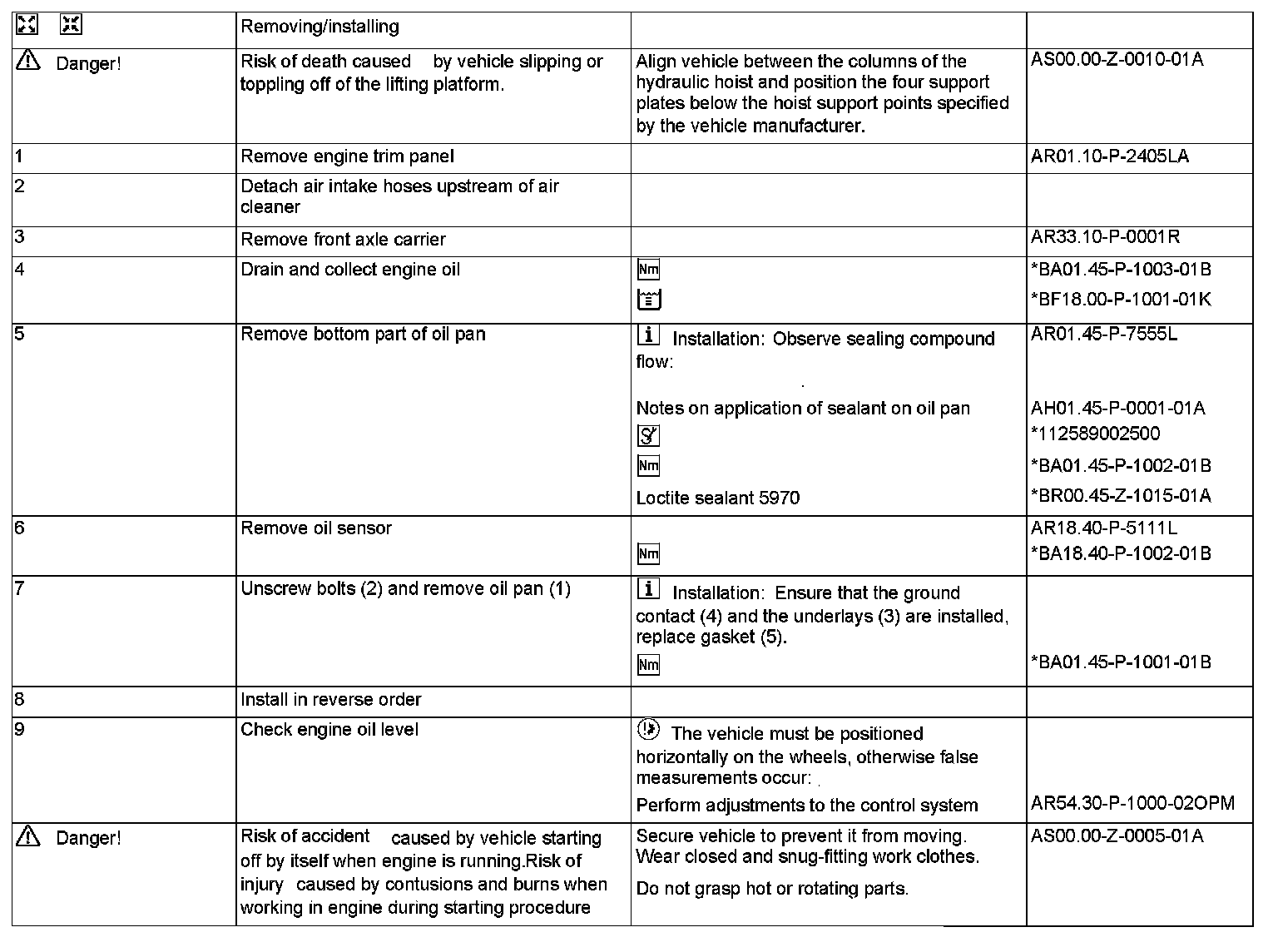

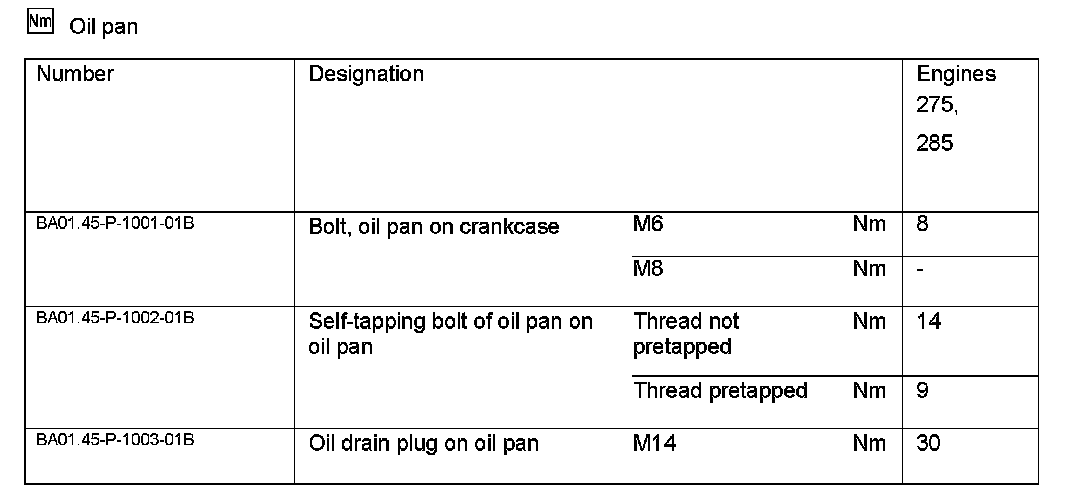

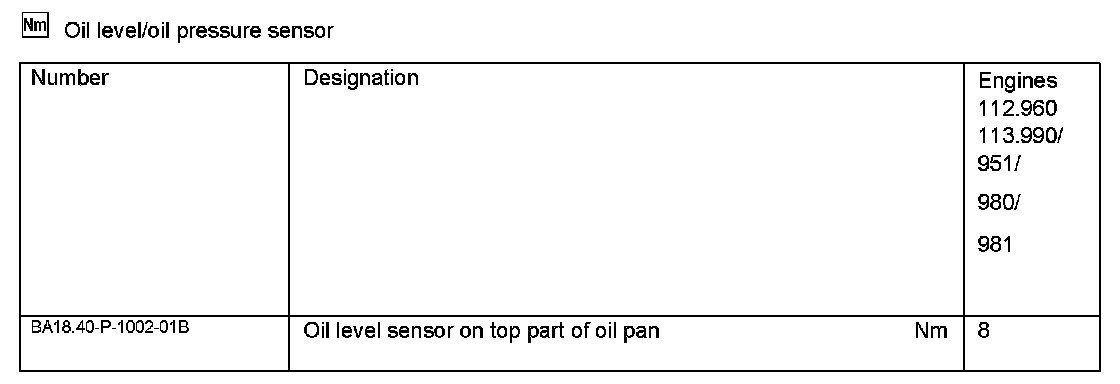

AR01.45-P-7500RA Removing/installing oil pan
