AH01.40-P-1000-03A Information on Application of Sealant to Crankcase Bottom Section

AH01.40-P-1000-03A Information on application of sealant to crankcase bottom section

Sealing agent flow:

Sealing agent flow

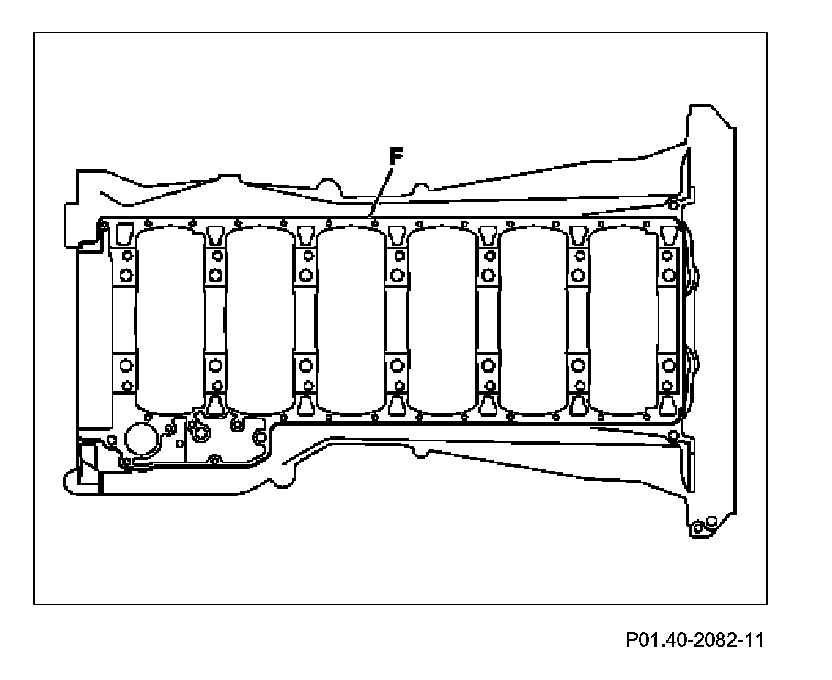

The line drawn in (F) identifies the sealing compound application.

The sealant must be applied only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm. The sealing compound must be applied within 10 min. The bead should not be spread. Only the approved silicone sealant may be used.
