AR18.30-P-1000RBS Remove/Install Engine Oil Cooler



AR18.30-P-1000RBS Remove/install engine oil cooler
- with CODE (P99) Special model "AMG Black Series"


Component Identification:




Modification notes:

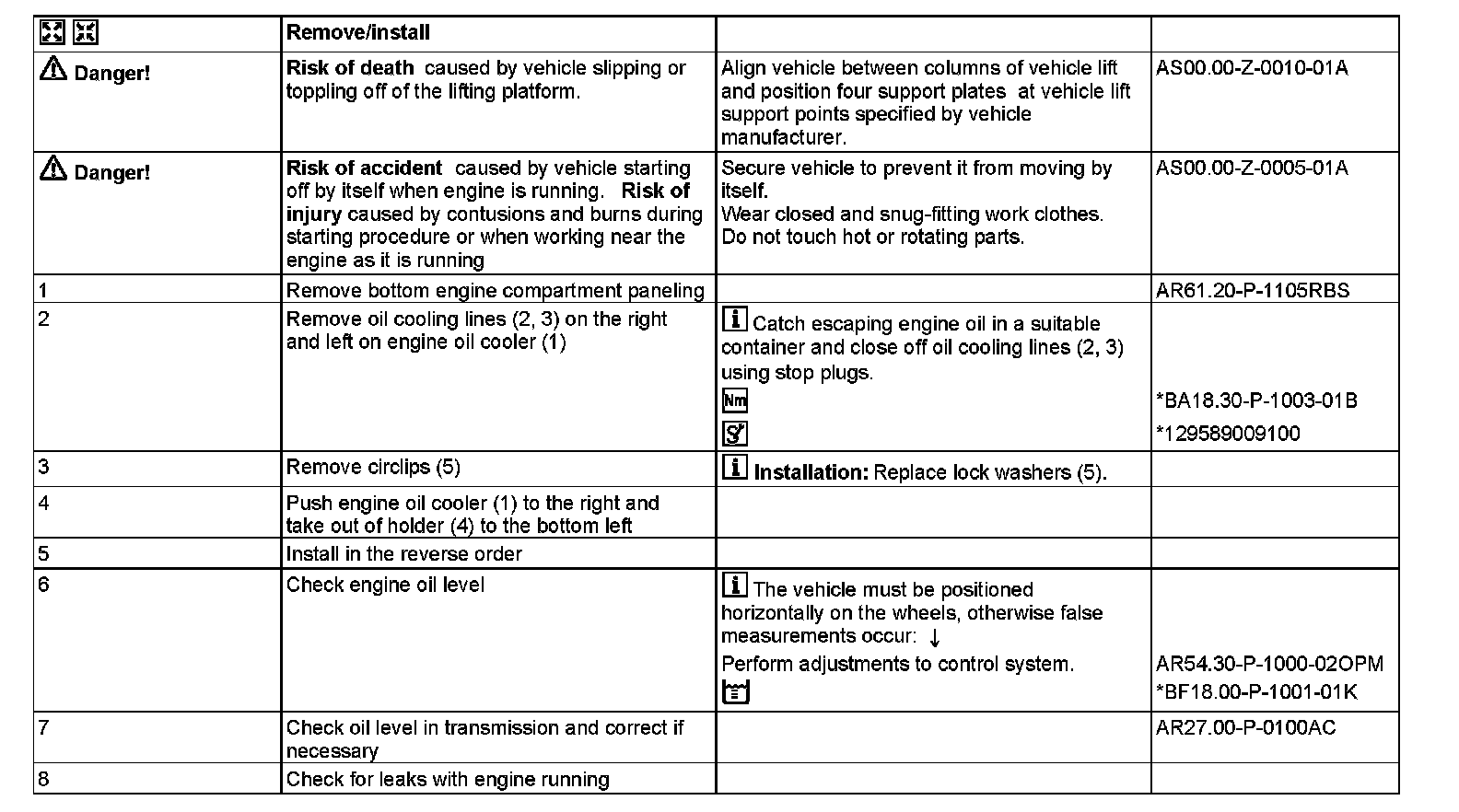

Steps 1-8:

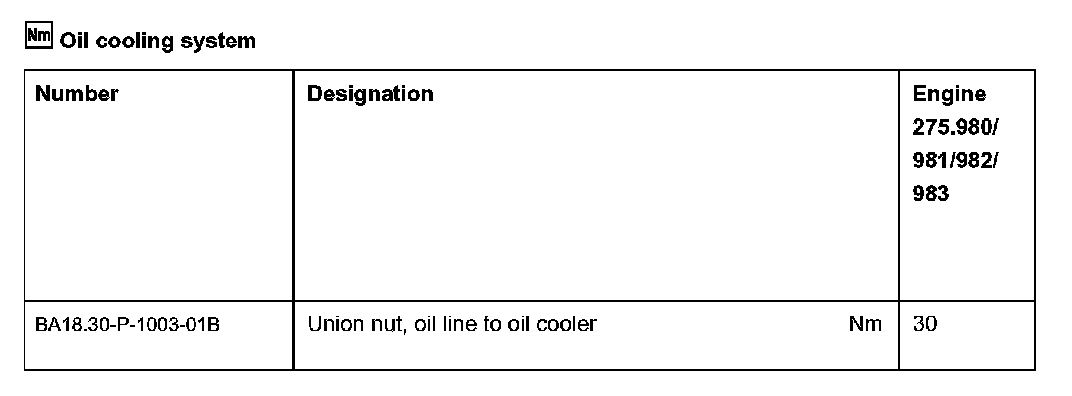

Oil cooling system:

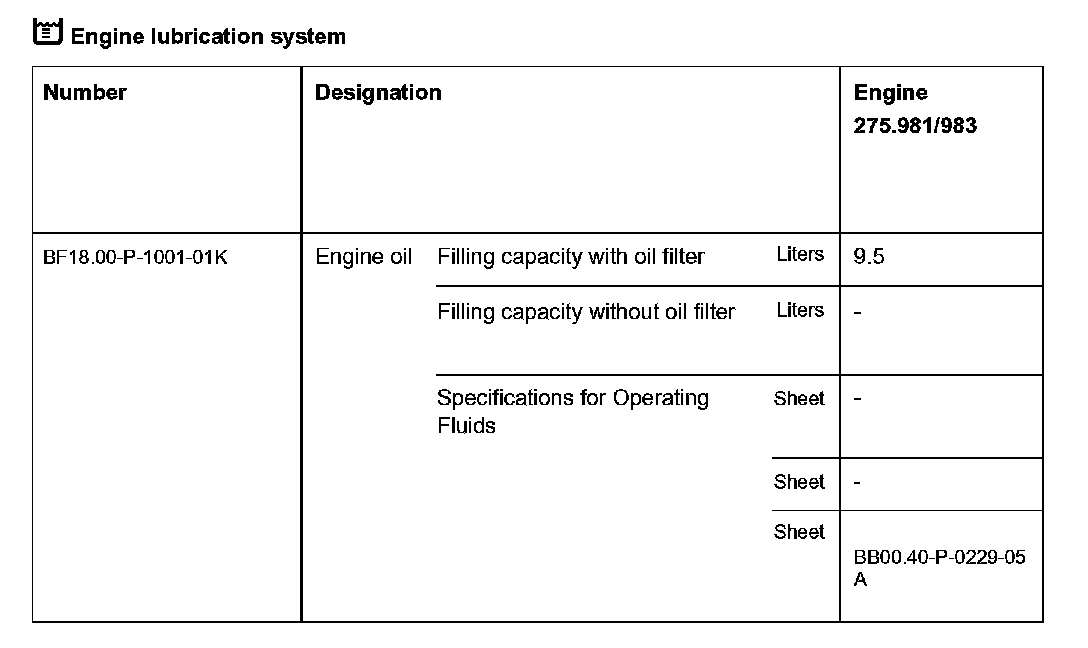

Engine lubrication system:

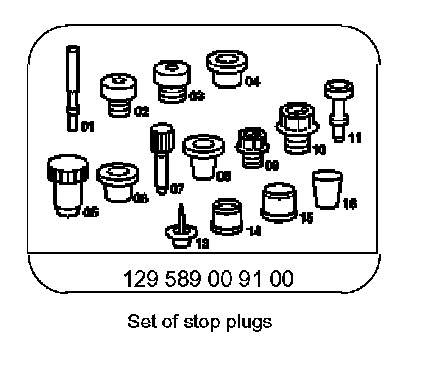

Special Tools:
