Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Cooler >> Service and Repair >> AR18.30-P-1000R Remove/Install Engine Oil Cooler

AR18.30-P-1000R Remove/Install Engine Oil Cooler



- except MODEL (P99) Special model "AMG Black Series"

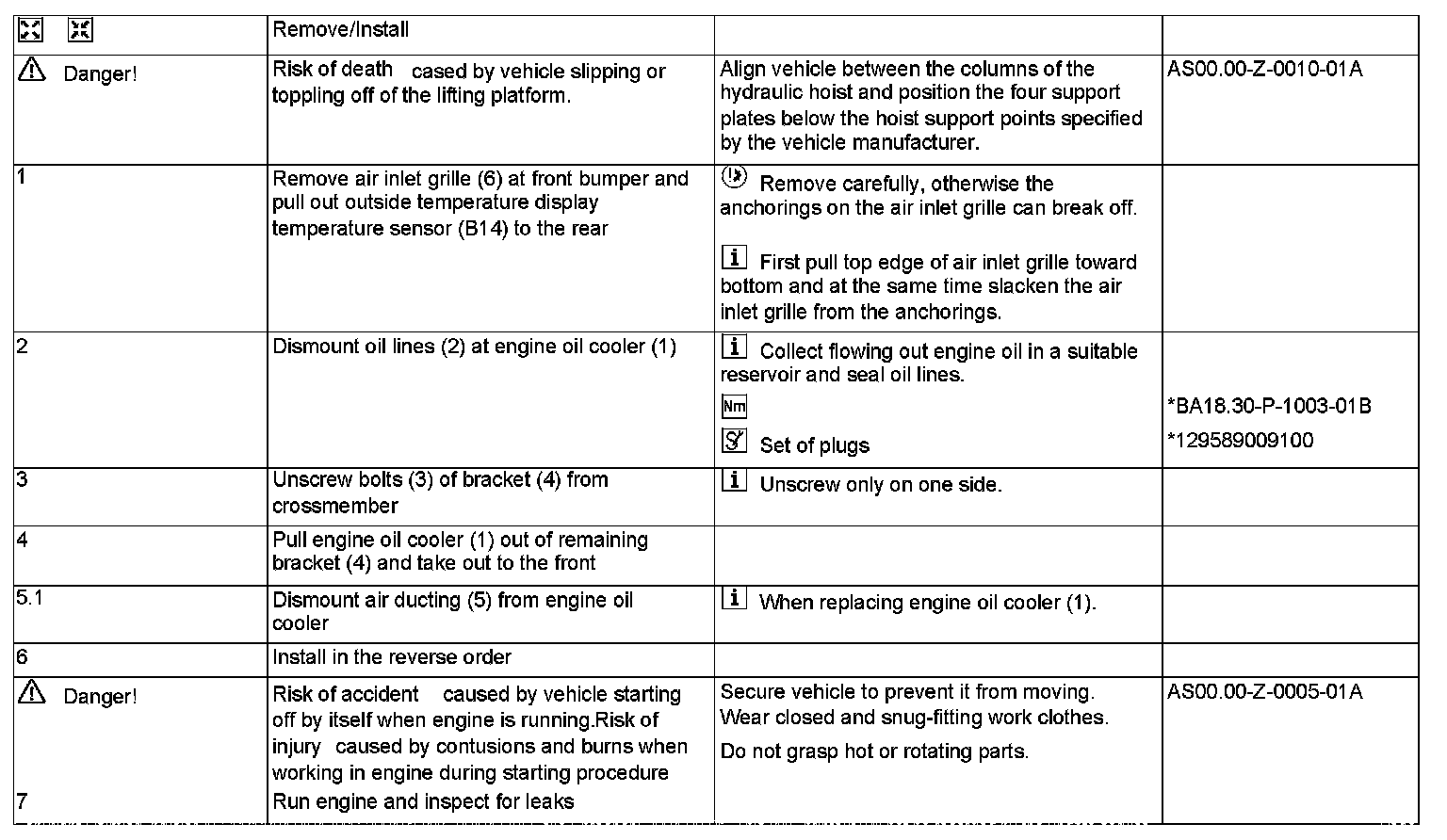

AR18.30-P-1000R Remove/install engine oil cooler
