SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Drive Belts, Mounts, Brackets and Accessories
>>
Drive Belt Tensioner
>>
Service and Repair
>>

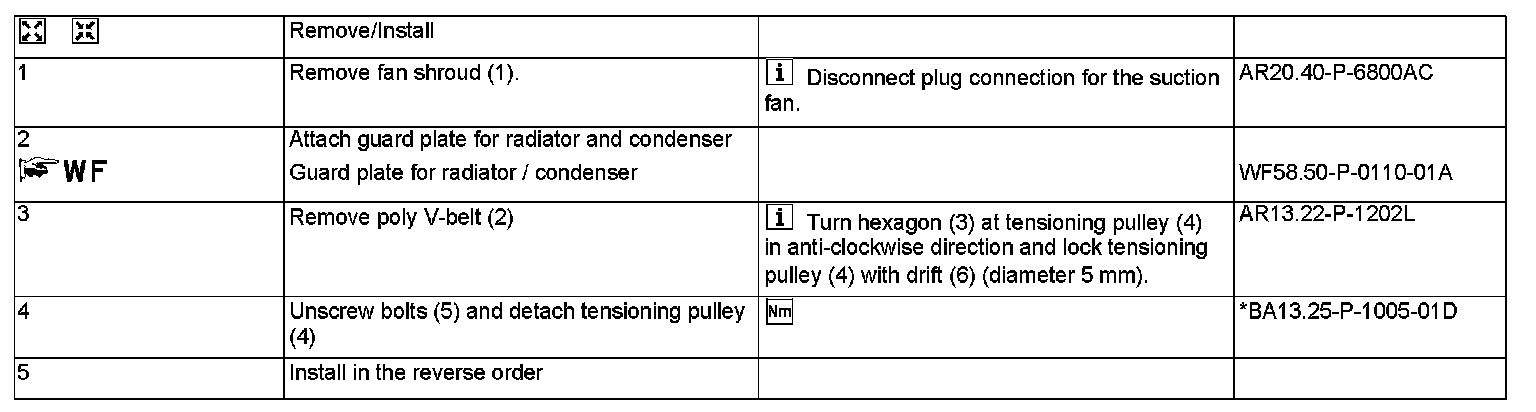

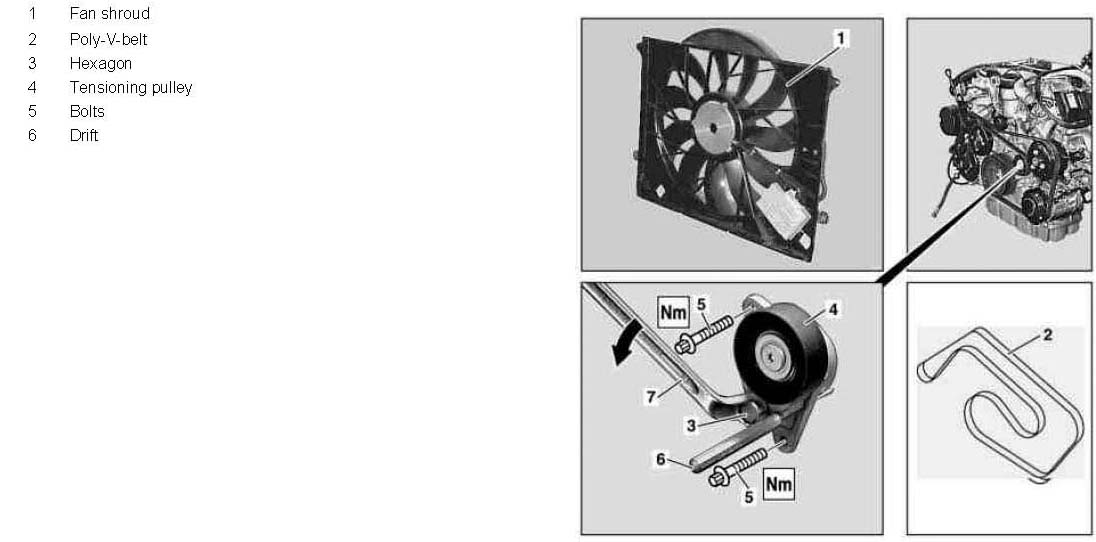

AR13.25-P-3200RR Remove/Install Poly V-Belt Tensioning Device
AR13.25-P-3200RR Remove/Install Poly V-Belt Tensioning Device
AR13.25-P-3200RR Remove/install poly V-belt tensioning device
