AR01.30-P-5800M Remove/Install Cylinder Head

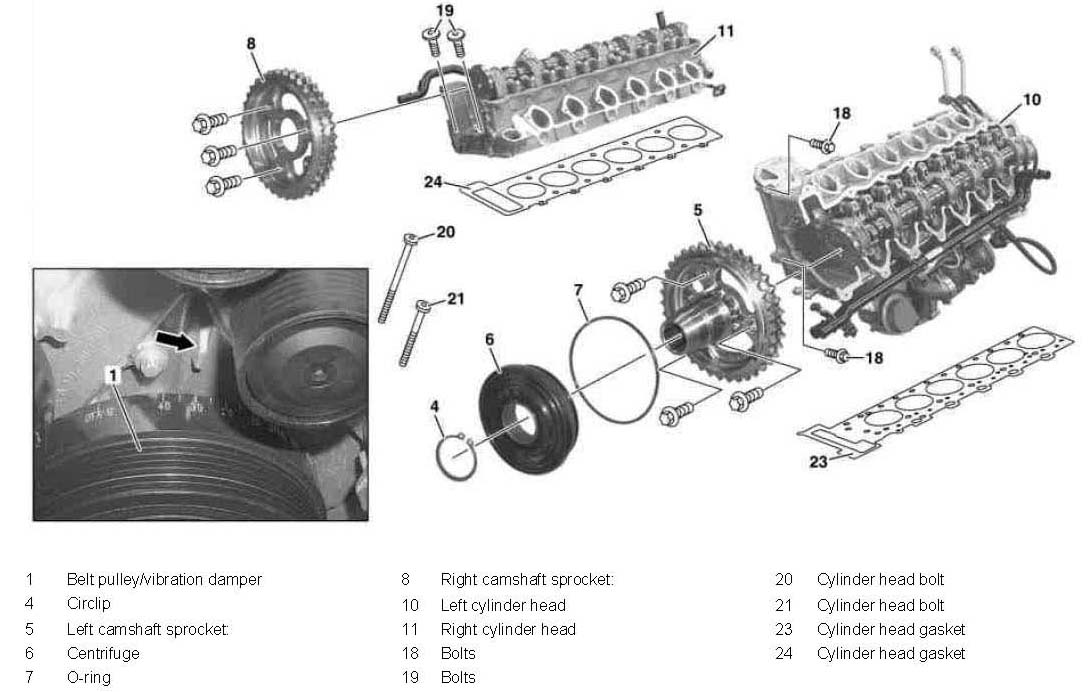

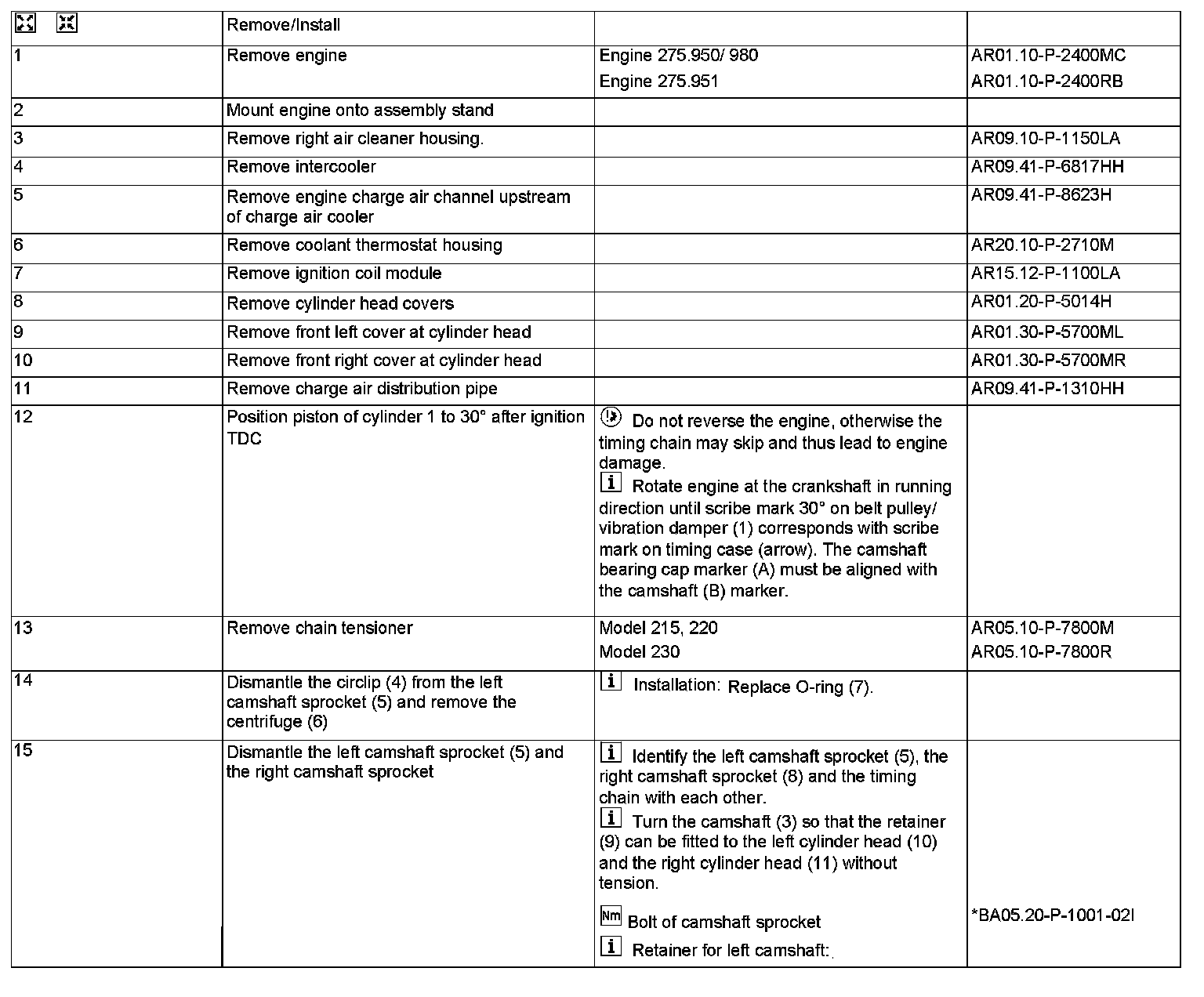

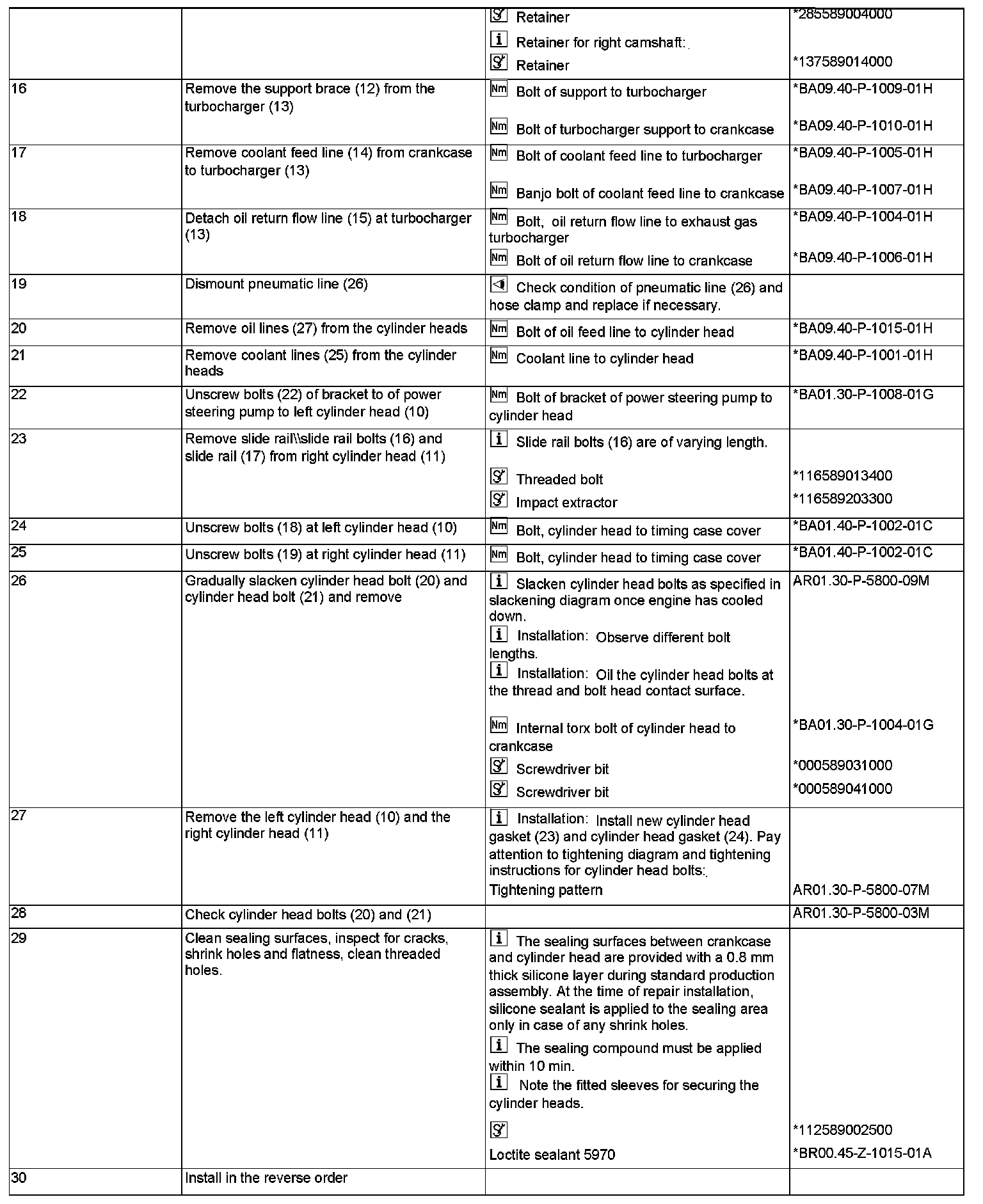

AR01.30-P-5800M Remove/install cylinder head

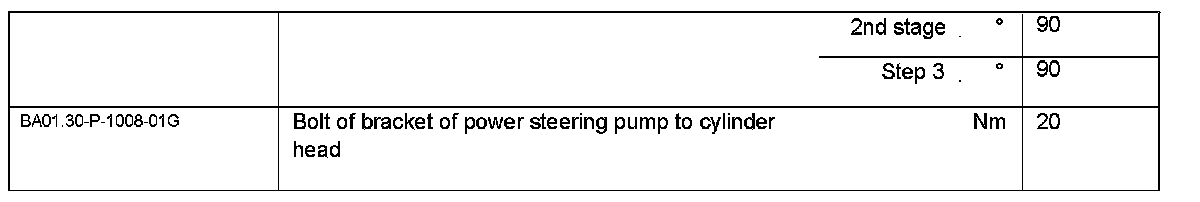

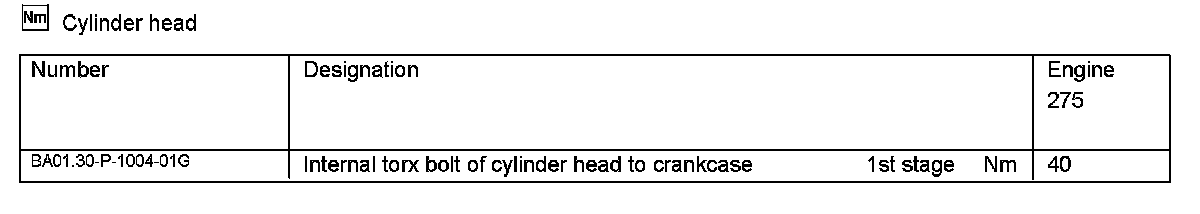

Nm Cylinder head

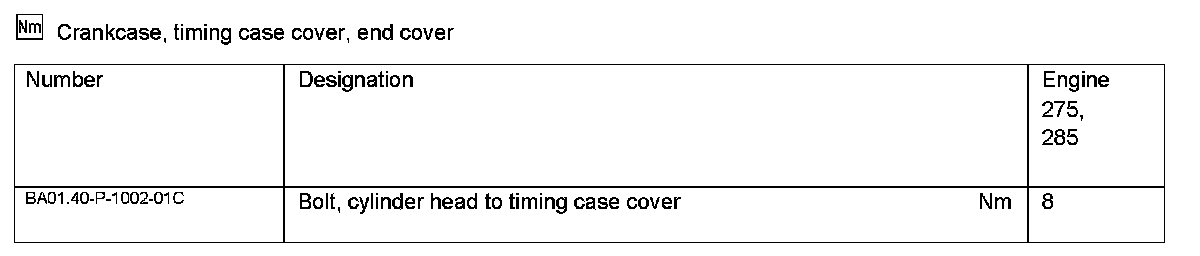

Nm Crankcase, timing case cover, end cover

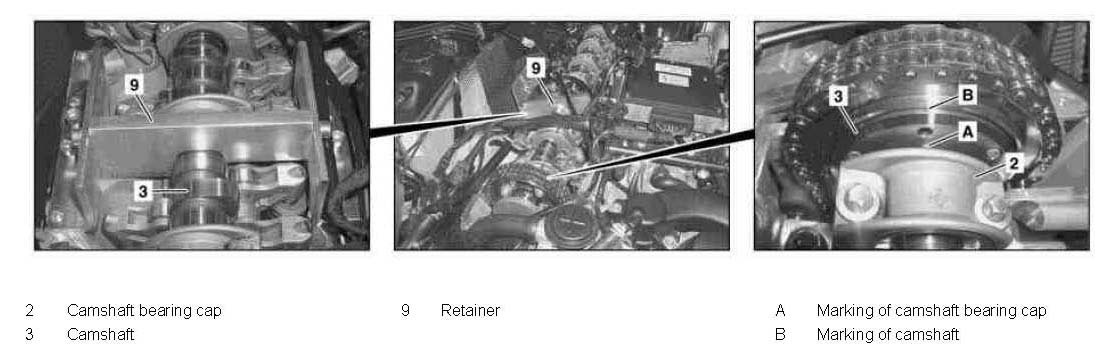

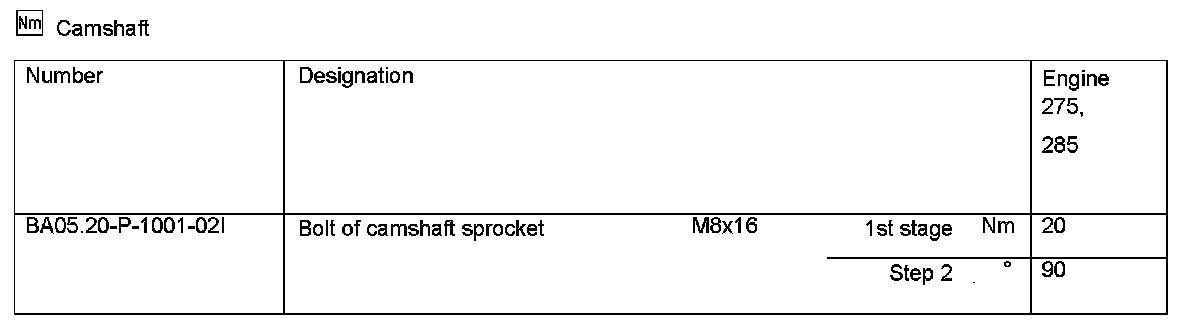

Nm Camshaft

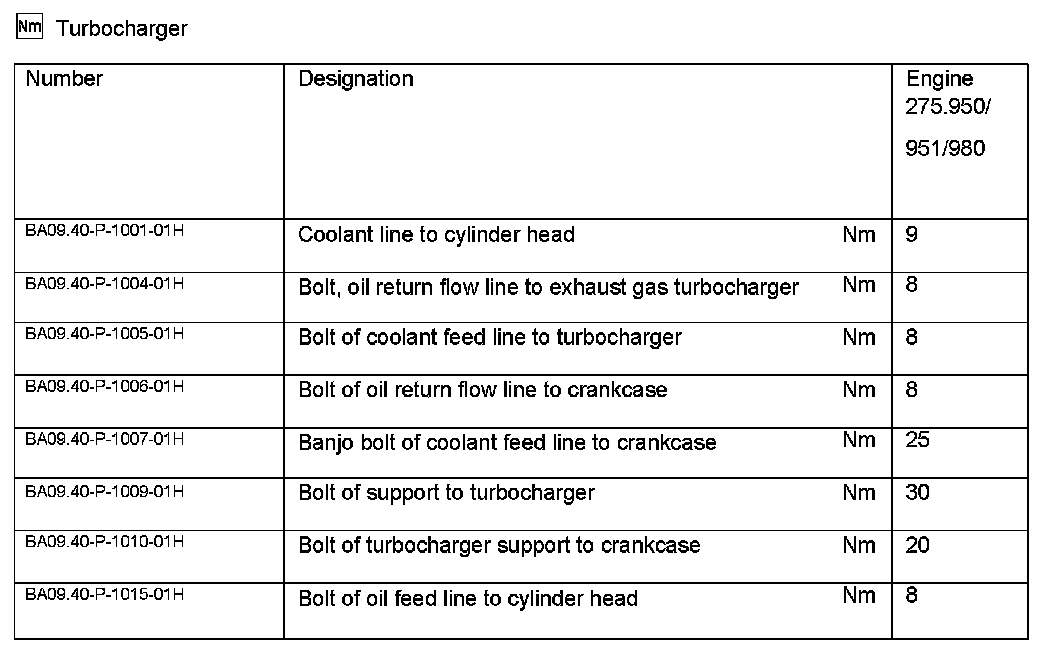

Nm Turbocharger
