AR01.40-P-8913R Remove/Install End Cover



AR01.40-P-8913R Remove/install end cover

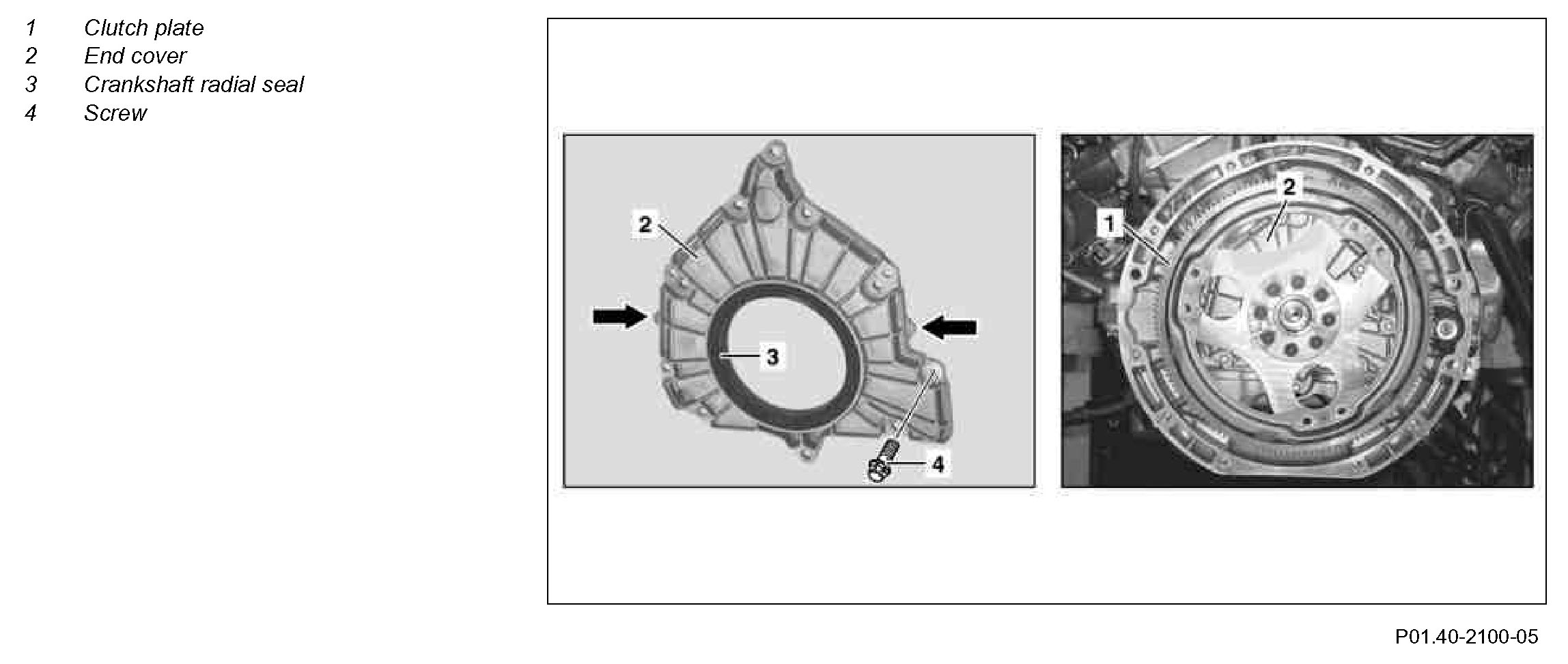

Component Identification:

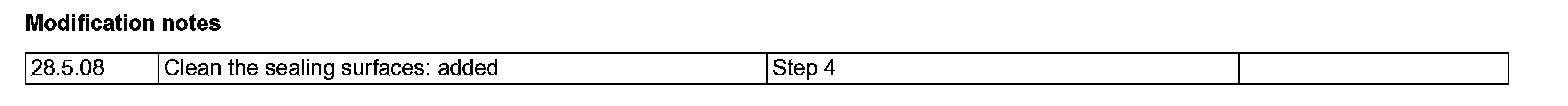

Modification notes:

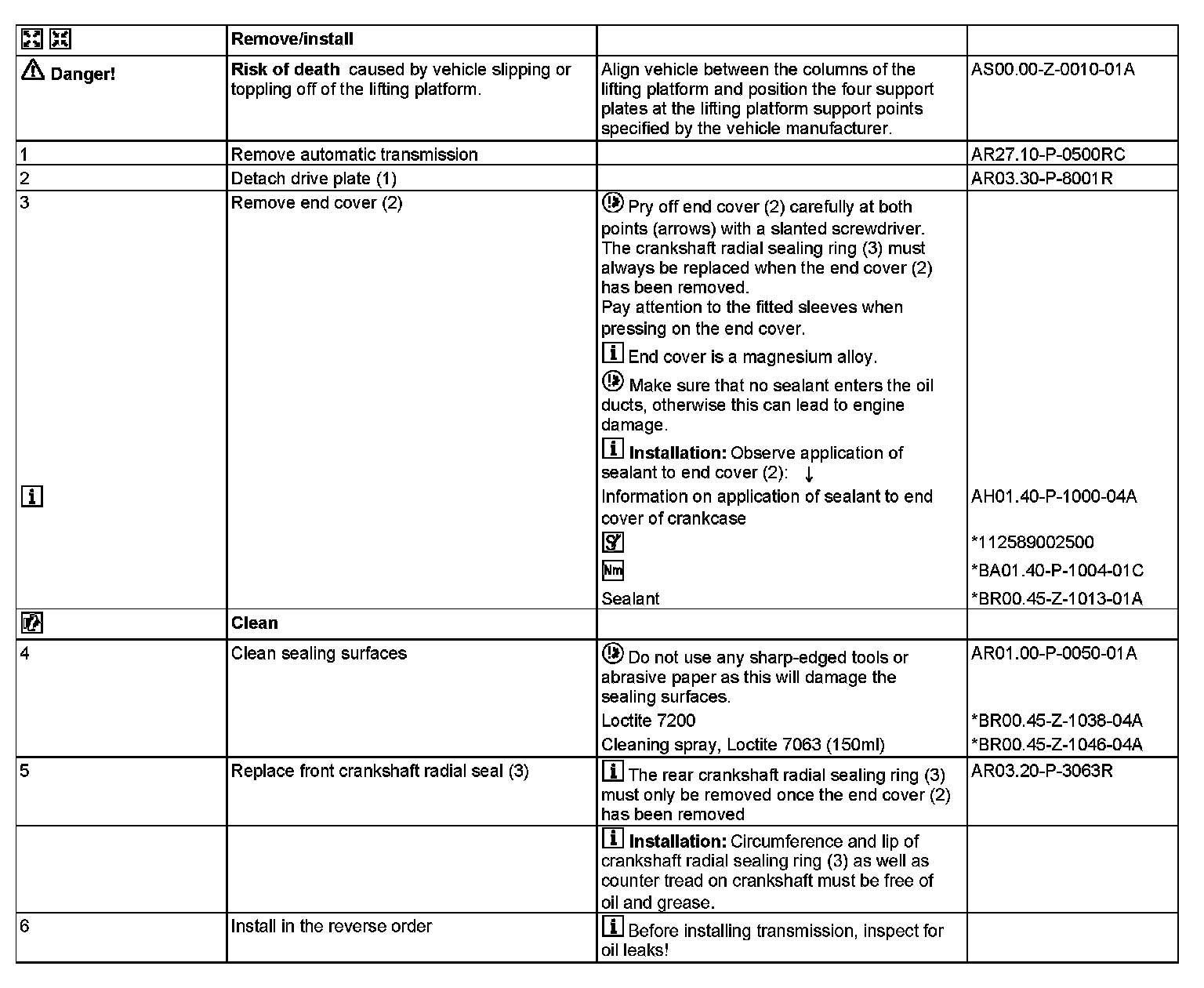

Steps 1-6:




Crankcase, timing case cover, end cover:

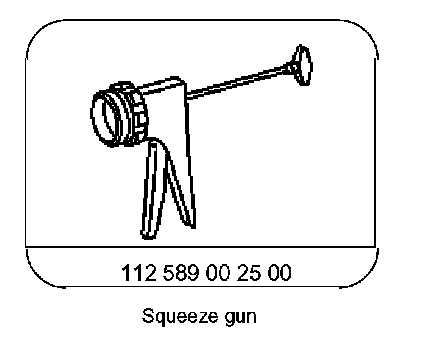

Special Tools:




Repair materials:
