AR01.40-P-8913MC Remove/Install End Cover

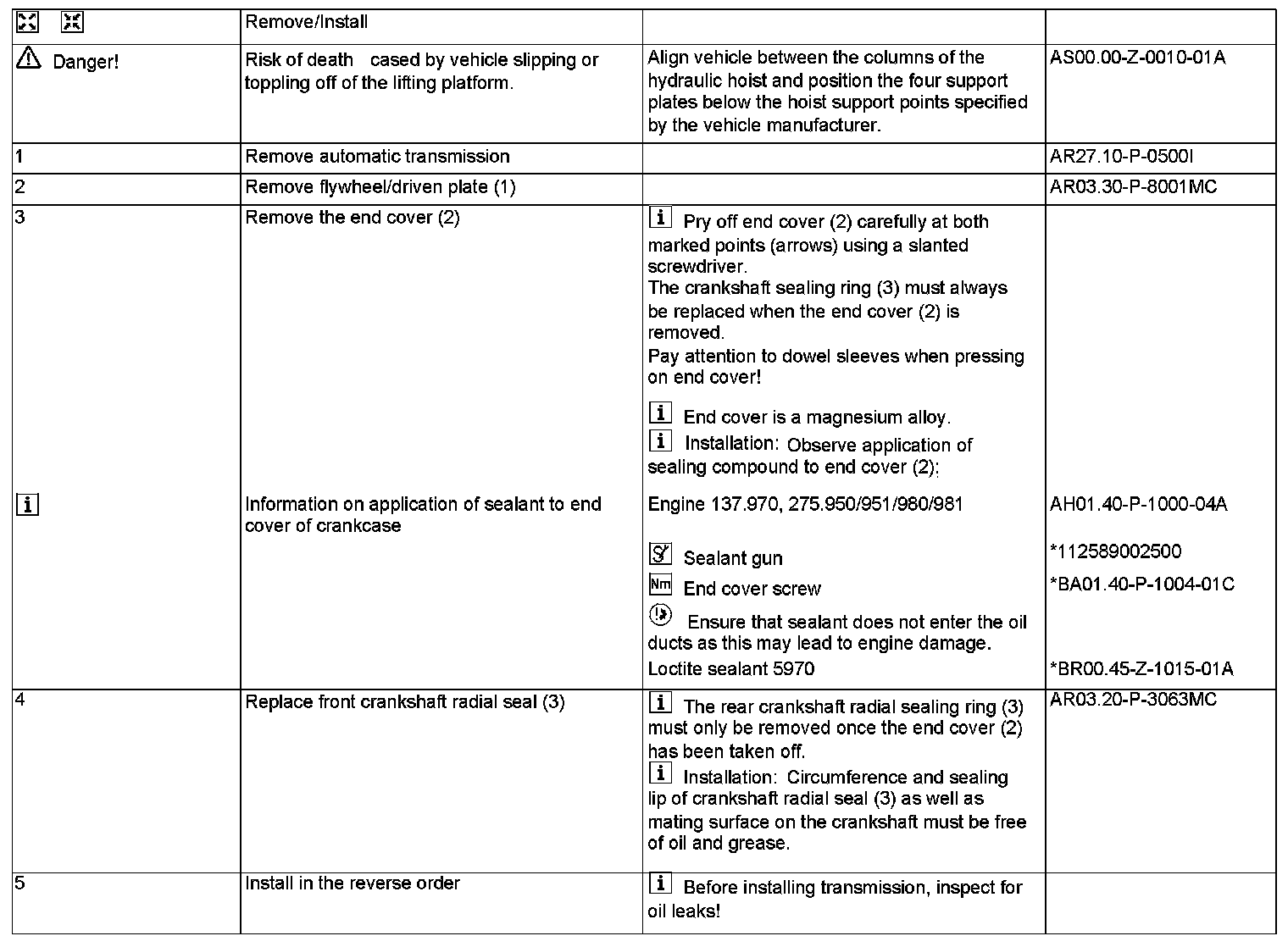

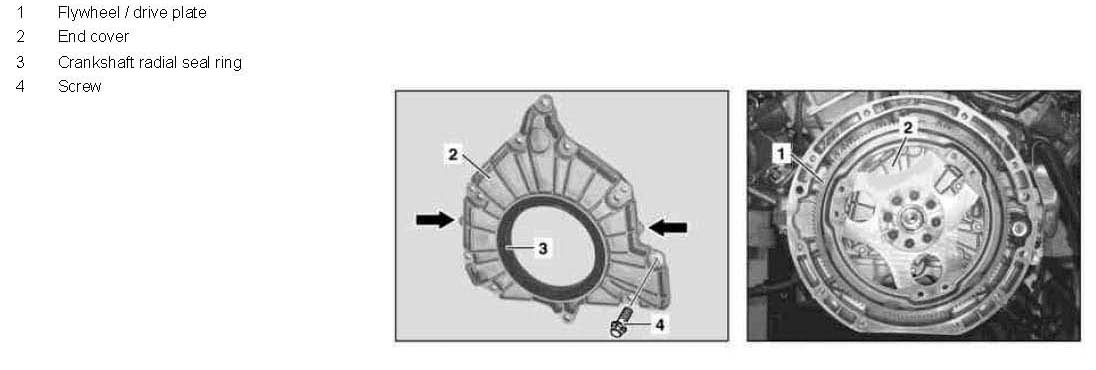

AR01.40-P-8913MC Remove/install end cover

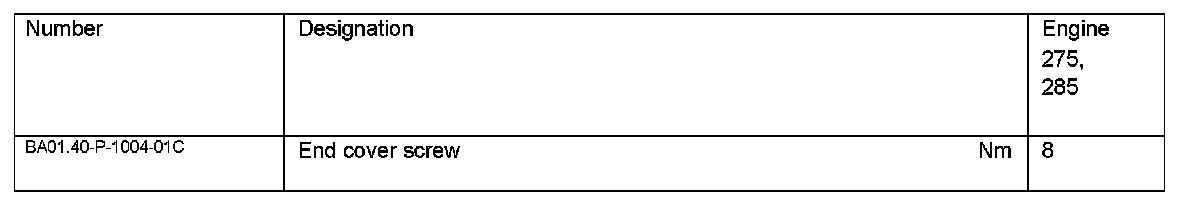

Nm Crankcase, timing case cover, end cover

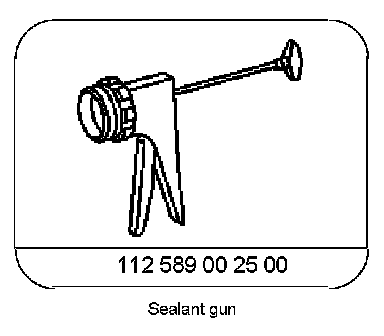

Sealant gun

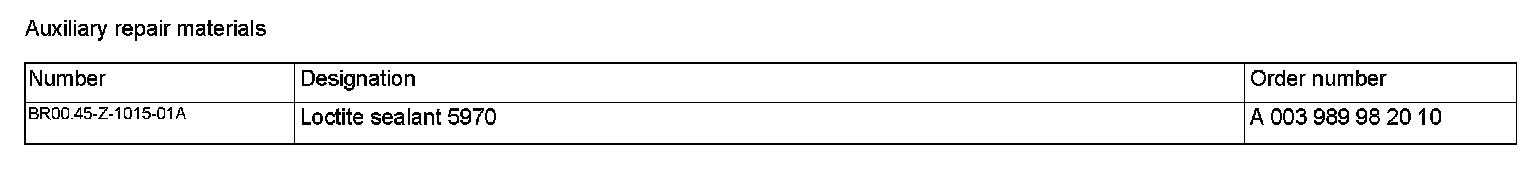

Auxiliary repair materials
