Crankshaft Seal Retainer: Service Precautions

AH01.40-P-1000-04A Information on application of sealant to end cover of crankcase

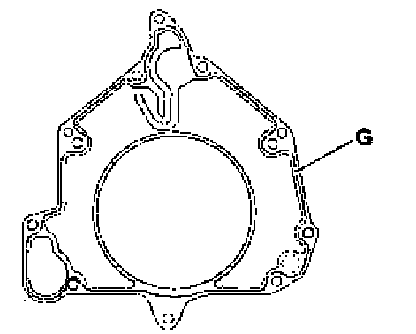

The line (G) identifies the sealant run. m The sealant must be applied only to the specified surfaces with a sealing compound bead of 2.0 mm 0.5 mm.
The sealing compound must be applied within 10 min.
The sealing compound bead must not be spread. Only the approved sealant may be used.
