Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat >> Service and Repair

Thermostat: Service and Repair

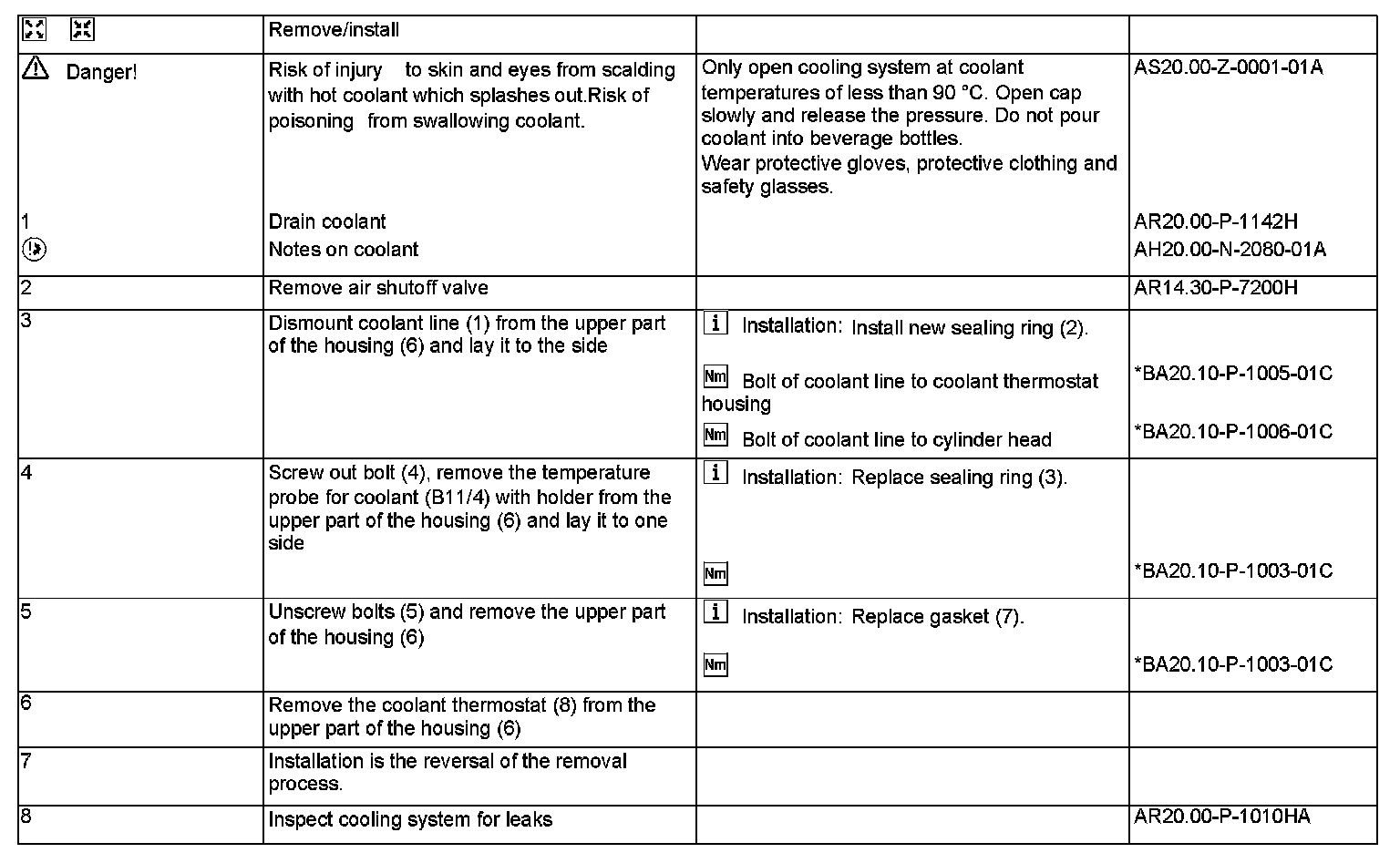

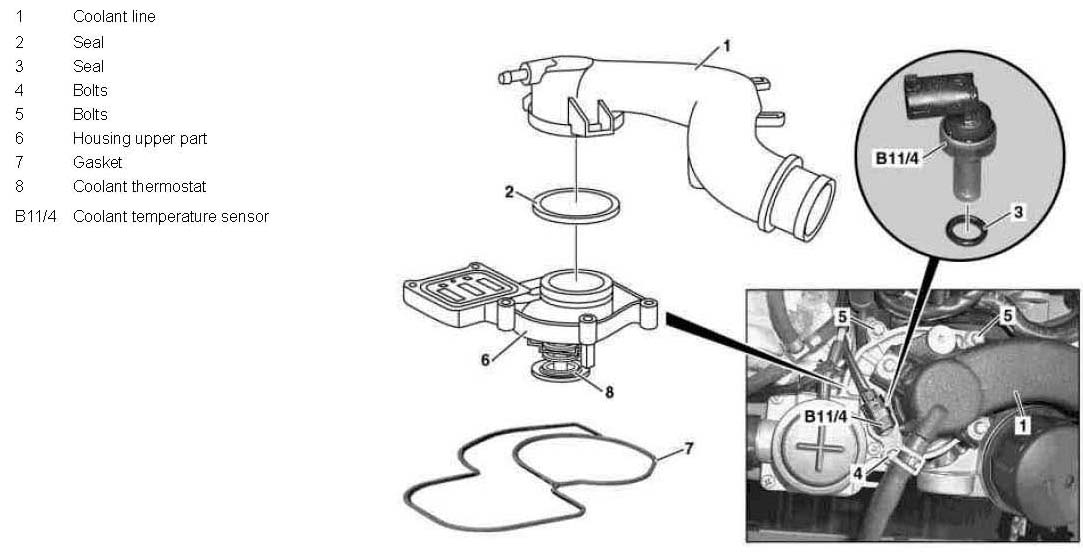

AR20.10-P-2460H Remove/install coolant thermostat
