Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat Housing >> Service and Repair

Thermostat Housing: Service and Repair

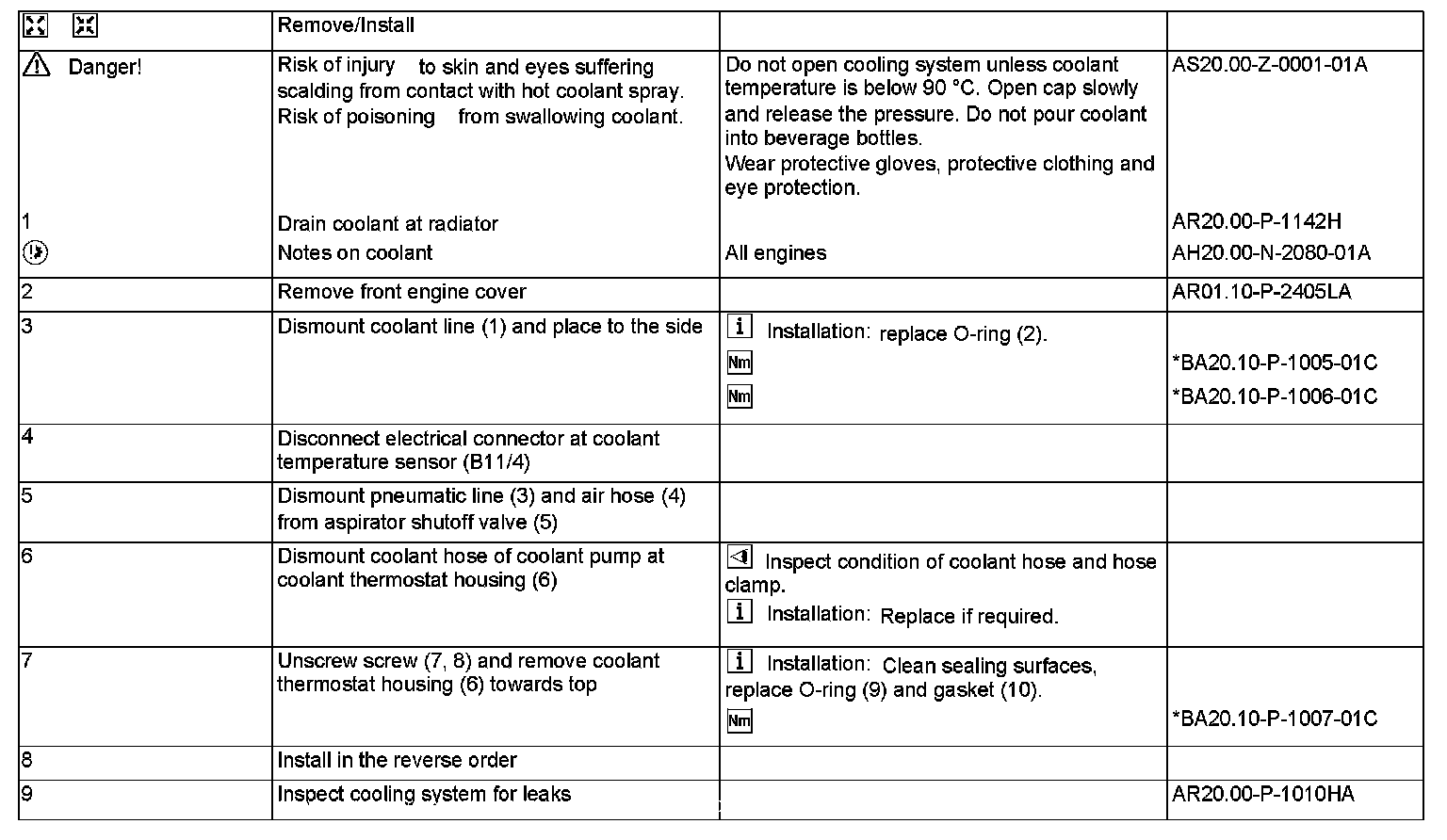

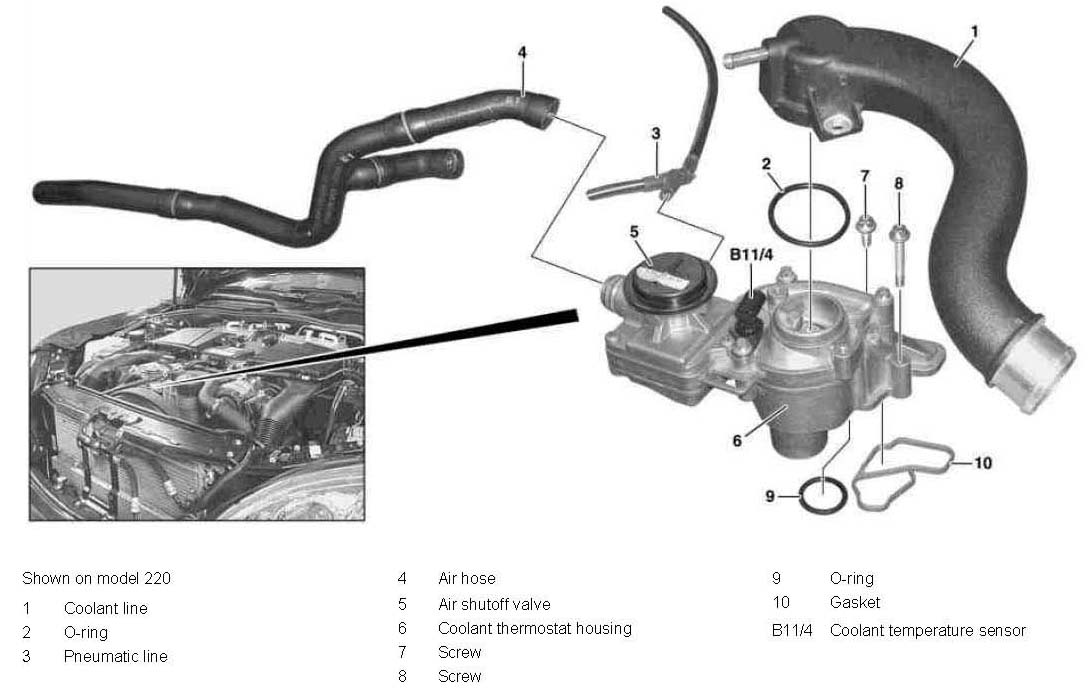

AR20.10-P-2710M Remove, install coolant thermostat housing
