SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>

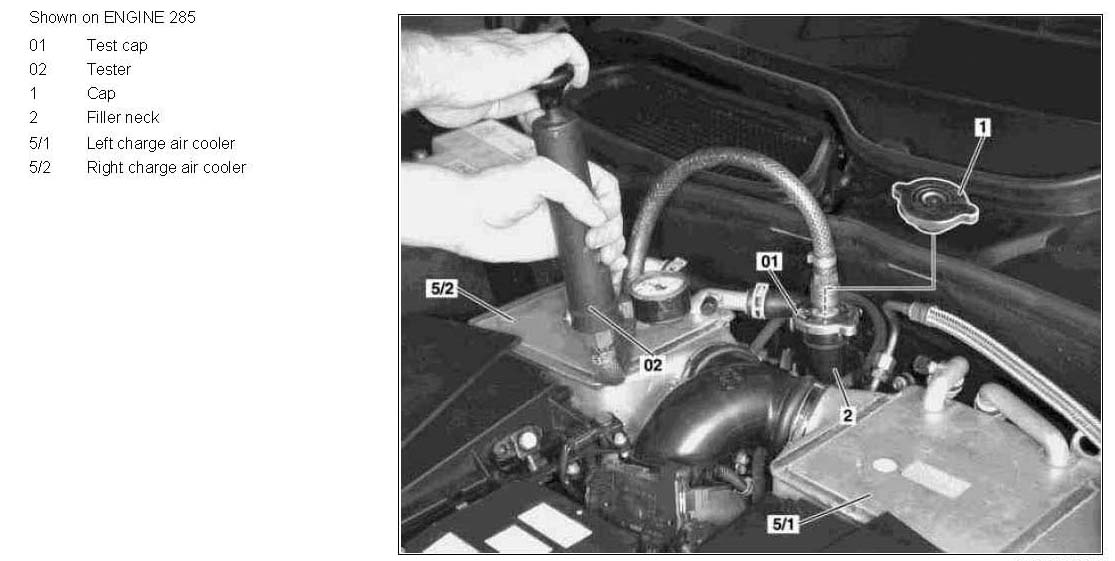

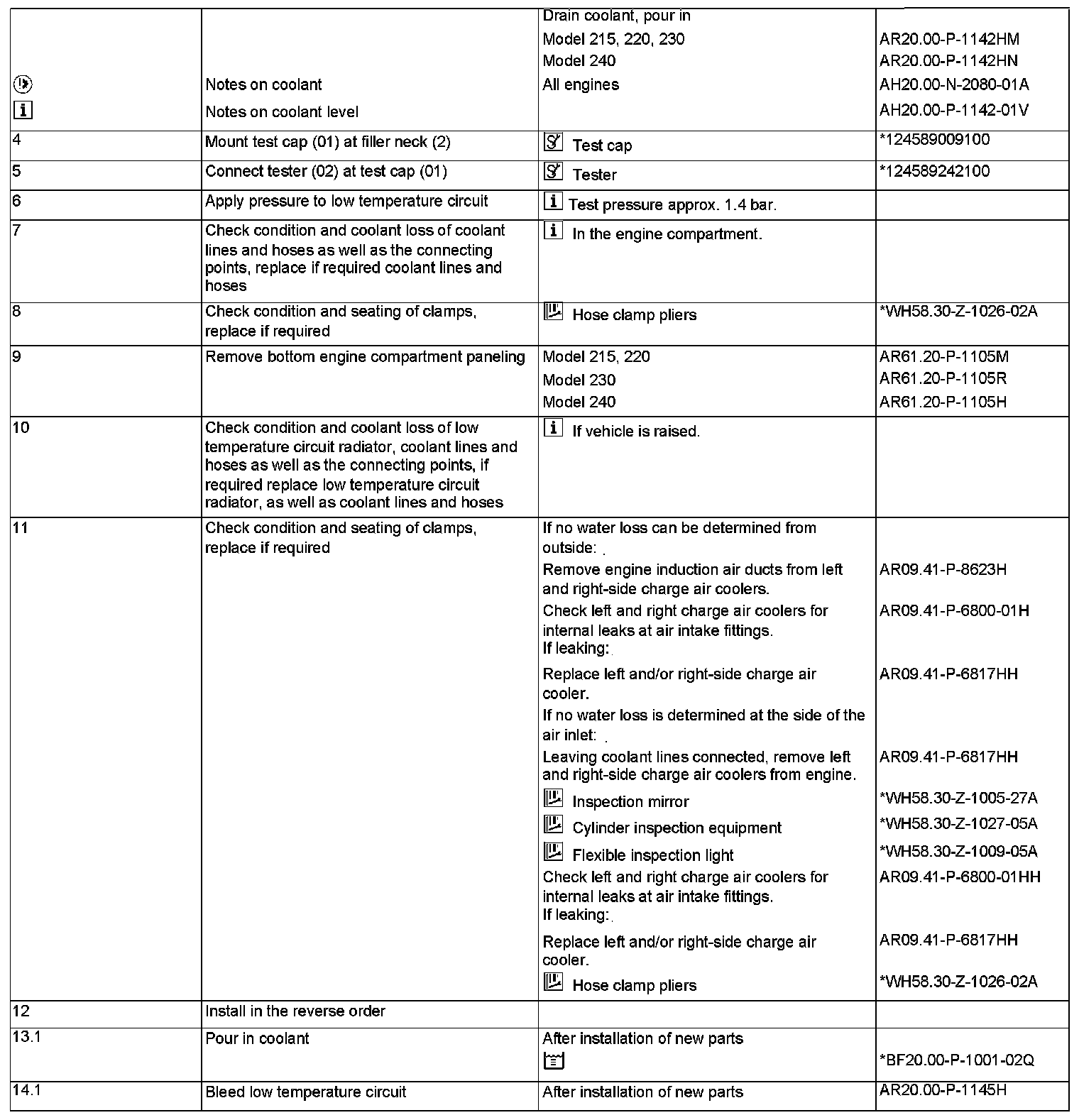

AR20.00-P-1010HN Inspect Cooling System For Leaks
AR20.00-P-1010HN Inspect Cooling System For Leaks
AR20.00-P-1010HN Inspect
cooling system
for leaks
- Low temperature circuit
