Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Specifications

Radiator: Specifications

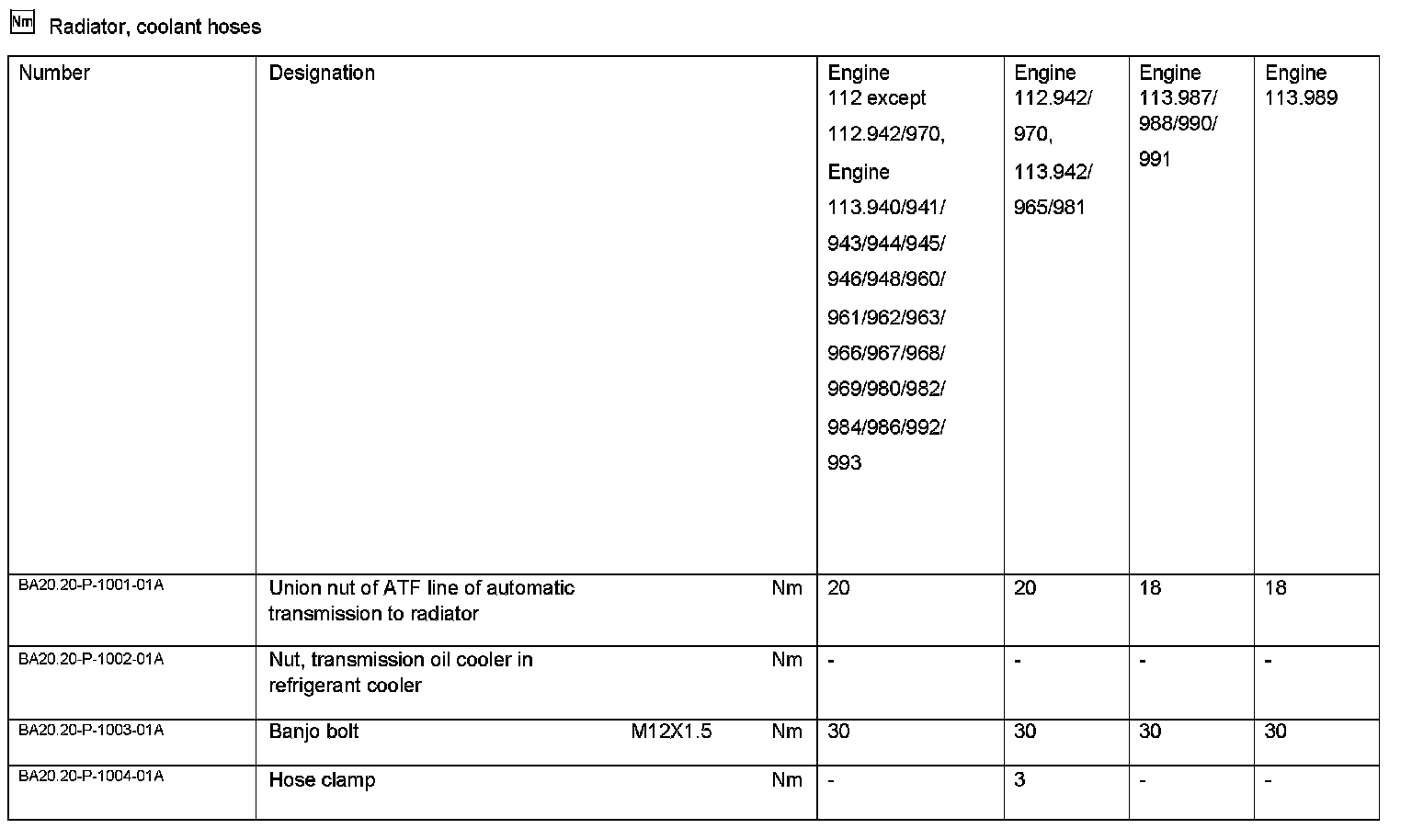

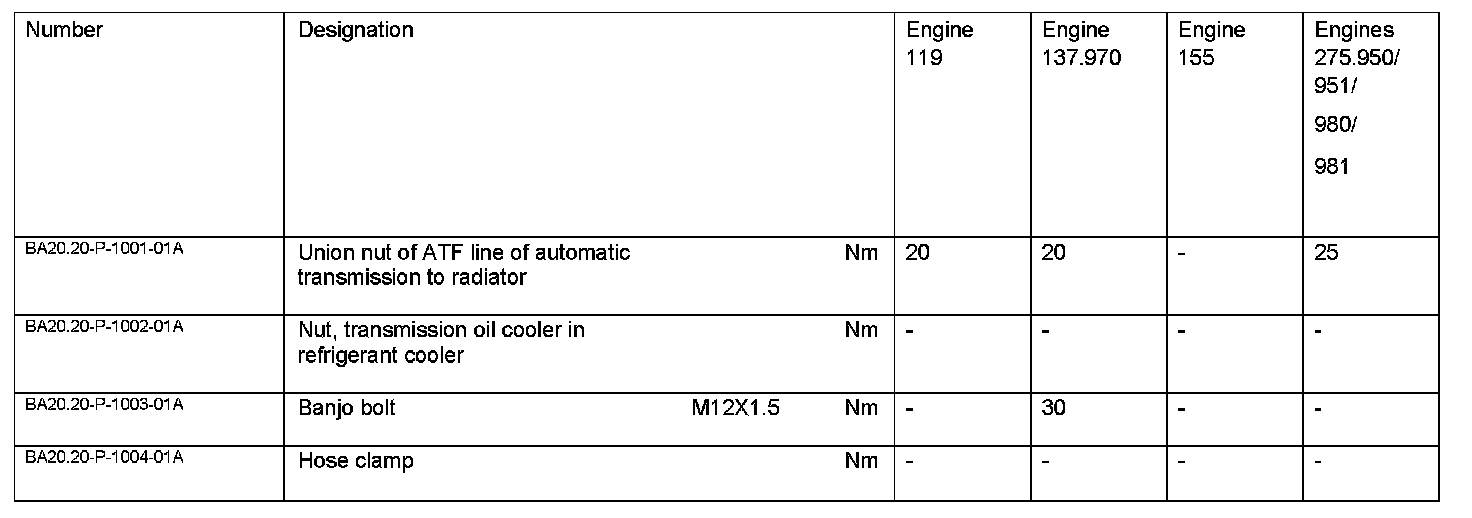

BA20.20-P-1000-01A Radiator, coolant hoses
