AR20.20-P-3866RMB Remove/Install Additional Radiator



AR20.20-P-3866RMB Remove/install additional radiator
- except CODE (P99) Special model "AMG Black Series"
- as of model year 2008

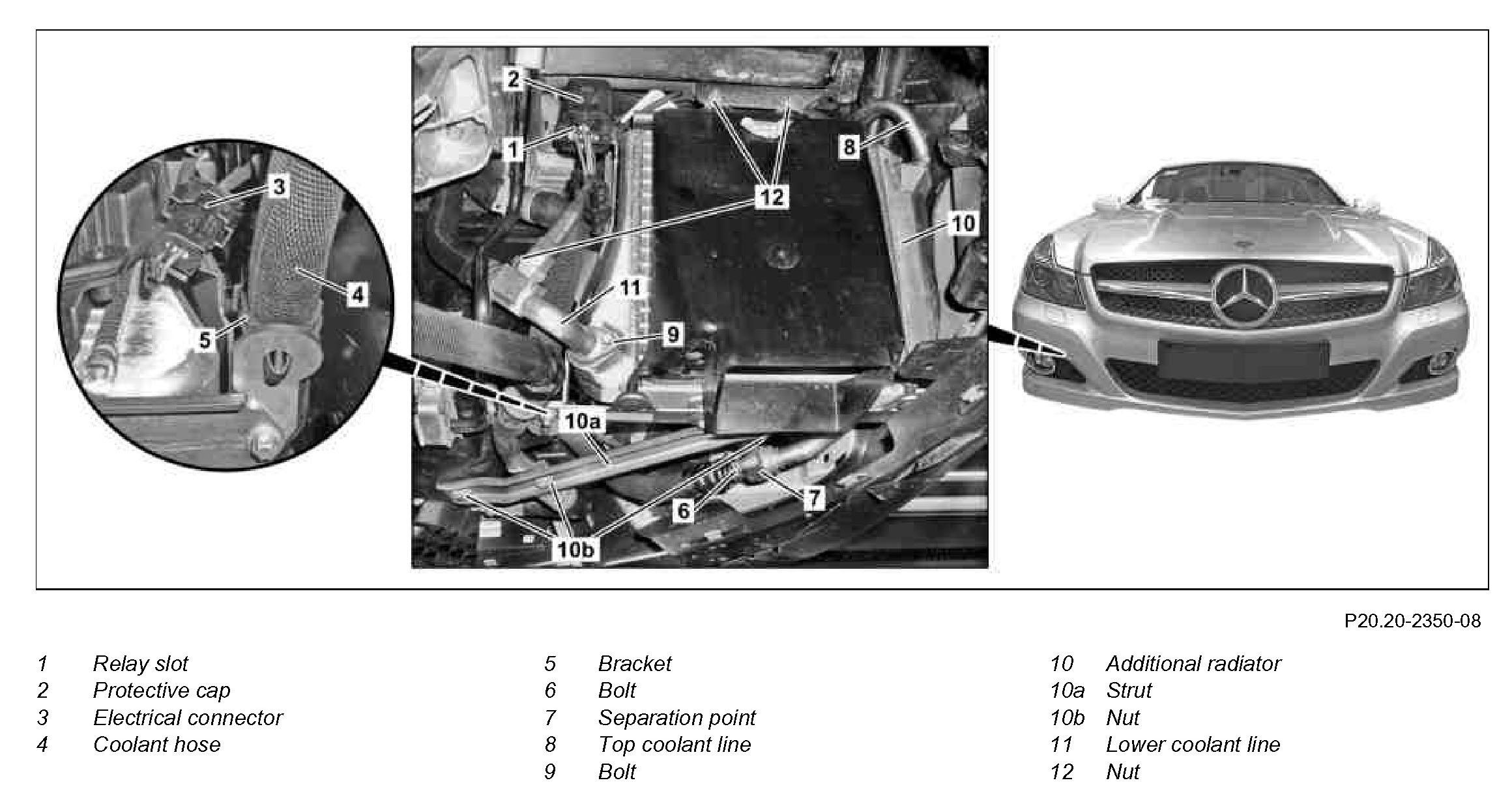

Component Identification:

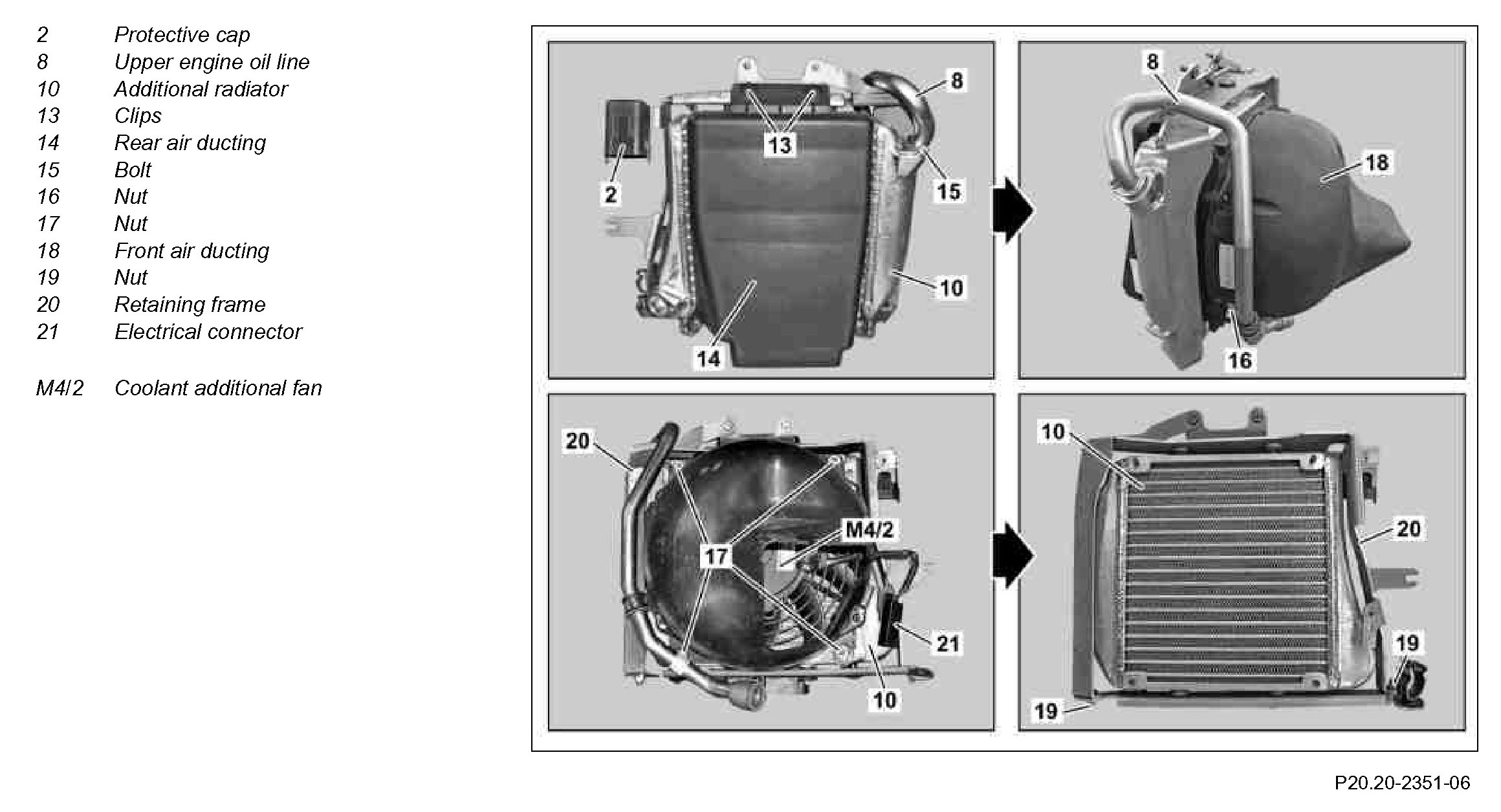

Component Identification:

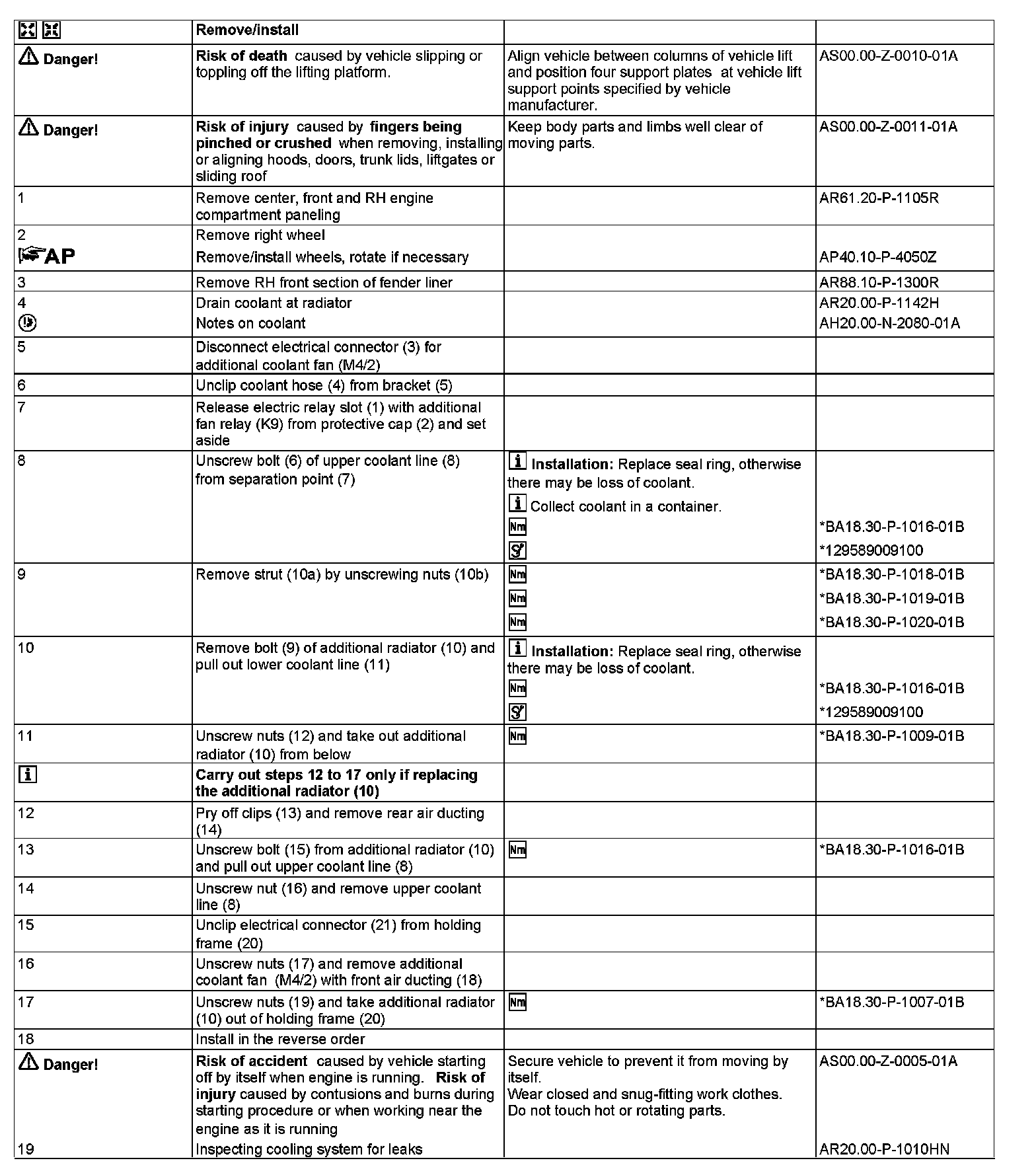

Steps 1-19:

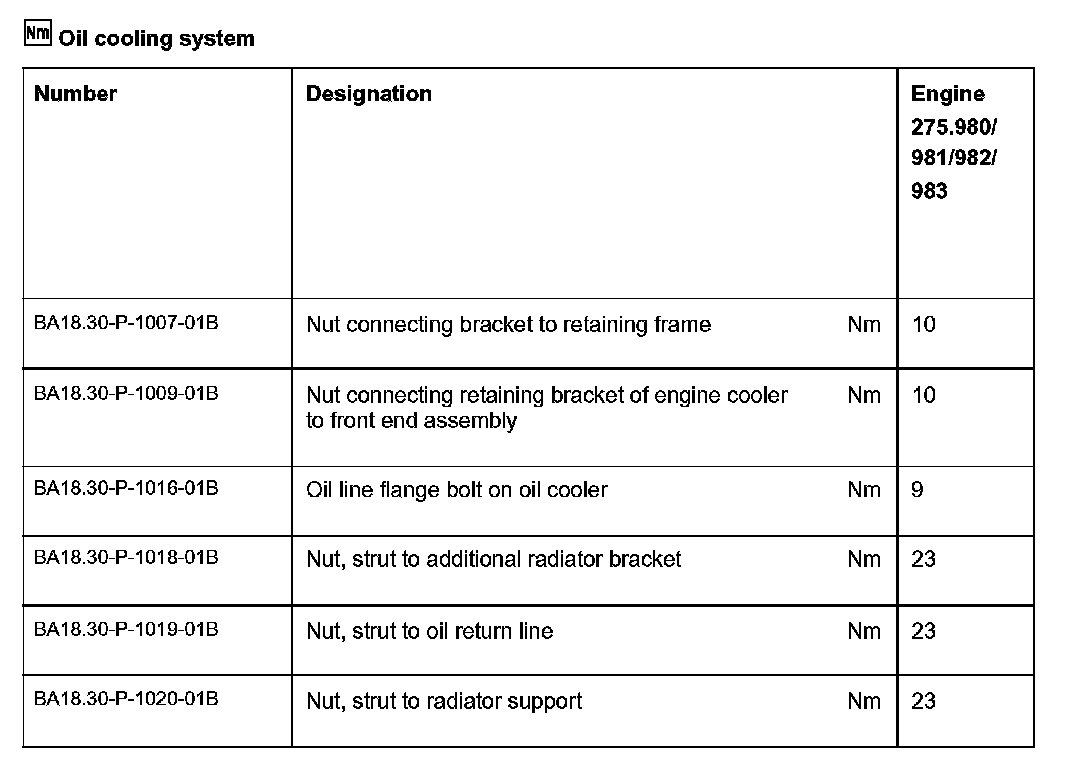

Oil cooling system:

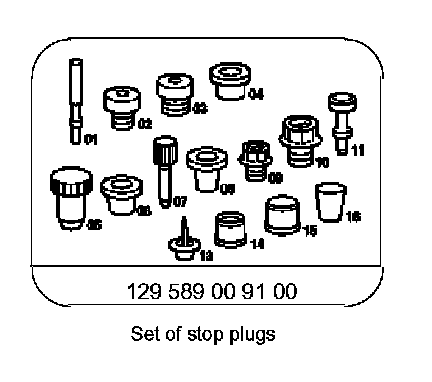

Special Tools:
