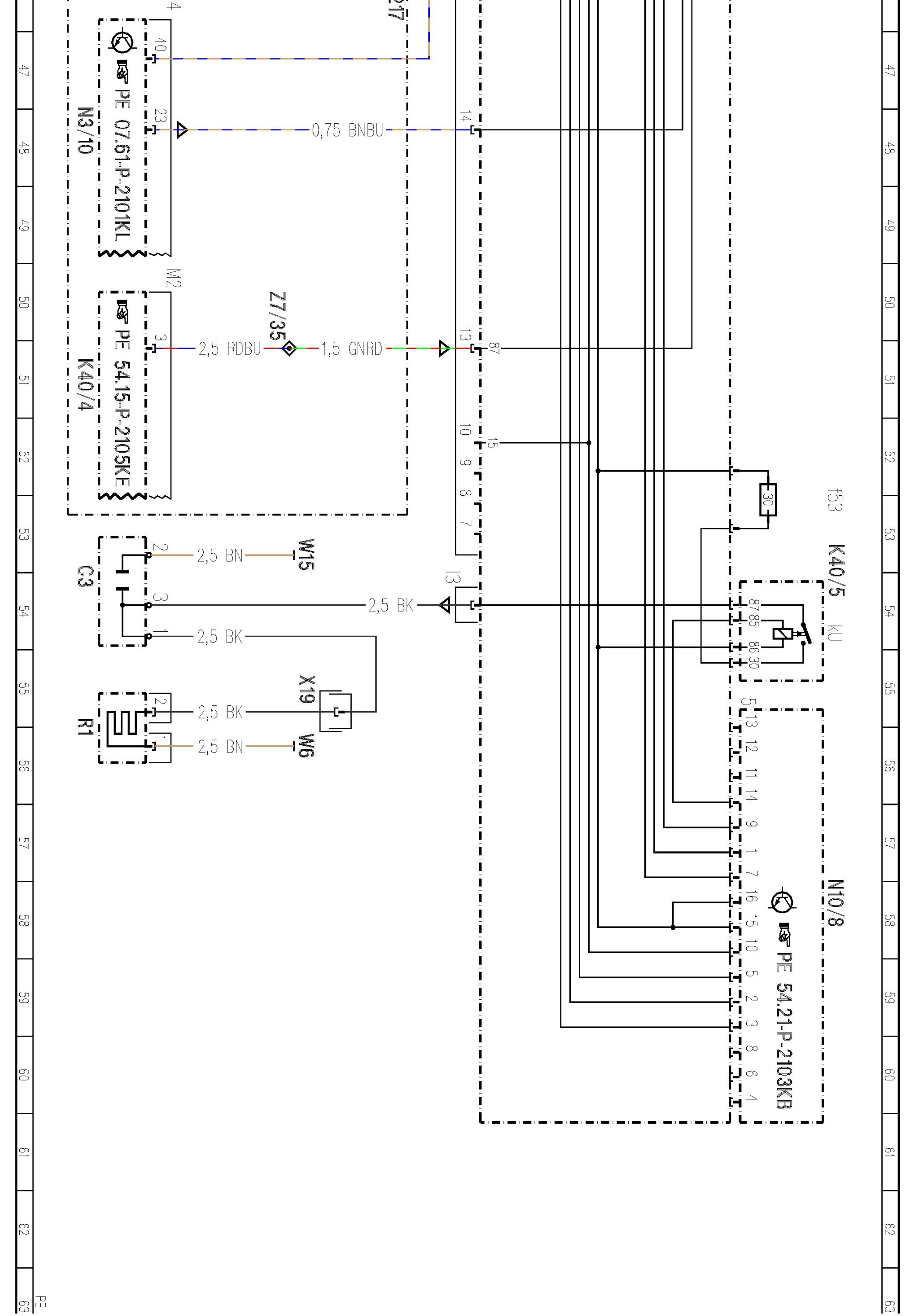

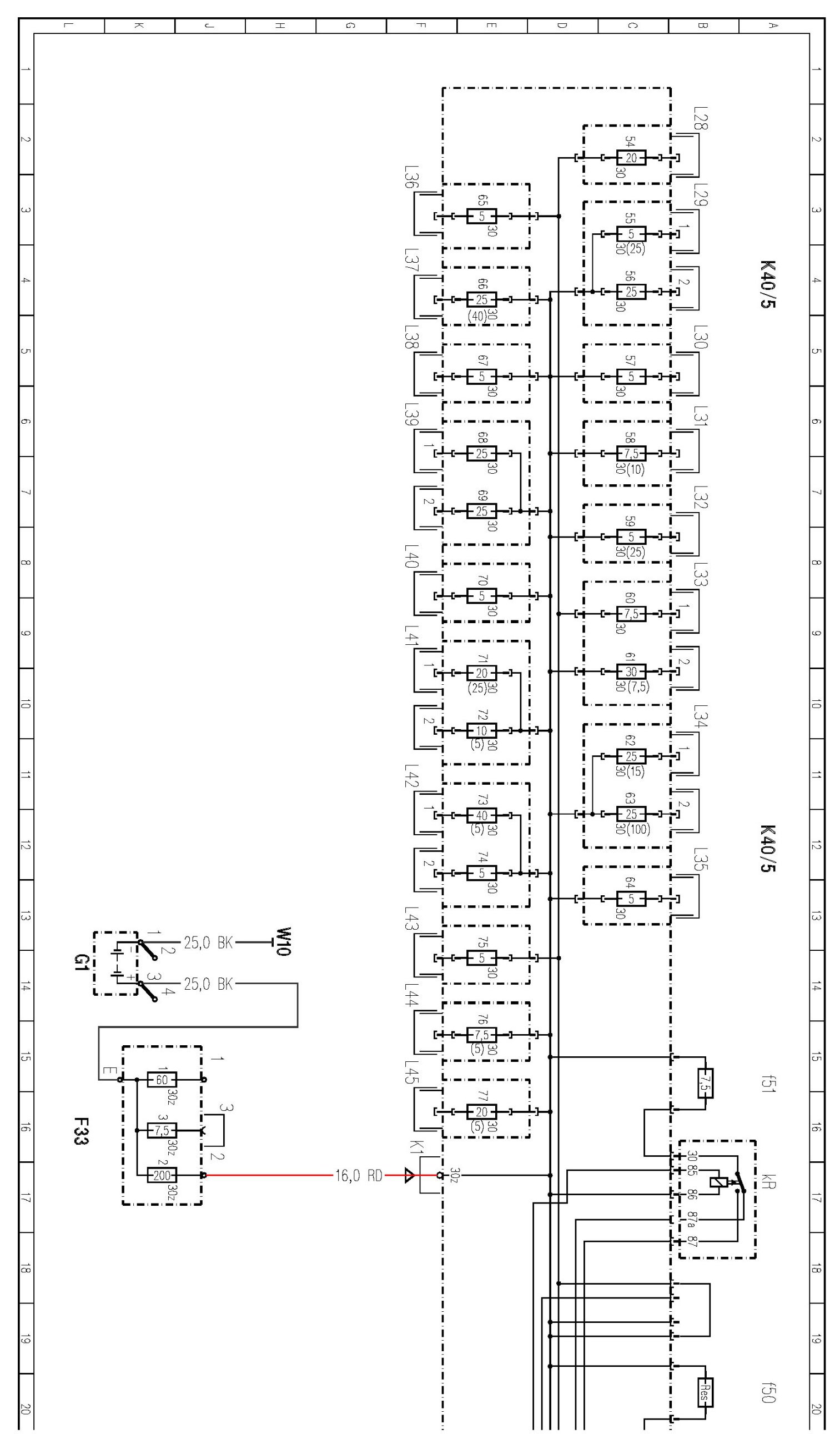

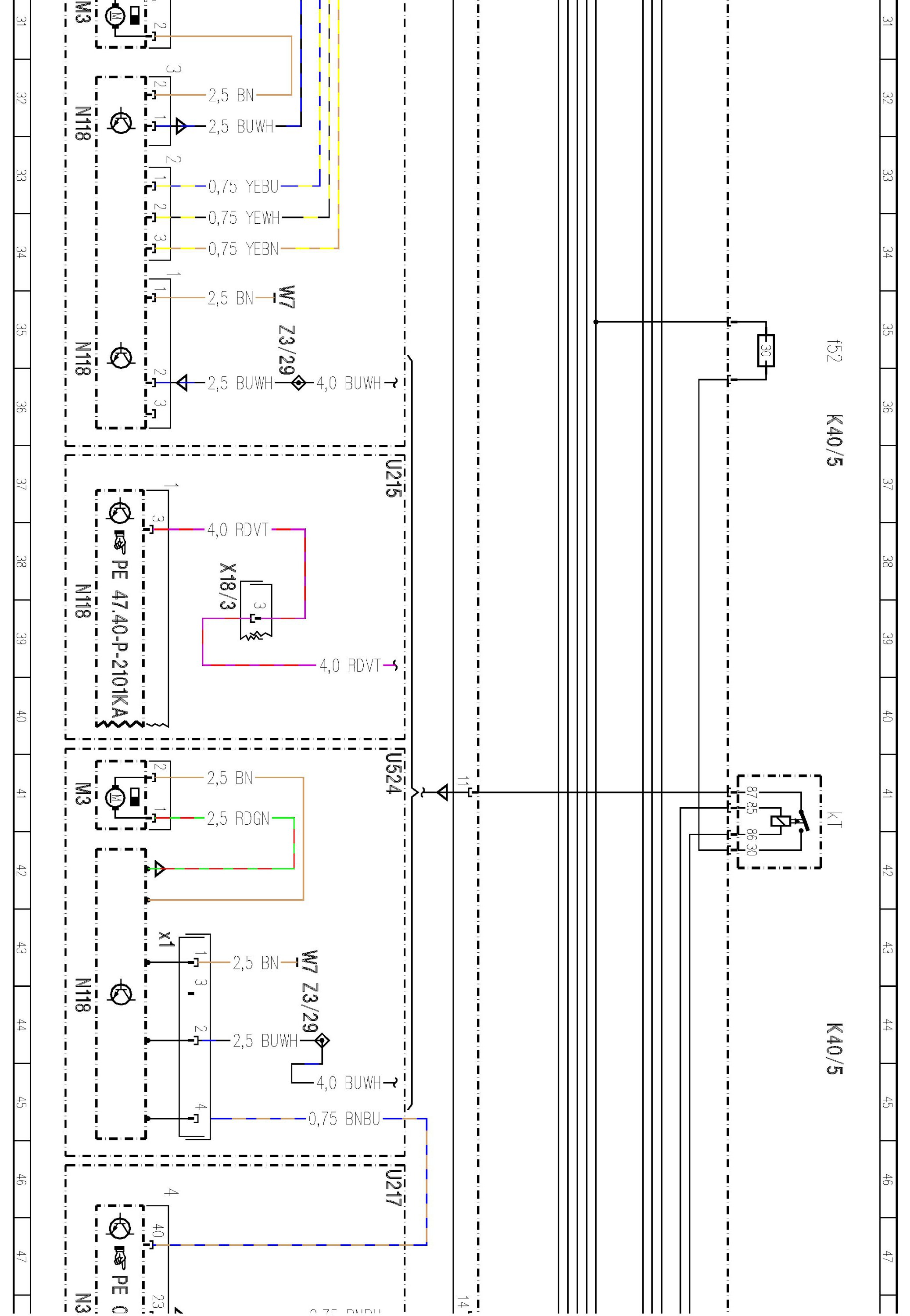

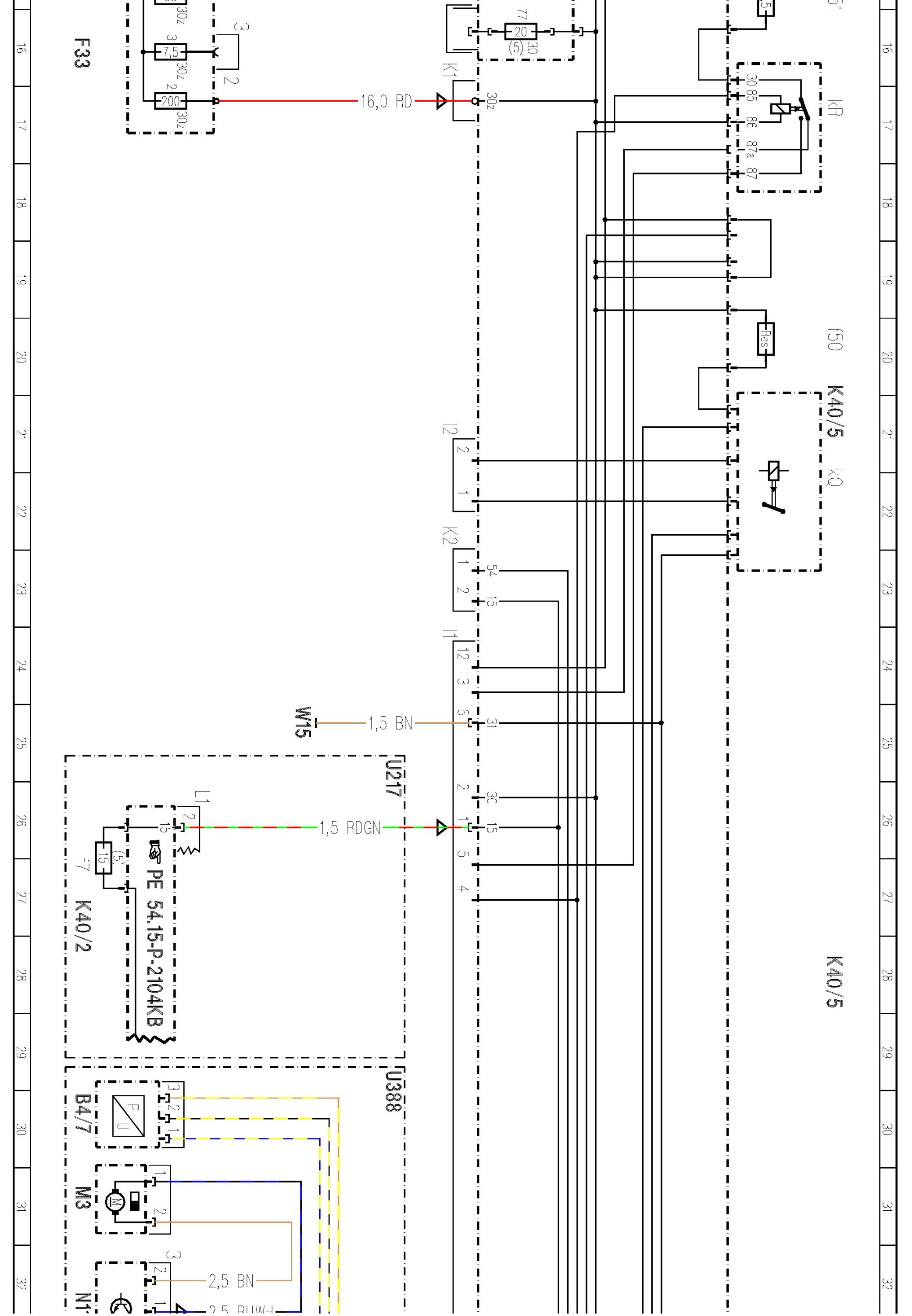

PE54.15-P-2103KE Fuse and Relay Box, Rear, Wiring Diagram

PE54.15-P-2103KE Fuse and Relay Box, Rear, Wiring Diagram

Model 230 with Engine 275
- as of model year 2009 /YoM 08 model refinement package

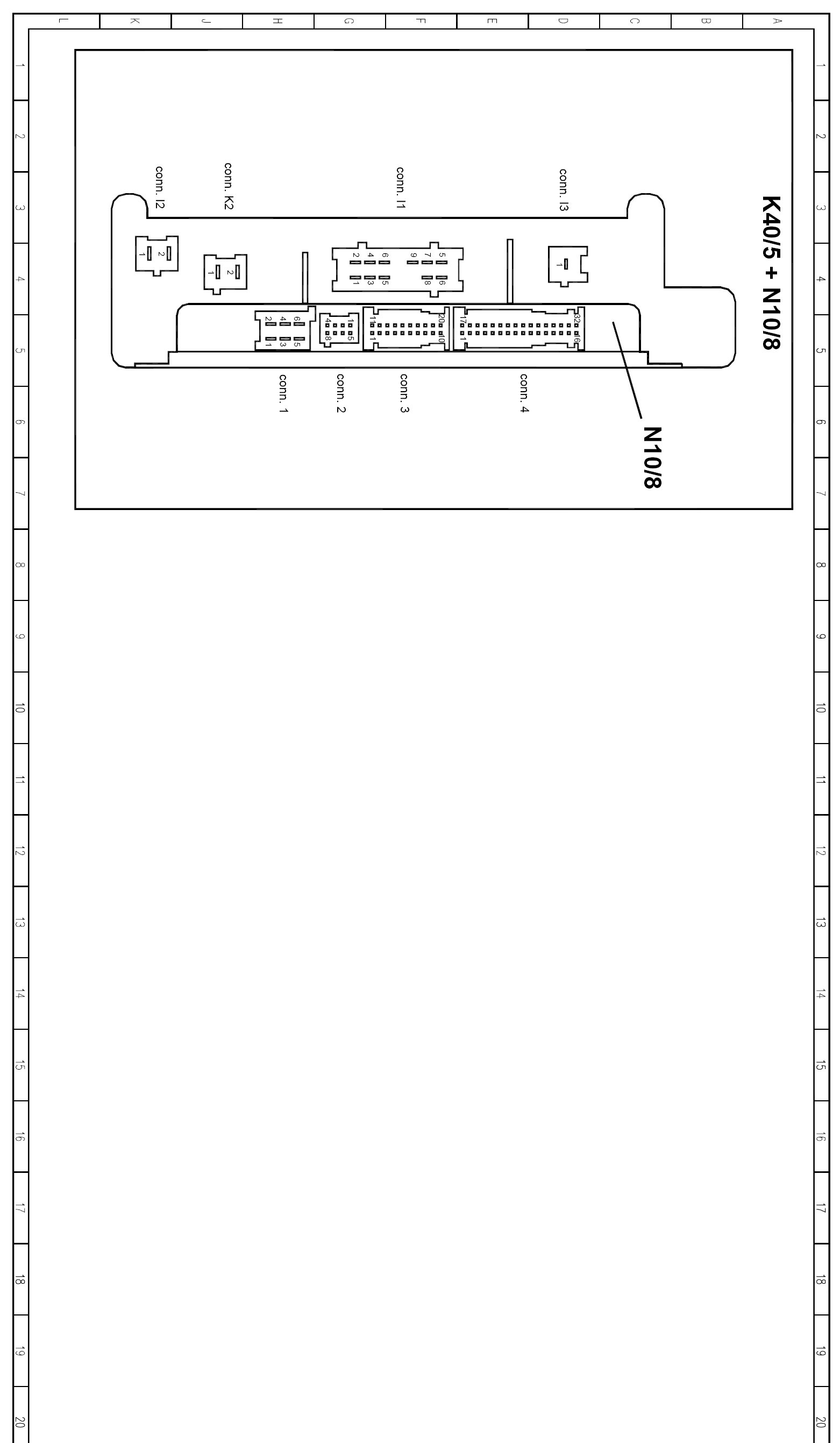

- Fuse and relay box K40/5










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
