PE82.60-P-2060KA Electrical Function Schematic For SDAR Function

Electrical Function Schematic For SDAR Function PE82.60-P-2060KA
- with CODE (536) SIRIUS satellite radio
- with CODE (494) USA version
- refinement package
- as of model year 2009

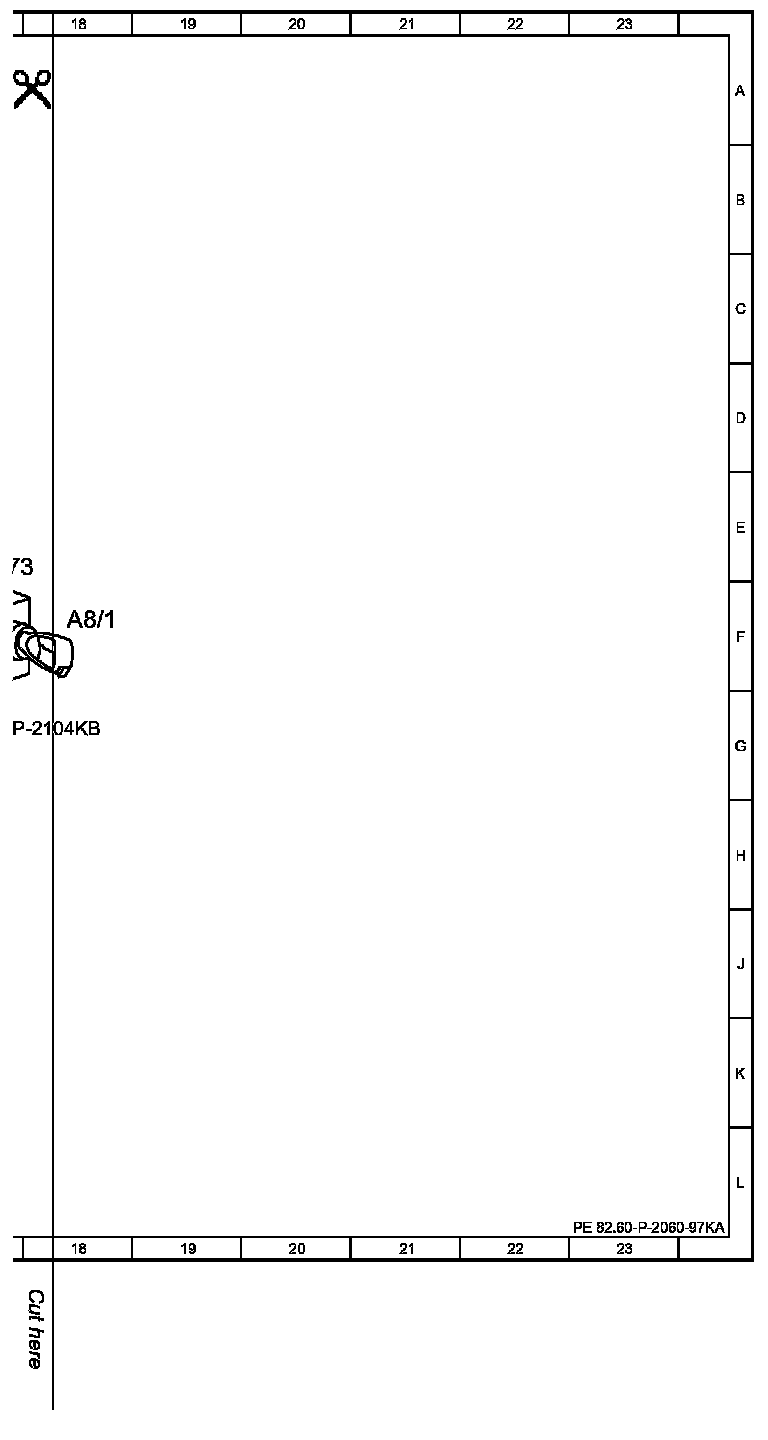

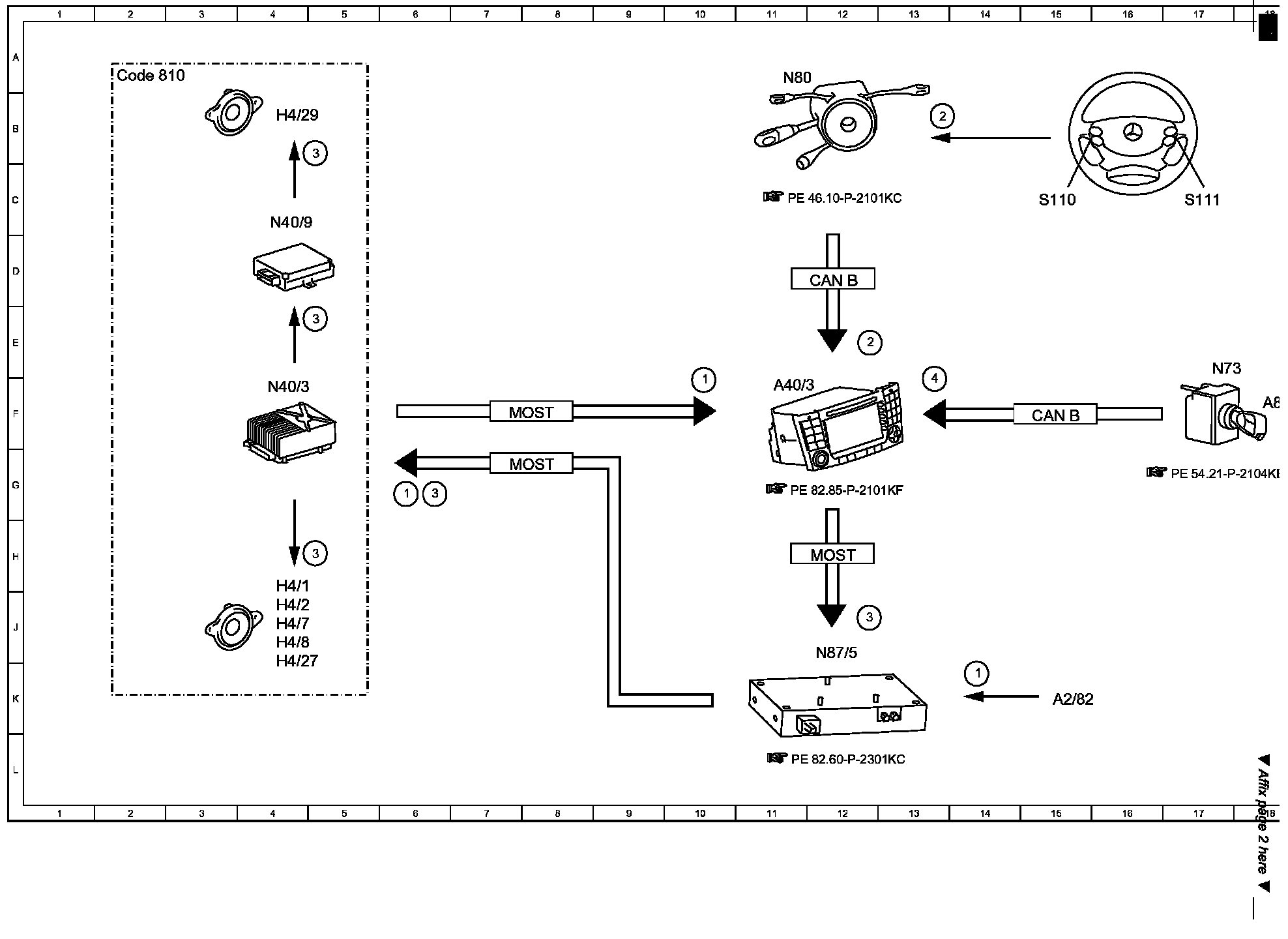

Function Diagram (Part 1):

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
