PE82.60-P-2059KA Electrical Function Diagram For Volume/Sound Settings, Function

Electrical Function Diagram For Volume/sound Settings, Function PE82.60-P-2059KA
- with CODE (528) COMAND with DVD changer
- with CODE (512) COMAND APS with DVD changer
- except CODE (498) Japan version
- refinement package
- as of model year 2009

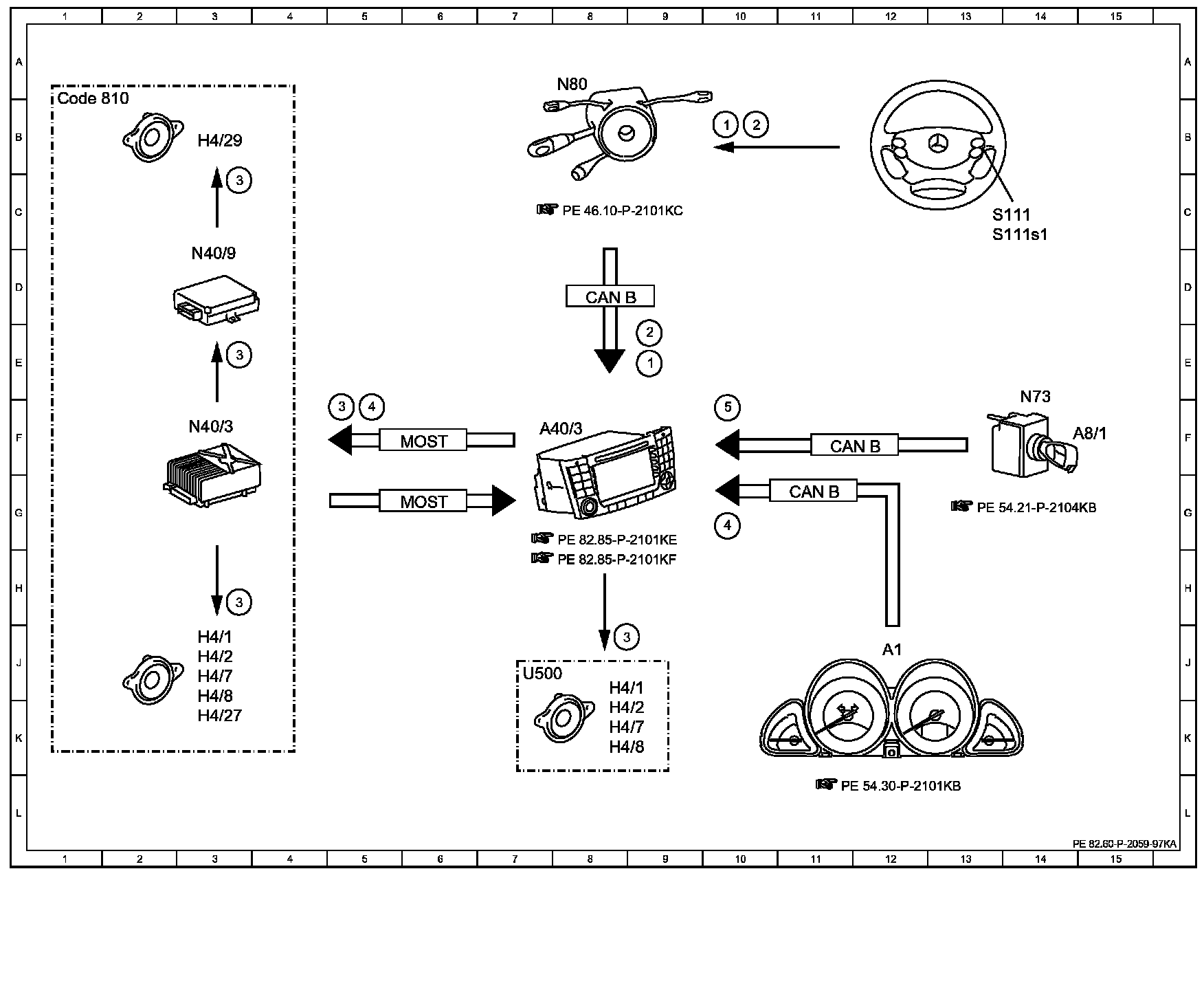

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
