PE54.21-P-2124KB Wiring Diagram of Central Gateway Control Unit

Wiring Diagram Of Central Gateway Control Unit PE54.21-P-2124KB
- Control unit N93
- refinement package
- as of model year 2009

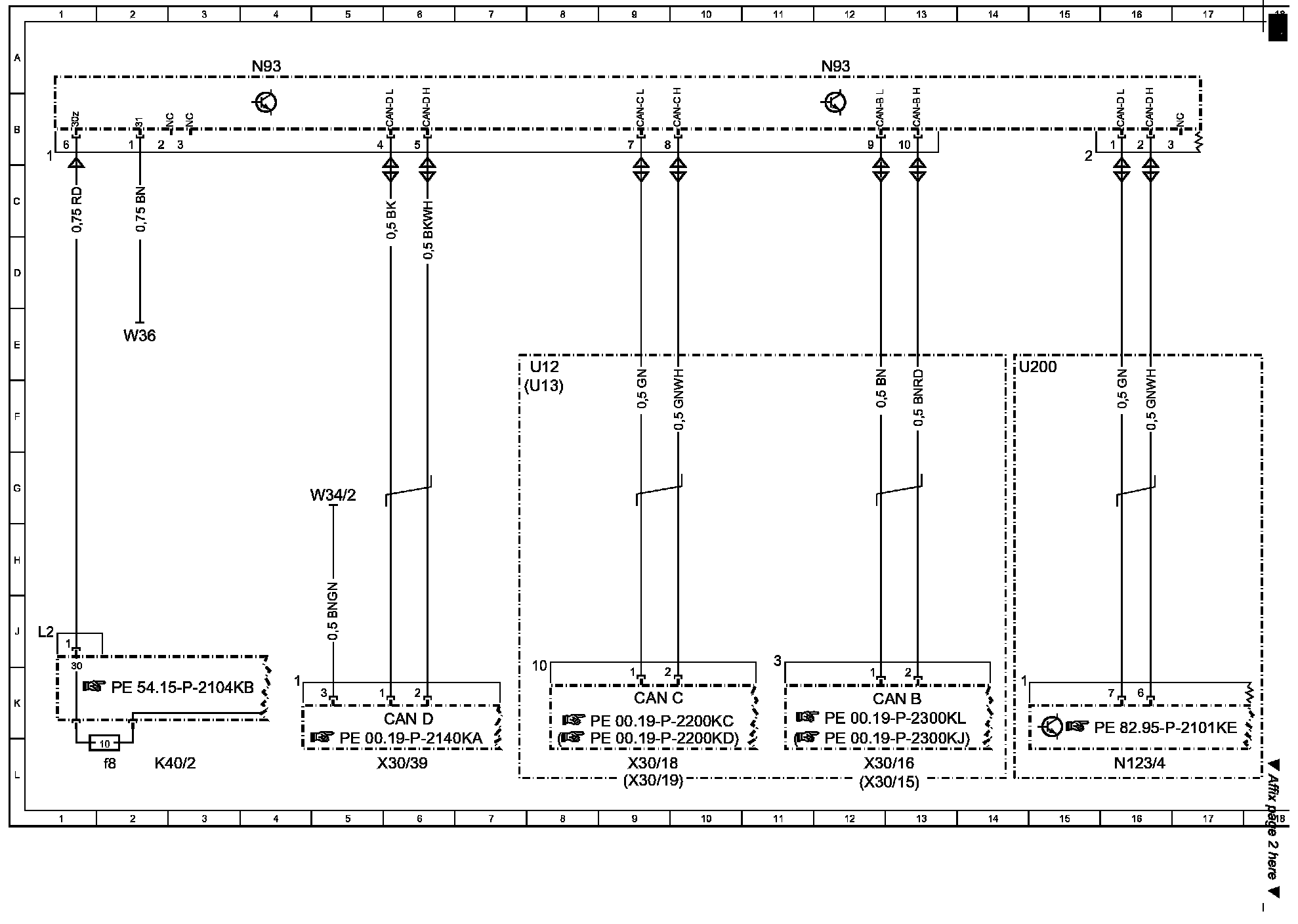

Wiring Diagram (Part 1):

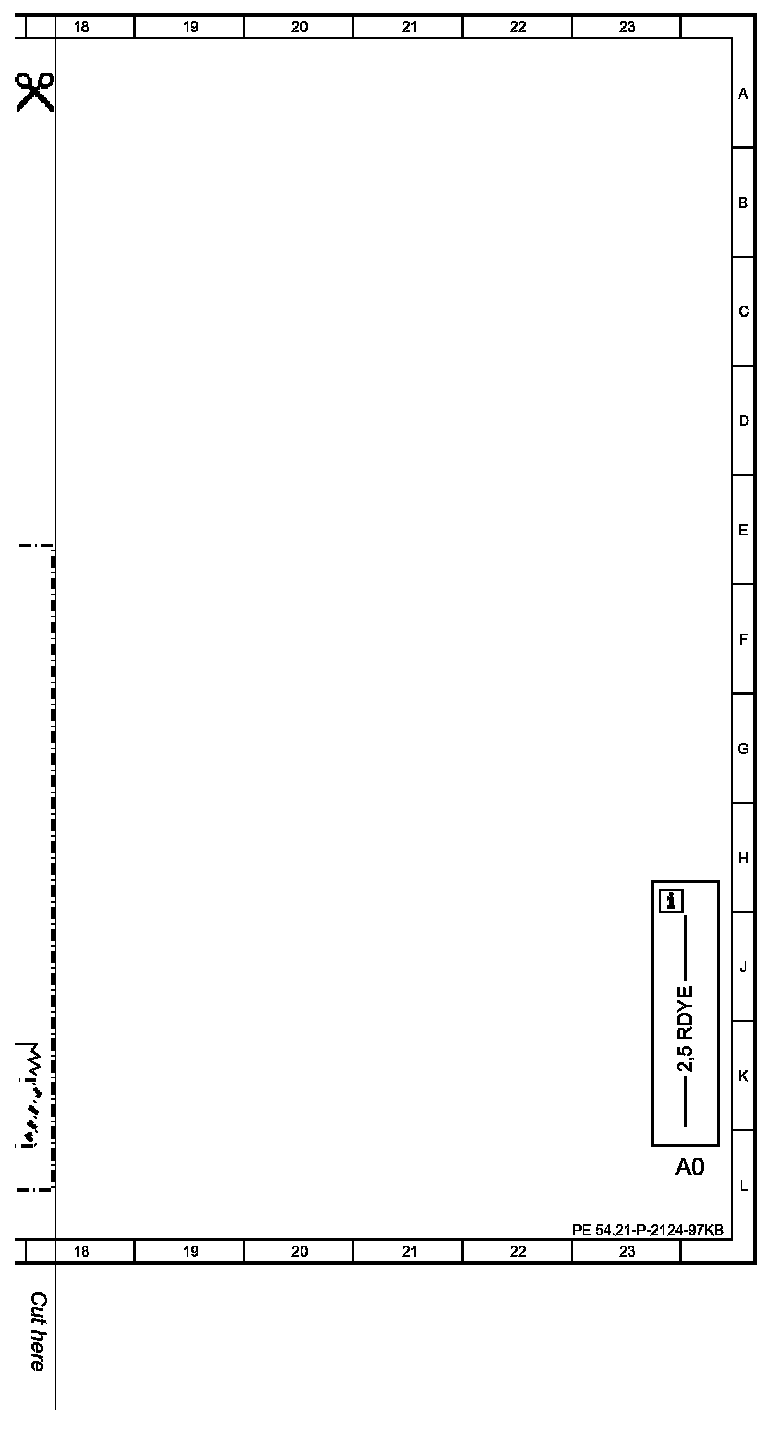

Wiring Diagram (Part 2):

Component Description/Coordinates, A0 To X30/39:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
