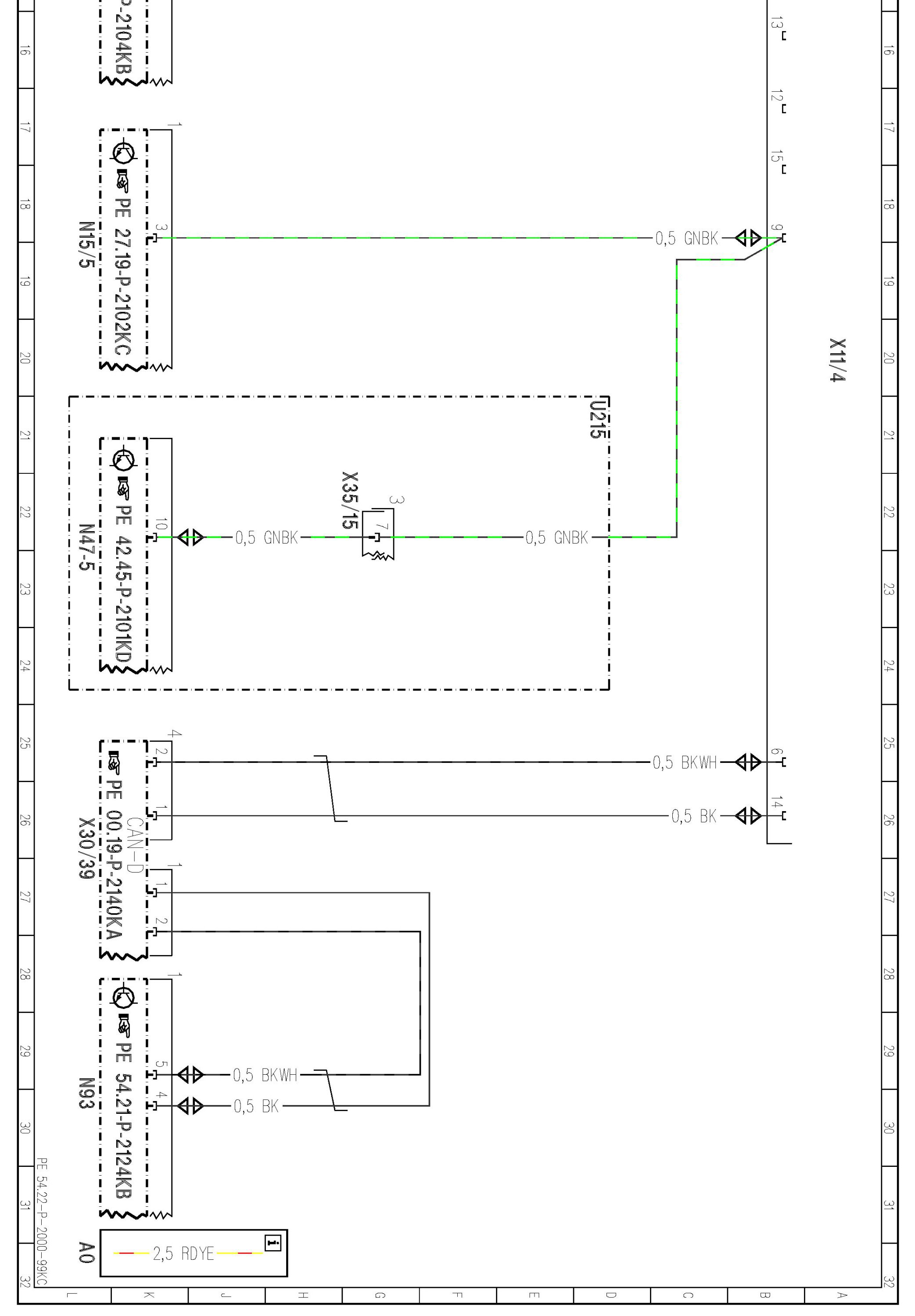

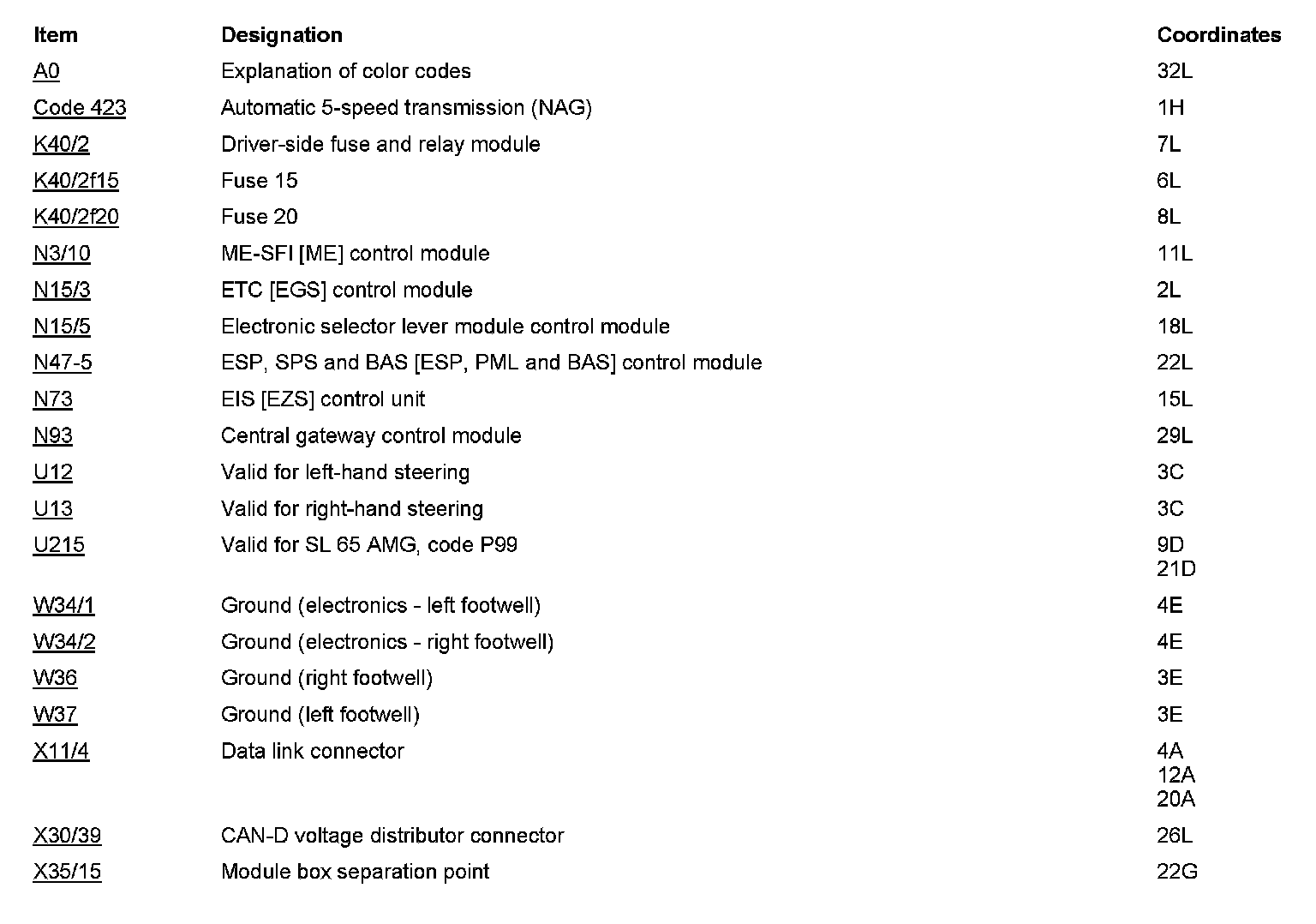

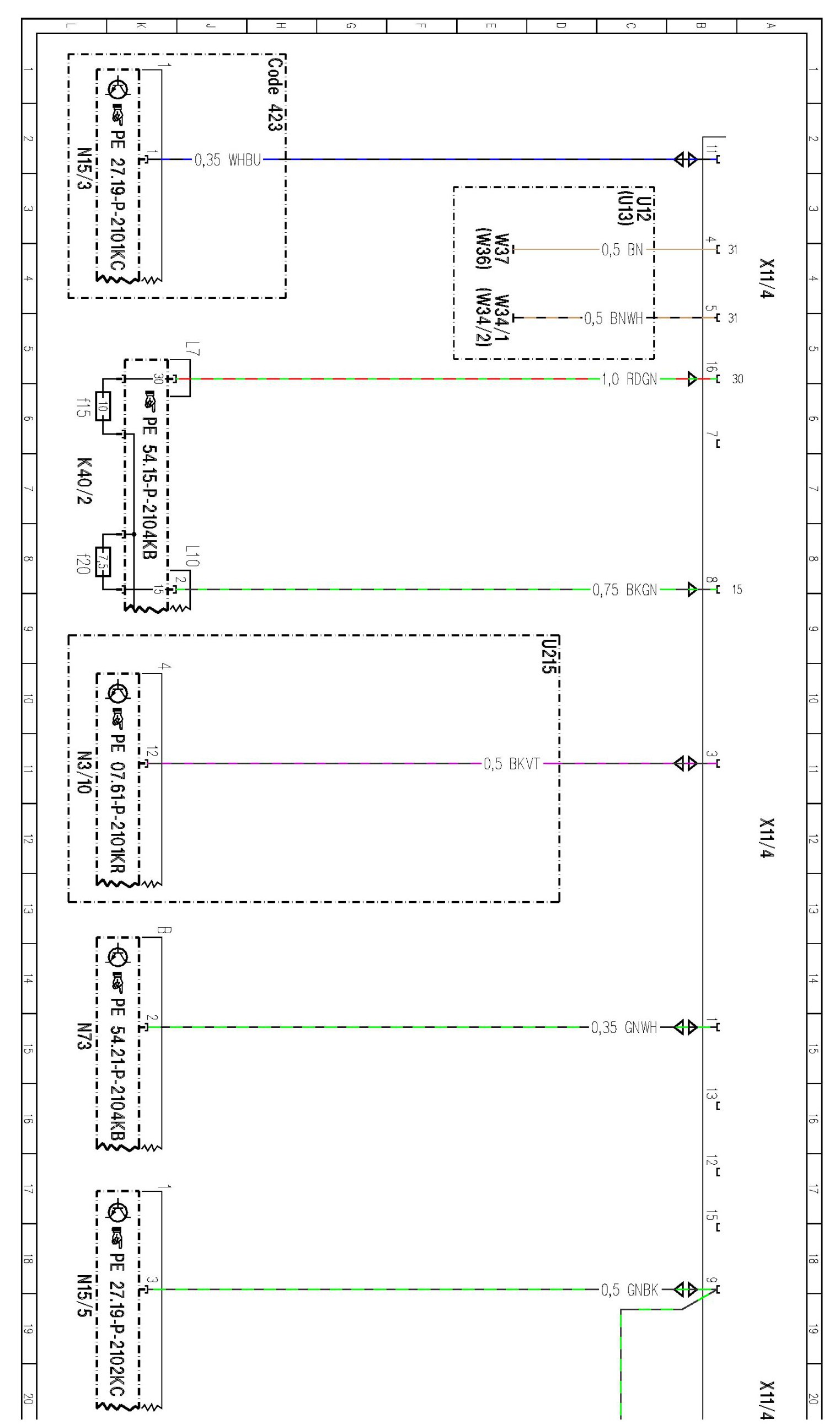

PE54.22-P-2000KC Data Link Connector/Diagnostic Socket, Wiring Diagram

PE54.22-P-2000KC Data Link Connector/Diagnostic Socket, Wiring Diagram

Model 230
- as of model year 2009 /YoM 08 model refinement package

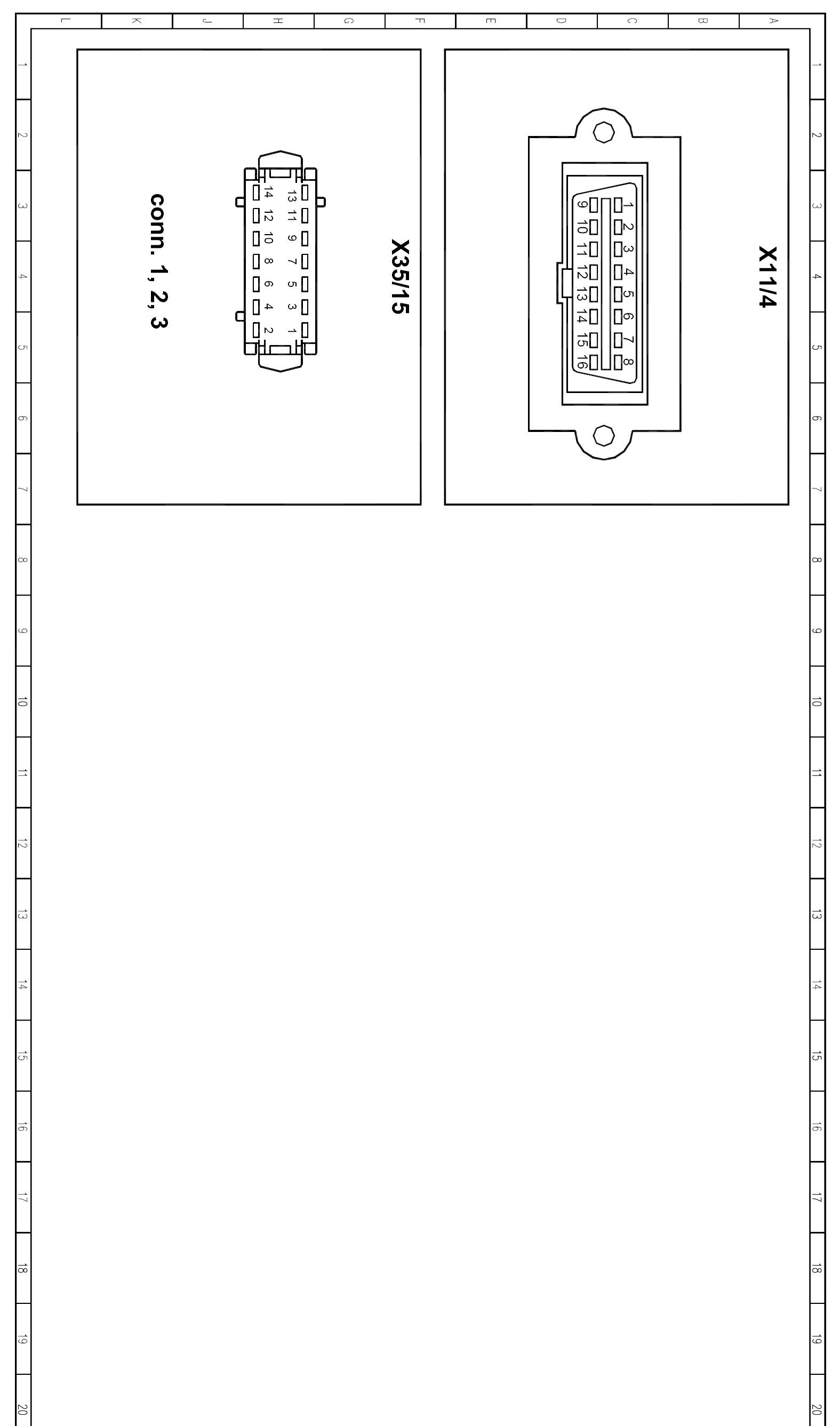

- Test connector X11/4






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
