Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Function Diagrams >> PE83.40-U-2050KA Function Diagram, Electrics, Interior Climate Control

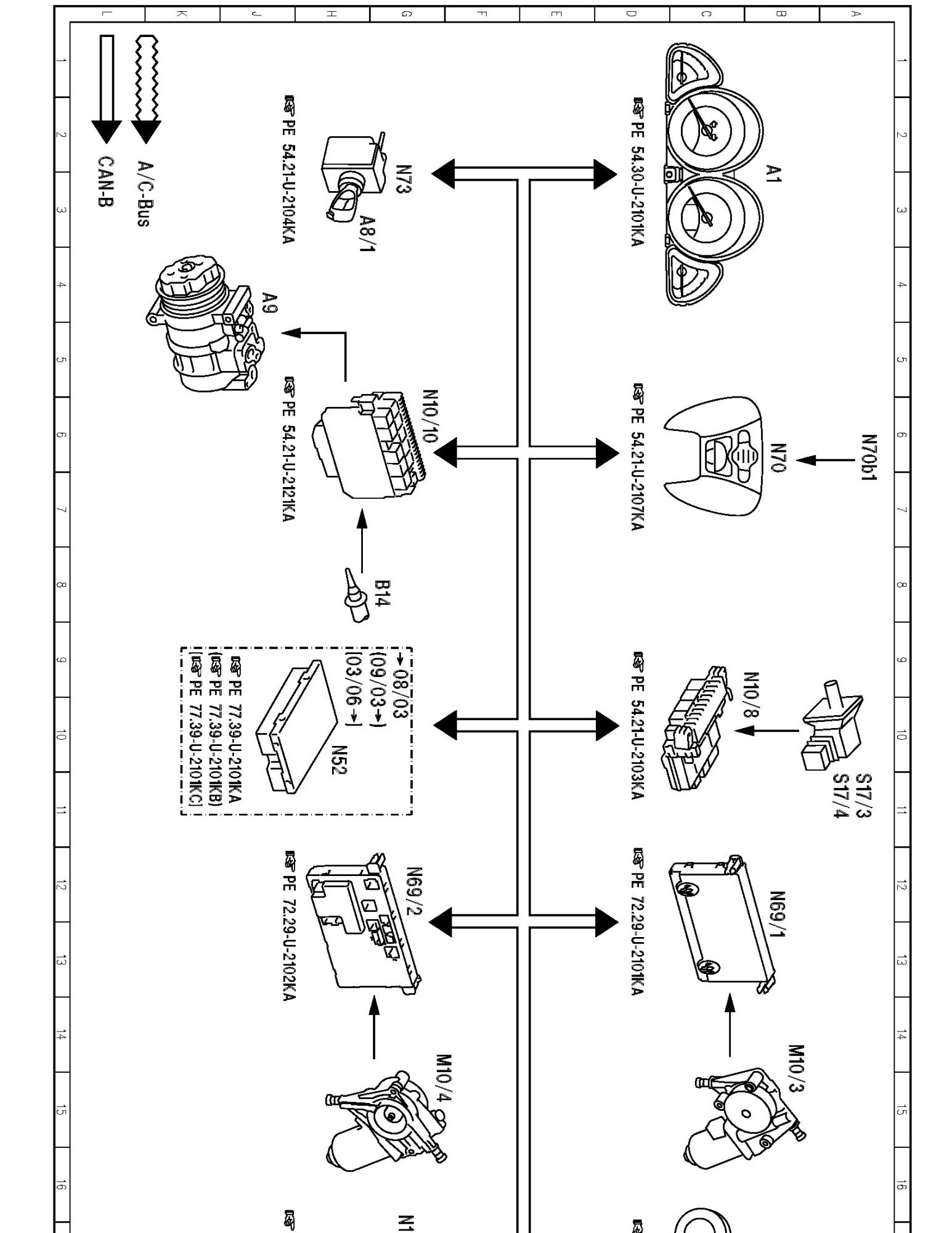

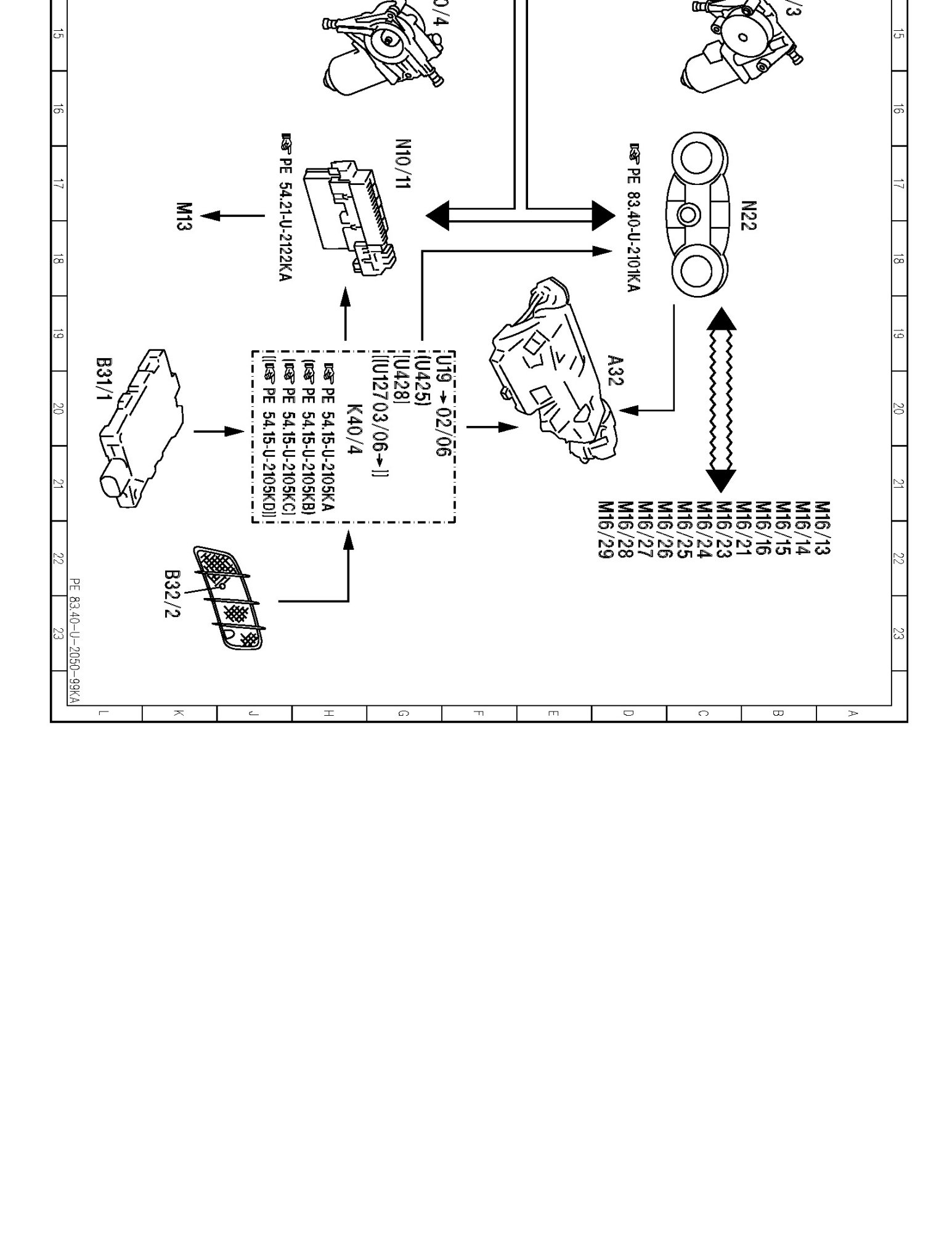

PE83.40-U-2050KA Function Diagram, Electrics, Interior Climate Control



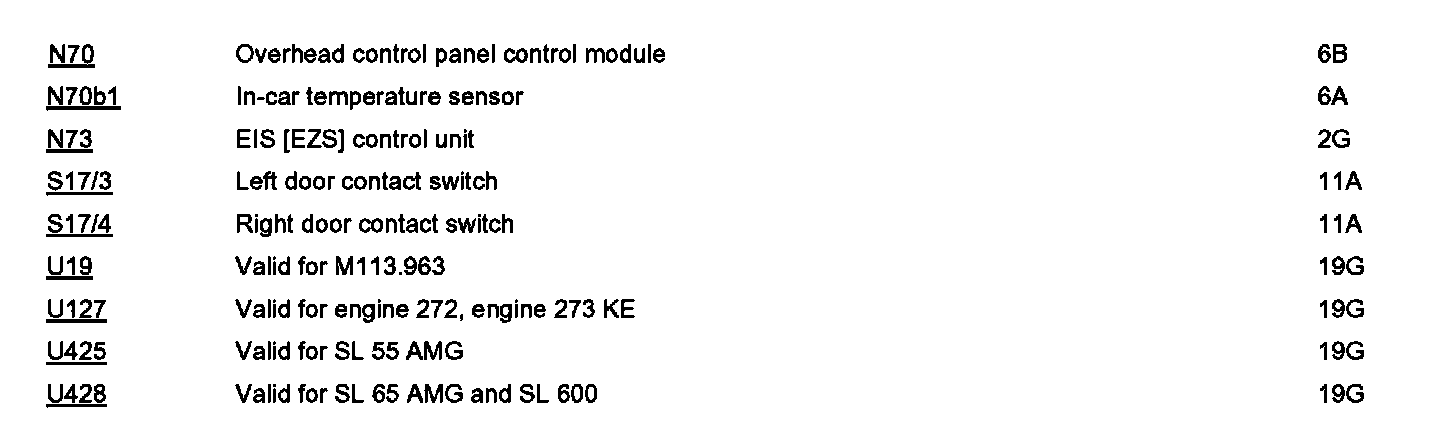

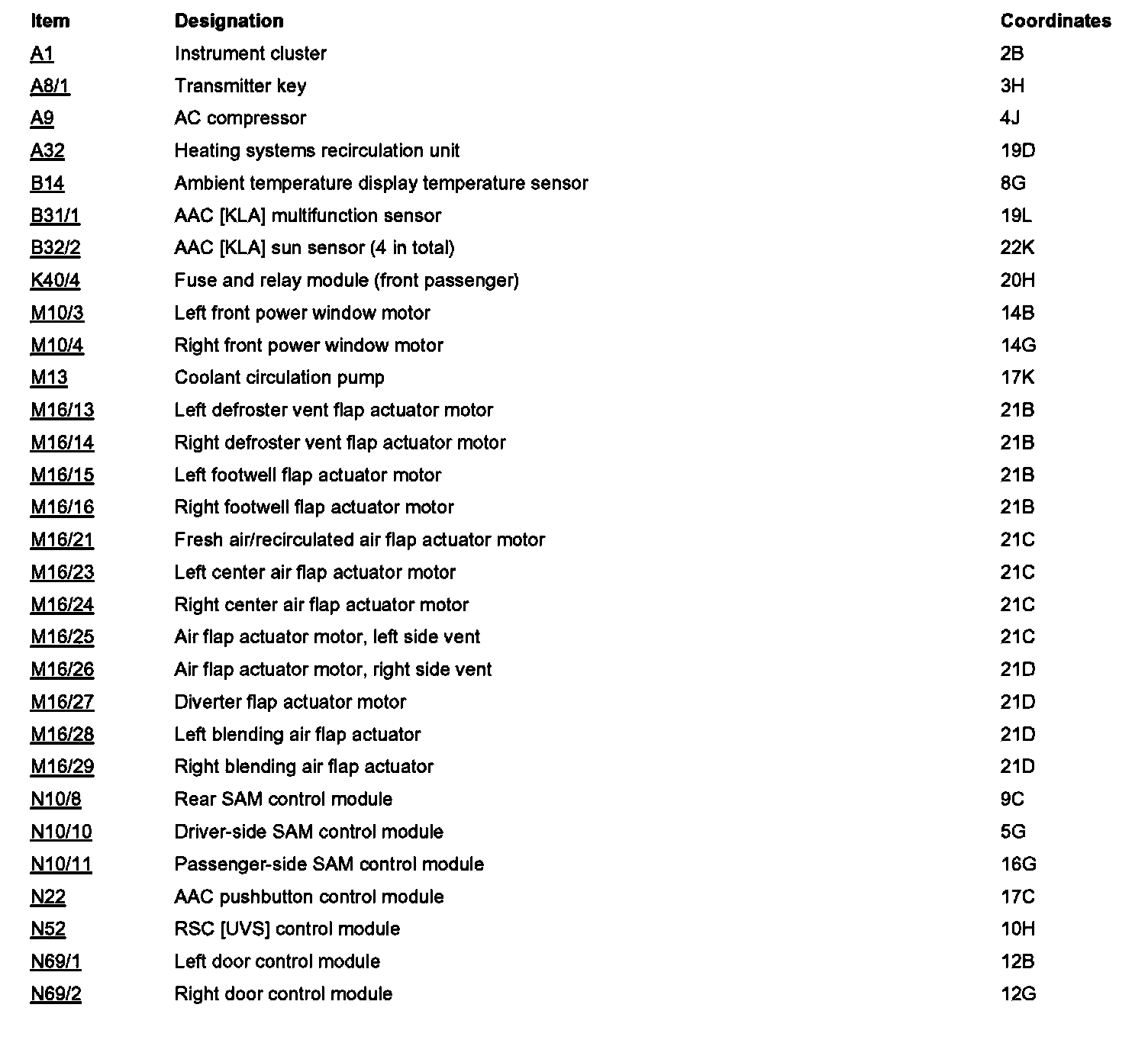

PE83.40-U-2050KA Function Diagram, Electrics, Interior Climate Control



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
