PE83.40-P-2052KA Electrical Function Schematic For Automatic Air Conditioning, Input Signals

Electrical Function Schematic For Automatic Air Conditioning, Input Signals PE83.40-P-2052KA
- refinement package
- as of model year 2009

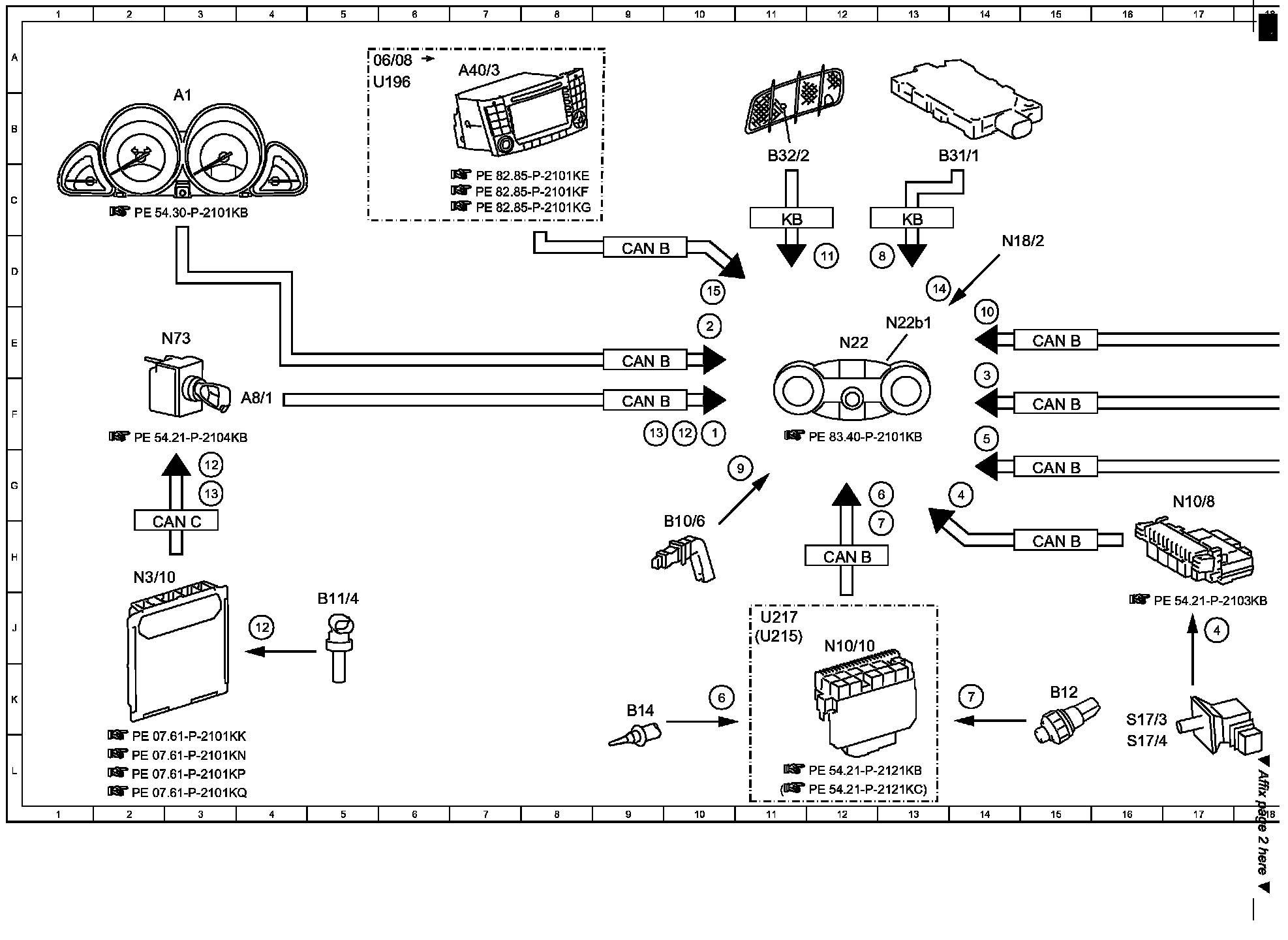

Function Diagram (Part 1):

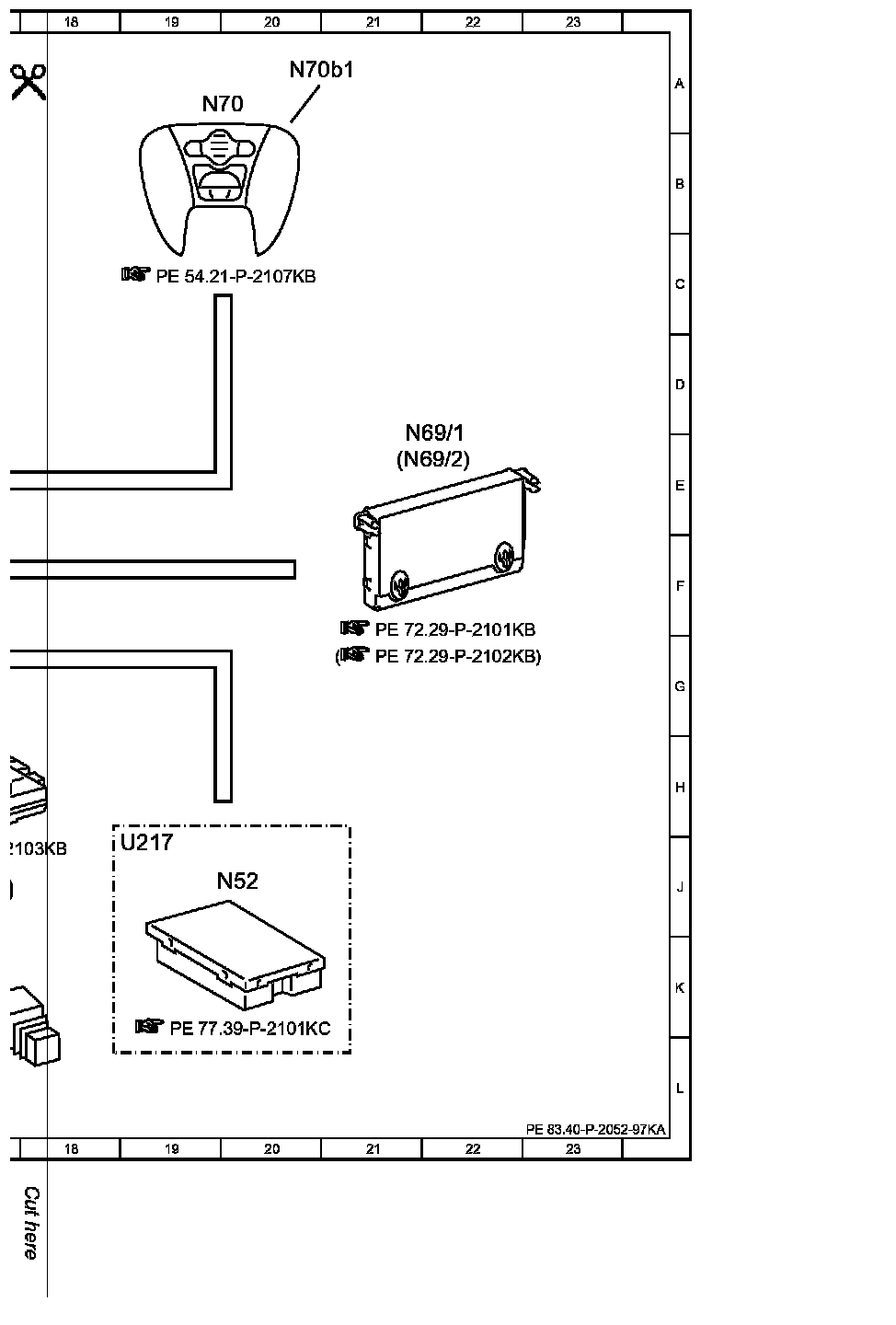

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
