PE83.40-P-2101KB Wiring Diagram For Automatic Air Conditioning (AAC) Control Unit

Wiring Diagram For Automatic Air Conditioning (AAC) Control Unit PE83.40-P-2101KB
- with CODE (581) Automatic air conditioning
- control unit N22
- refinement package
- as of model year 2009

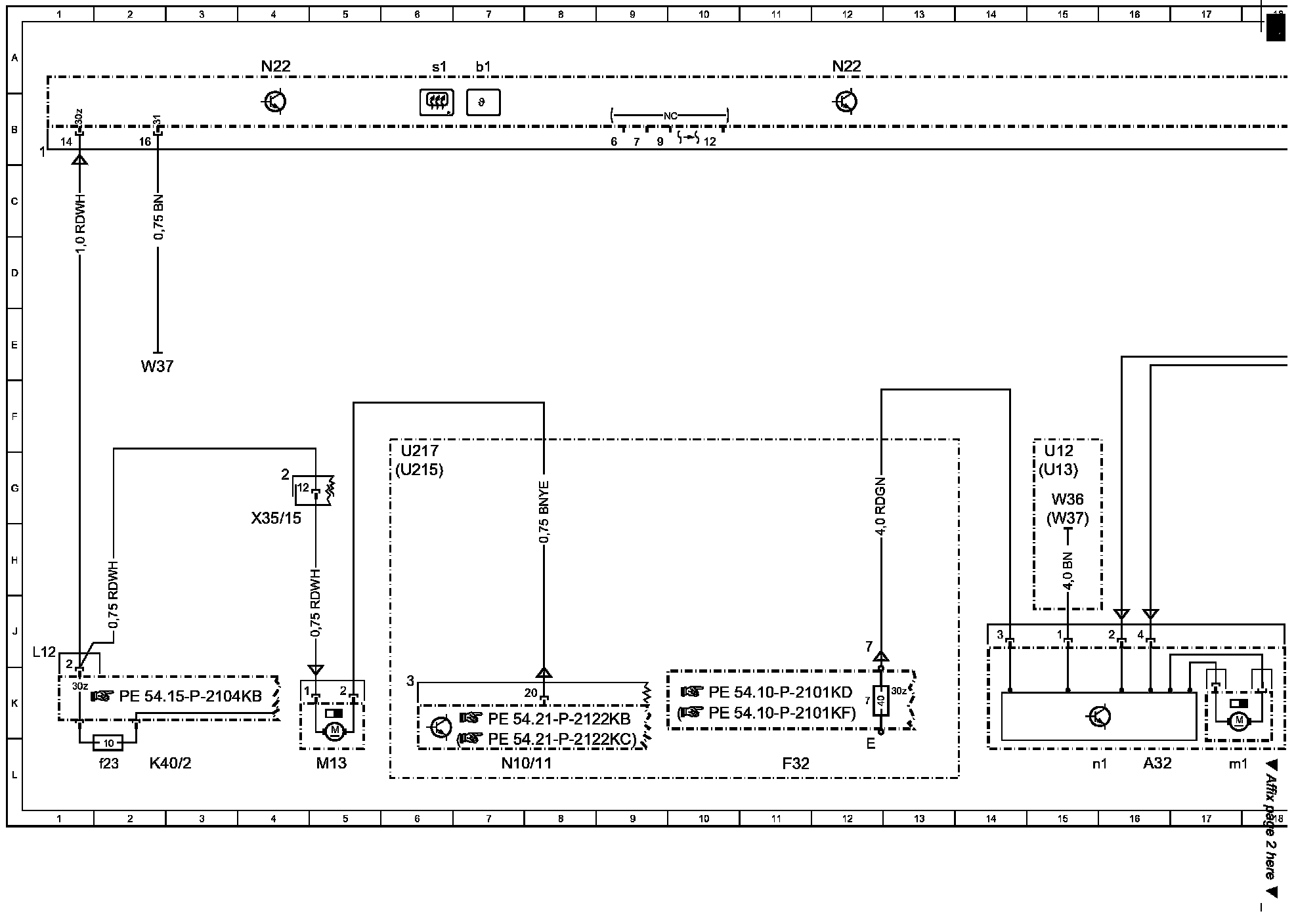

Wiring Diagram (Part 1):

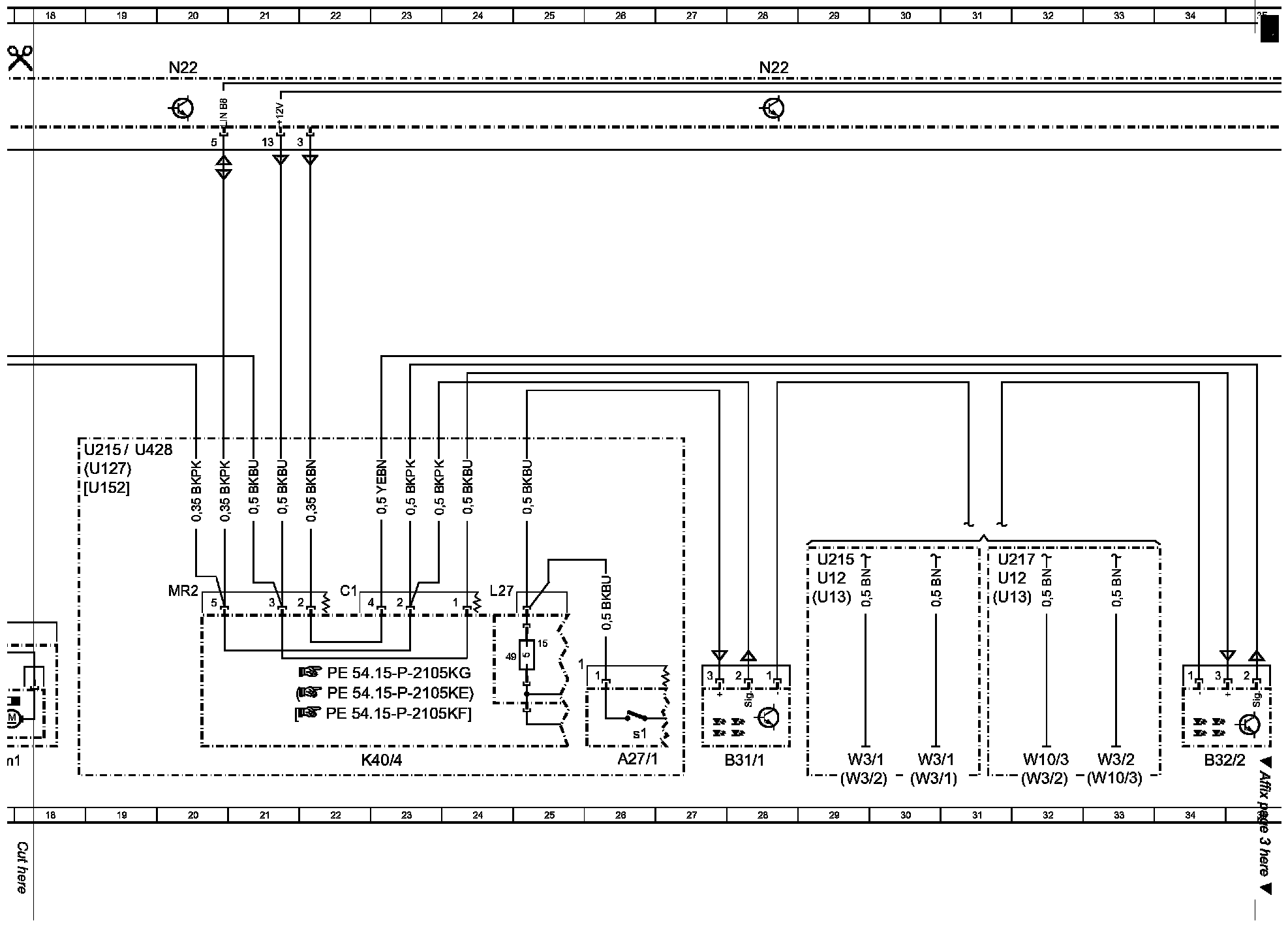

Wiring Diagram (Part 2):

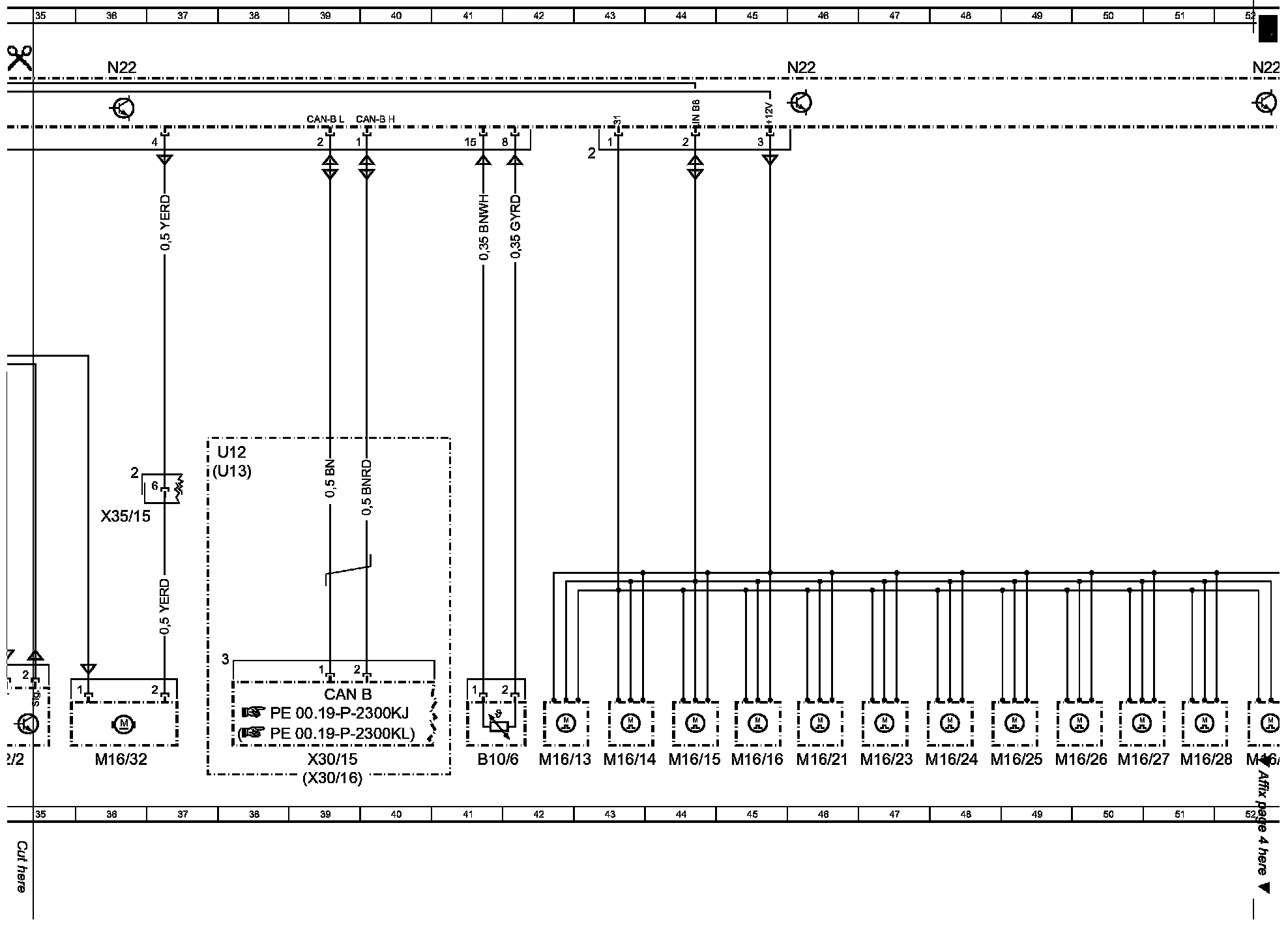

Wiring Diagram (Part 3):

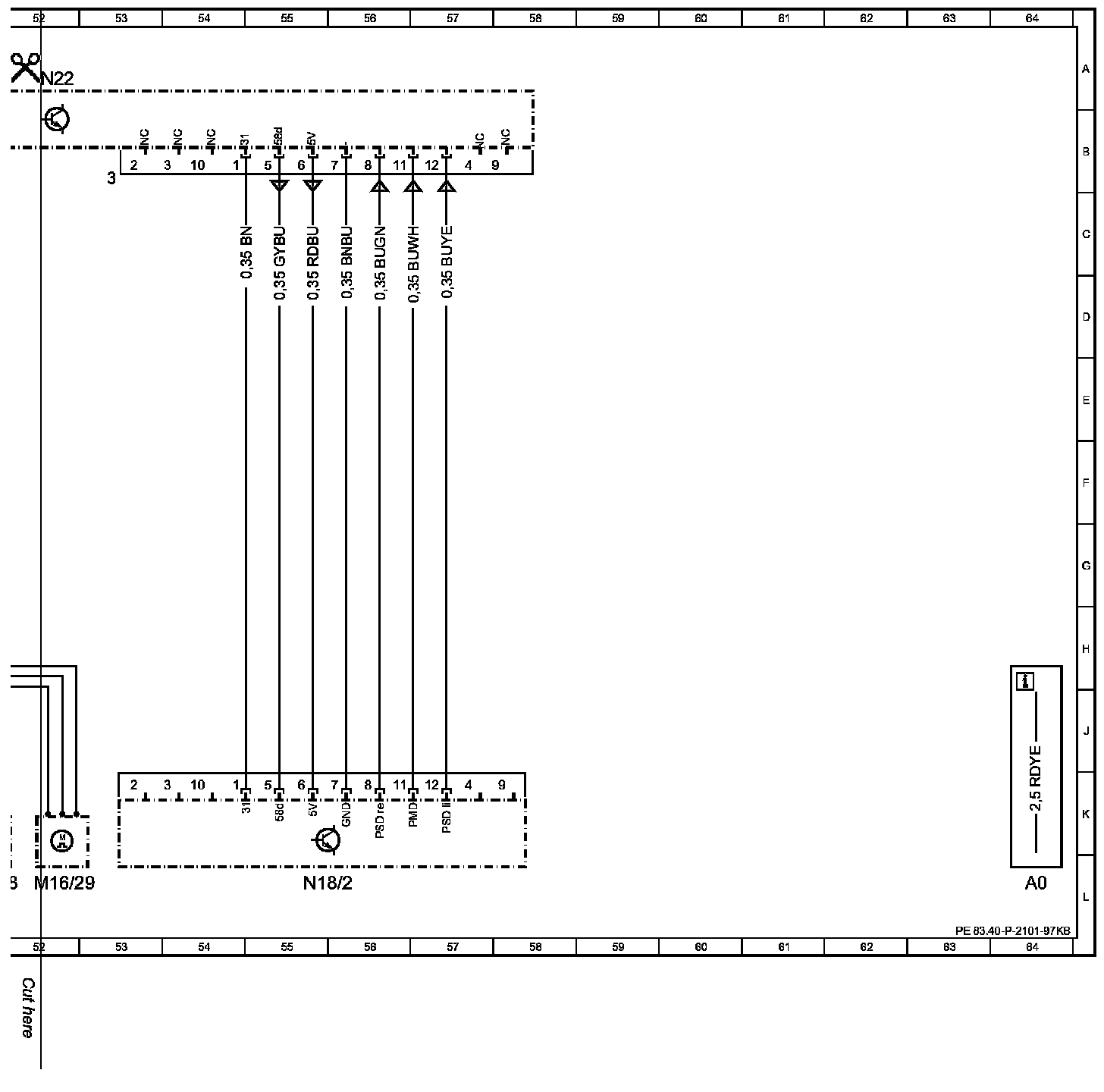

Wiring Diagram (Part 4):

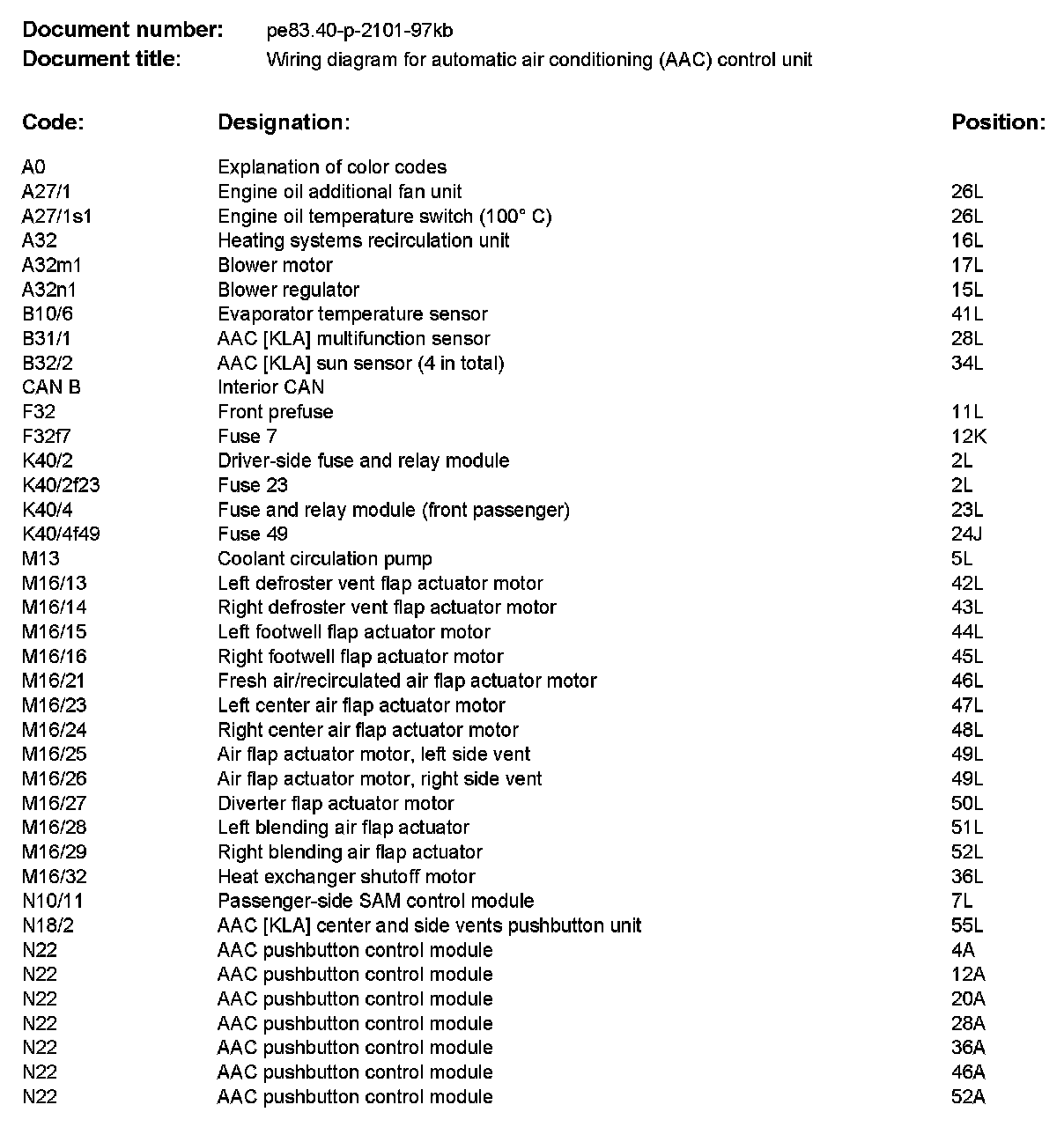

Component Description/Coordinates, A0 To N22:

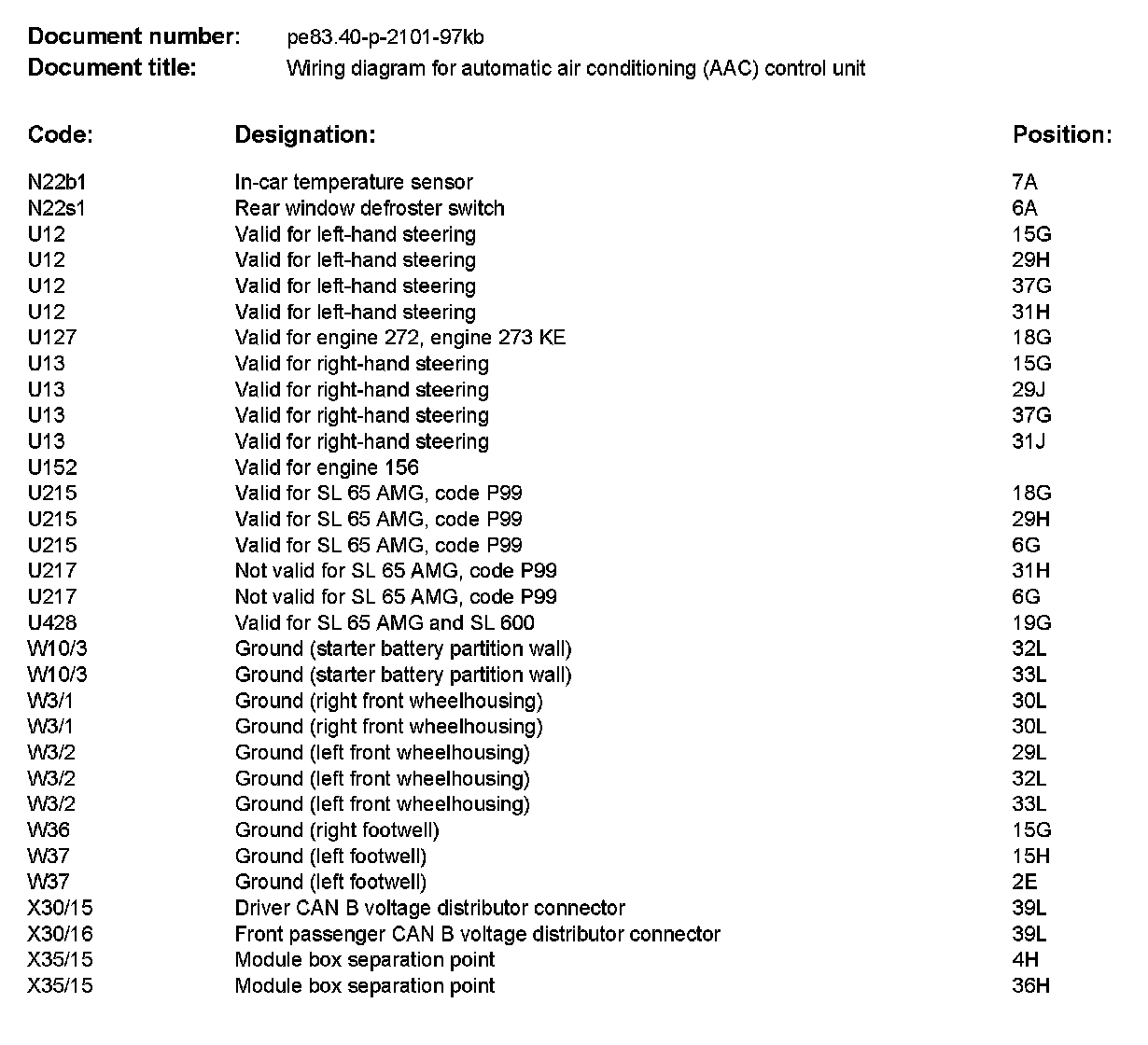

Component Description/Coordinates, N22b1 To X35/15:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
