PE82.95-P-2067KA Electrical Function Diagram For MB Information, Function

Electrical Function Diagram For MB Information, Function PE82.95-P-2067KA
- with CODE (359) TELE AID emergency call system
- refinement package
- as of model year 2009

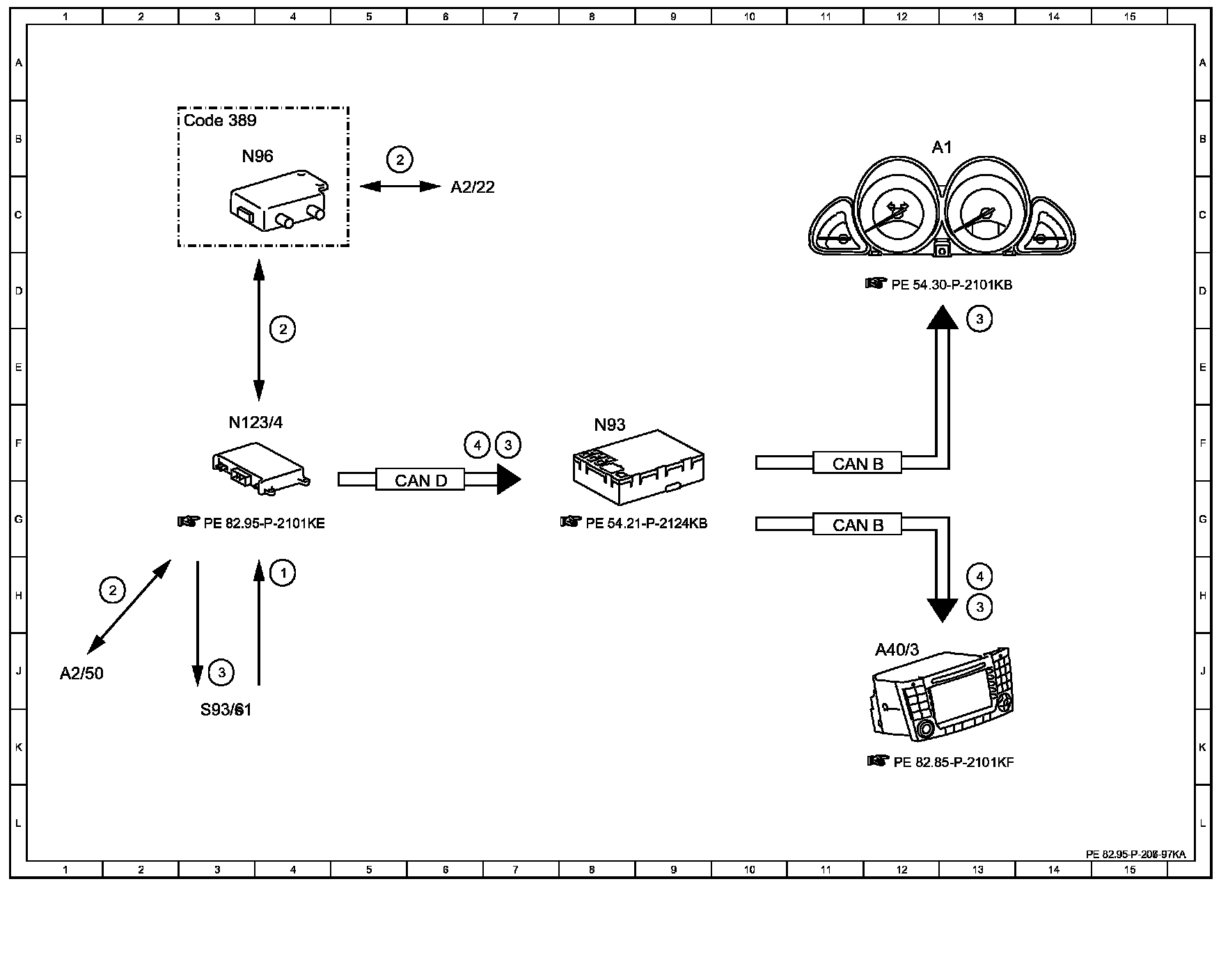

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
