PE82.95-P-2066KA Electrical Function Diagram For Manual or Automatic Emergency Call, Function

Electrical Function Diagram For Manual Or Automatic Emergency Call, Function PE82.95-P-2066KA
- with CODE (359) TELE AID emergency call system
- refinement package
- as of model year 2009

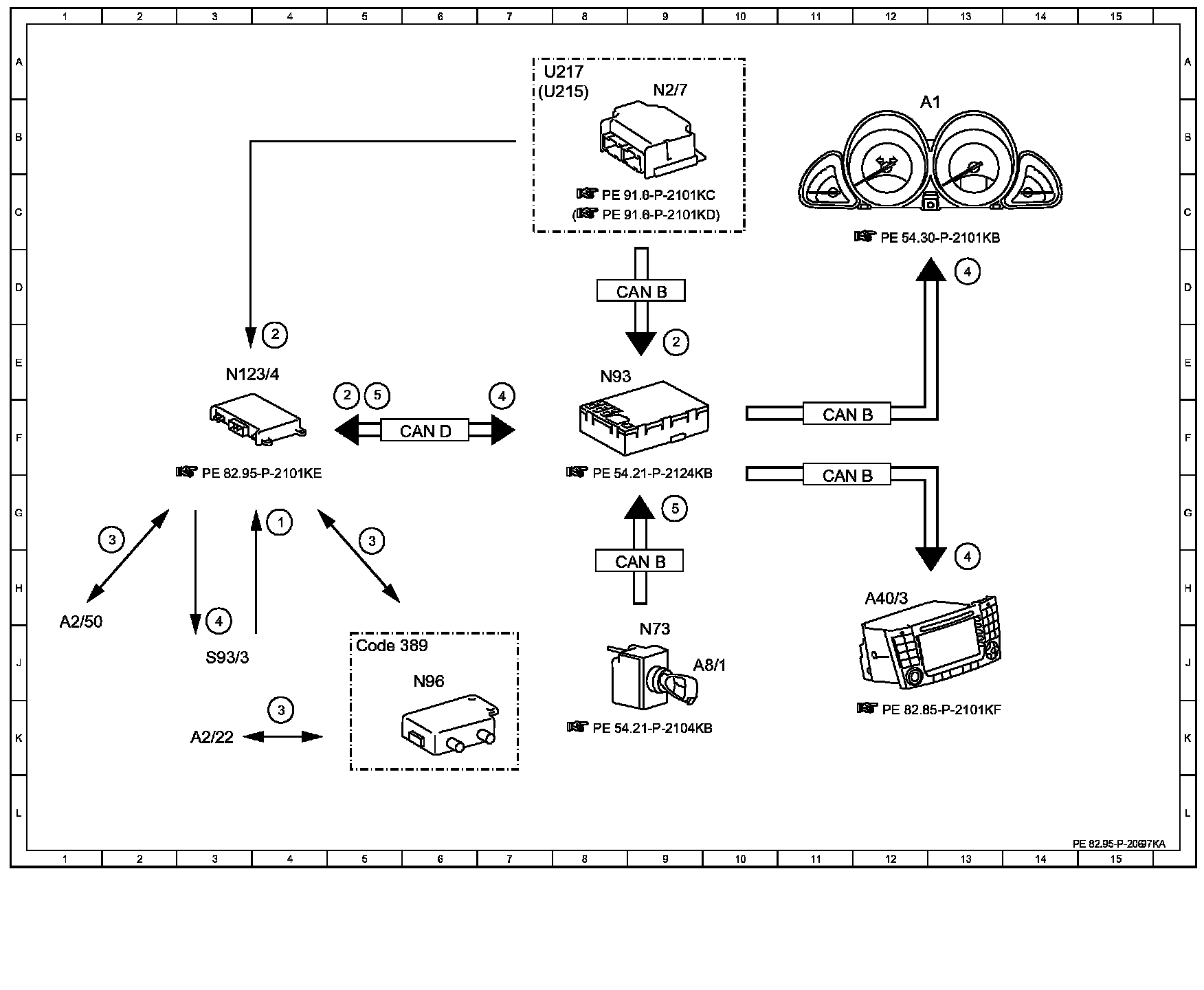

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
