PE82.70-P-2059KA Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call and Conference Call

Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And Conference Call PE82.70-P-2059KA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- basic telephony
- as of model year 2009

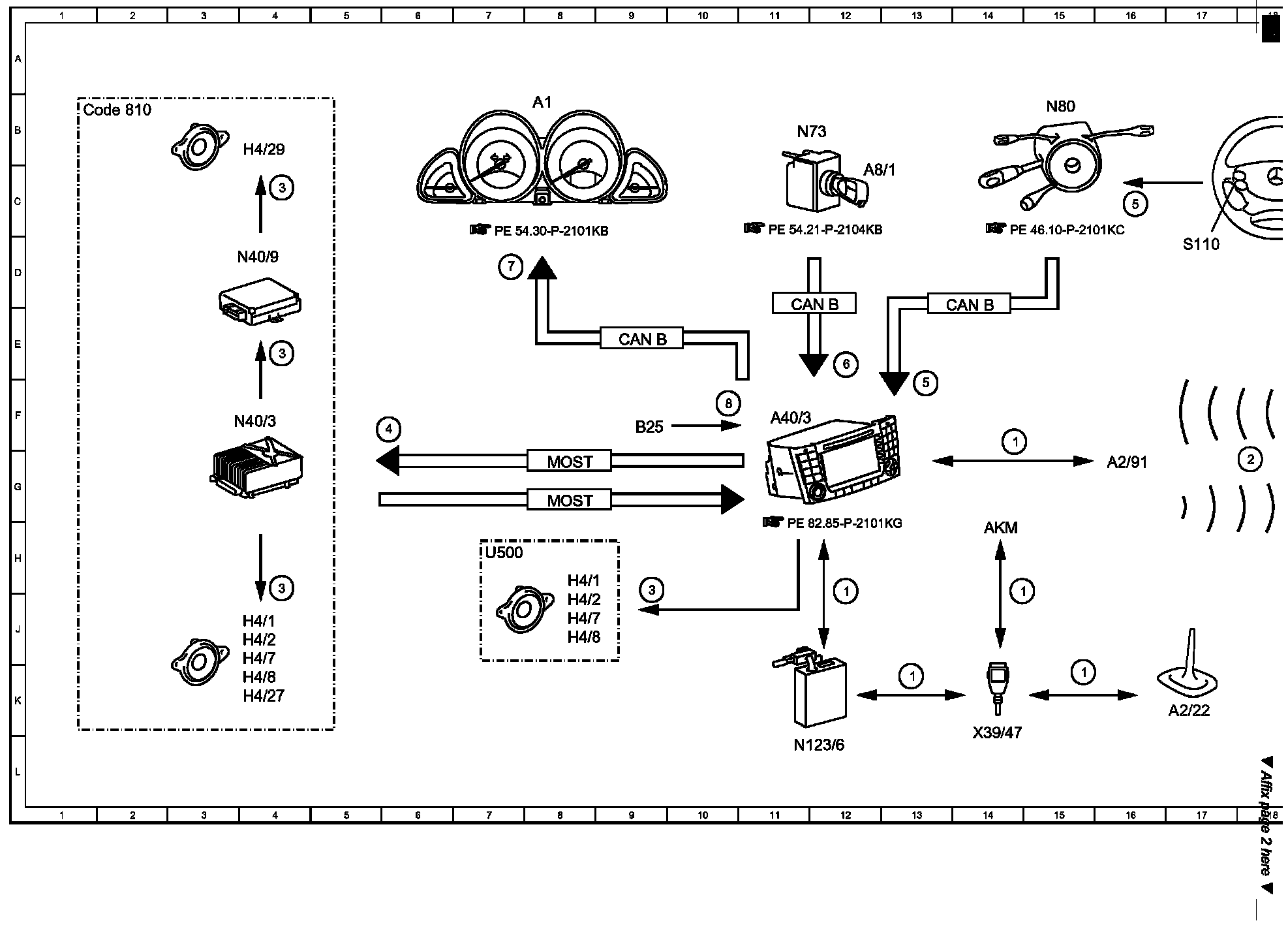

Function Diagram (Part 1):

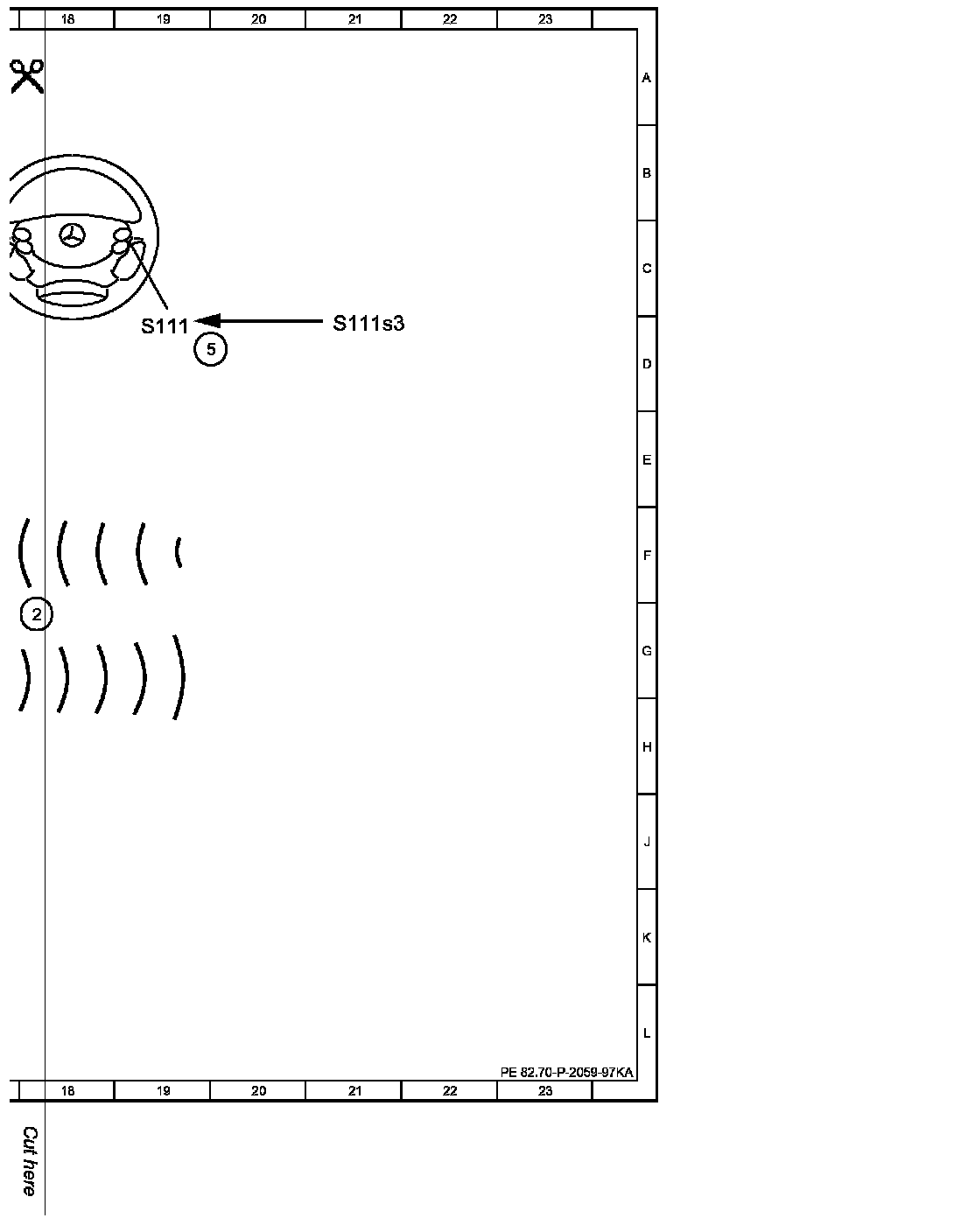

Function Diagram (Part 2):

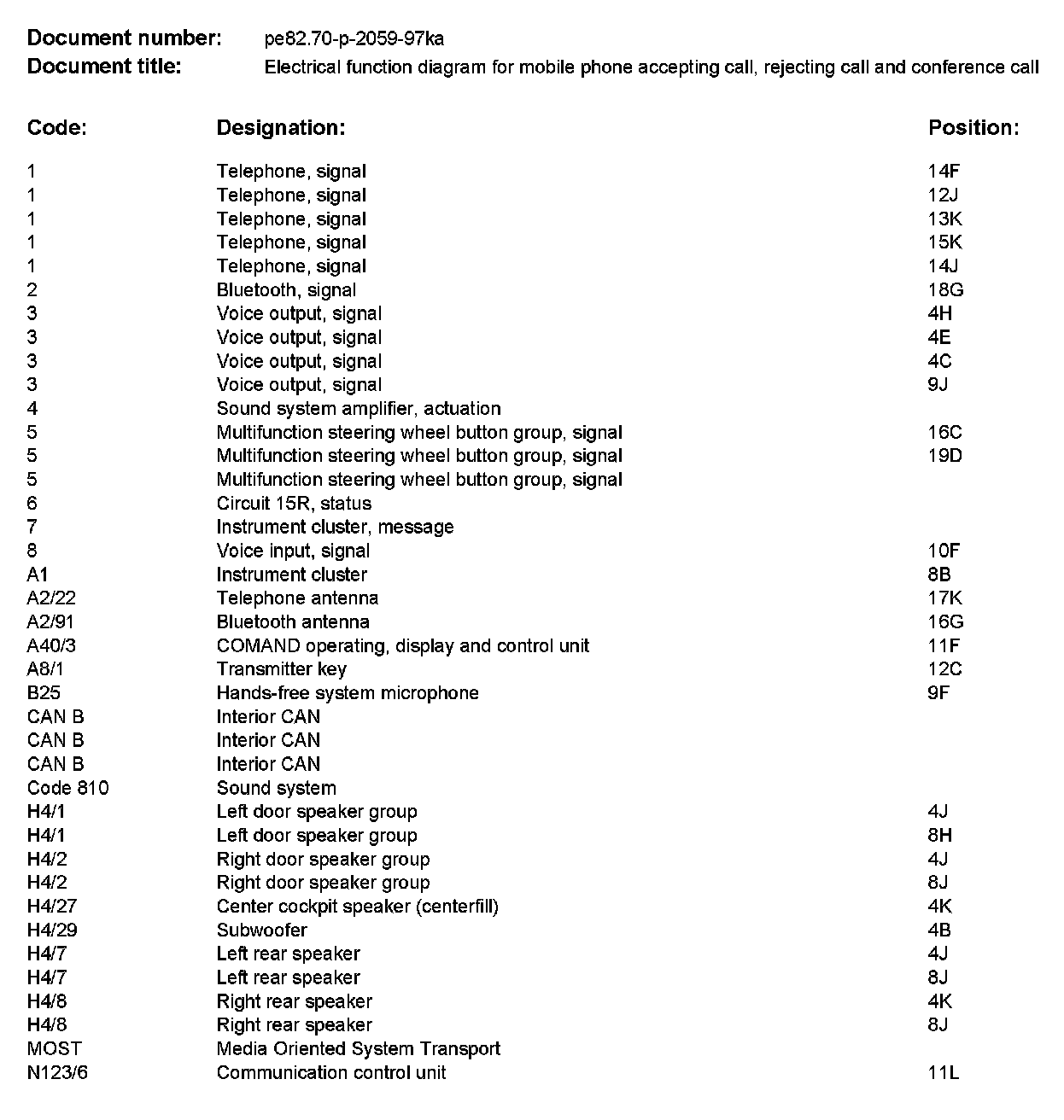

Component Description/Coordinates, 1 To N123/6:

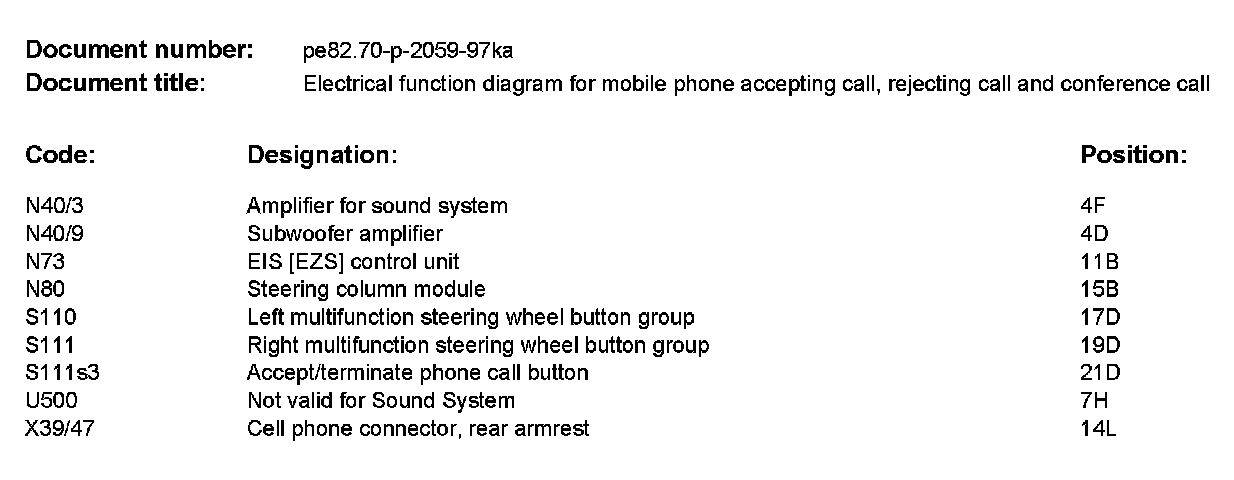

Component Description/Coordinates, N40/3 To X39/47:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
