PE82.70-P-2058KA Electrical Function Diagram For Mobile Phone Accepting Call and Rejecting Call

Electrical Function Diagram For Mobile Phone Accepting Call And Rejecting Call PE82.70-P-2058KA
- except CODE (498) Japan version
- with CODE (528) COMAND with DVD changer without navigation
- refinement package
- as of model year 2009

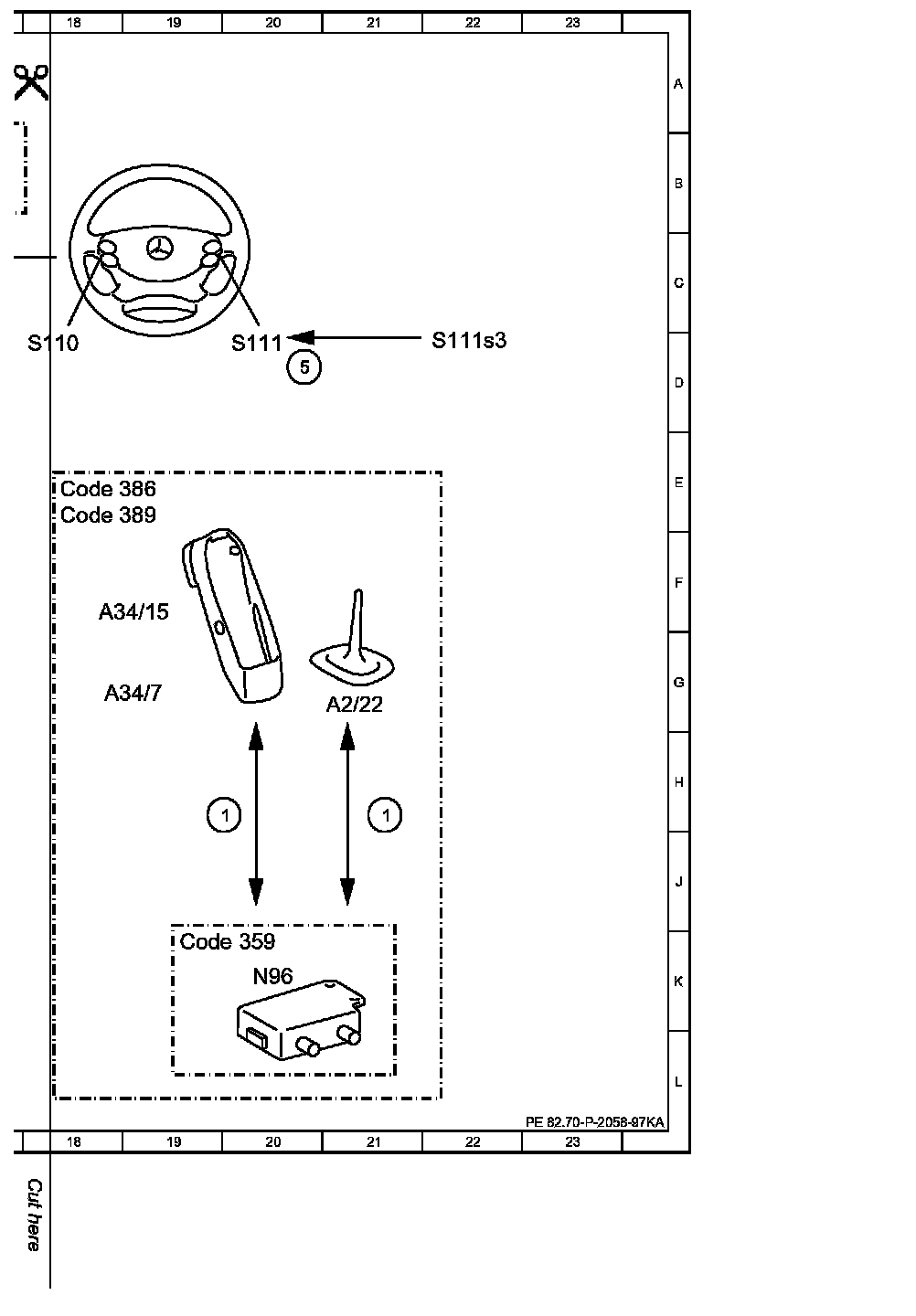

Function Diagram (Part 1):

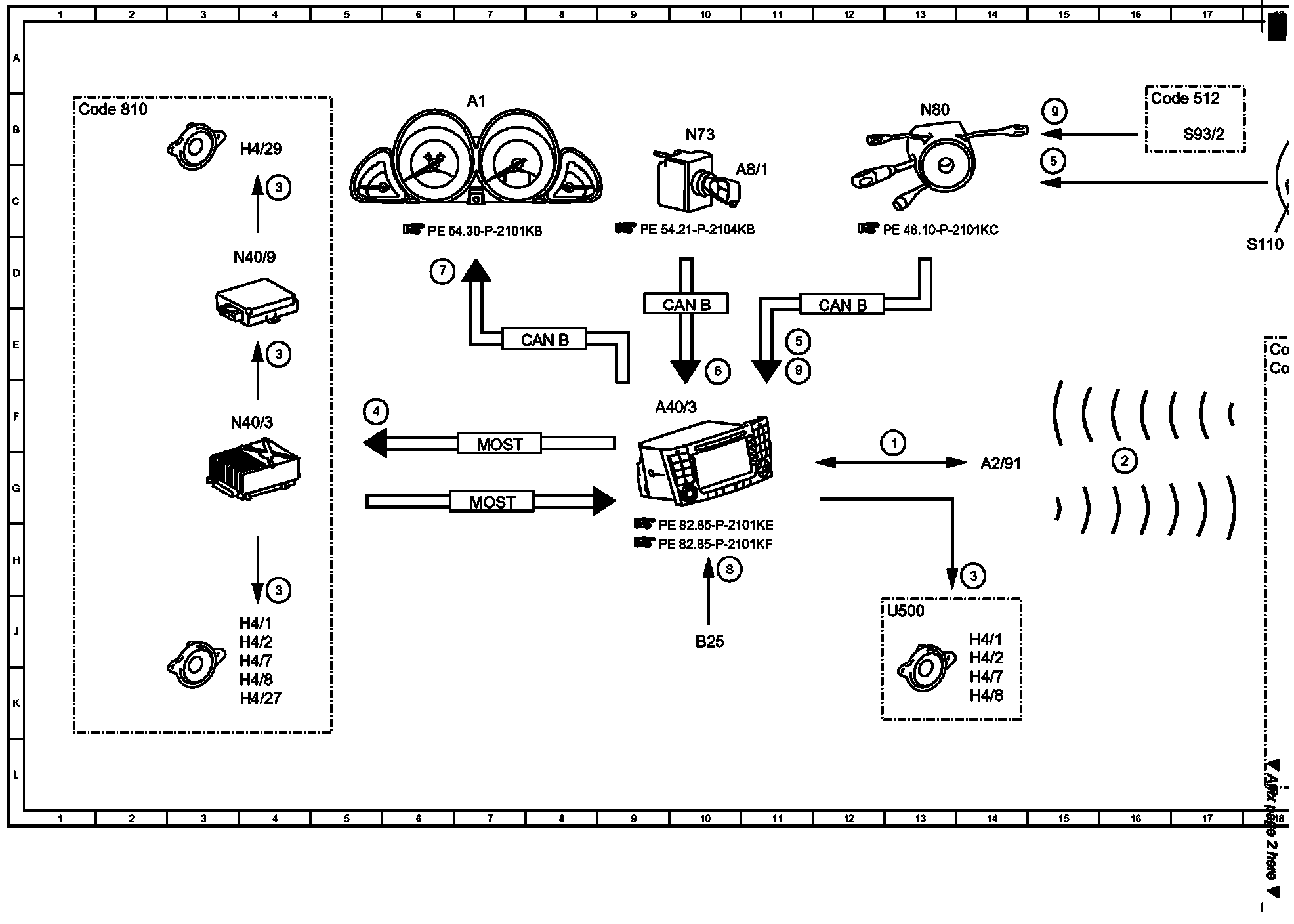

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
