PE82.70-P-2054KB Electrical Function Schematic For Mobile Phone, Switch on and Switch OFF Characteristics

Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics PE82.70-P-2054KB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- basic telephony
- as of model year 2009

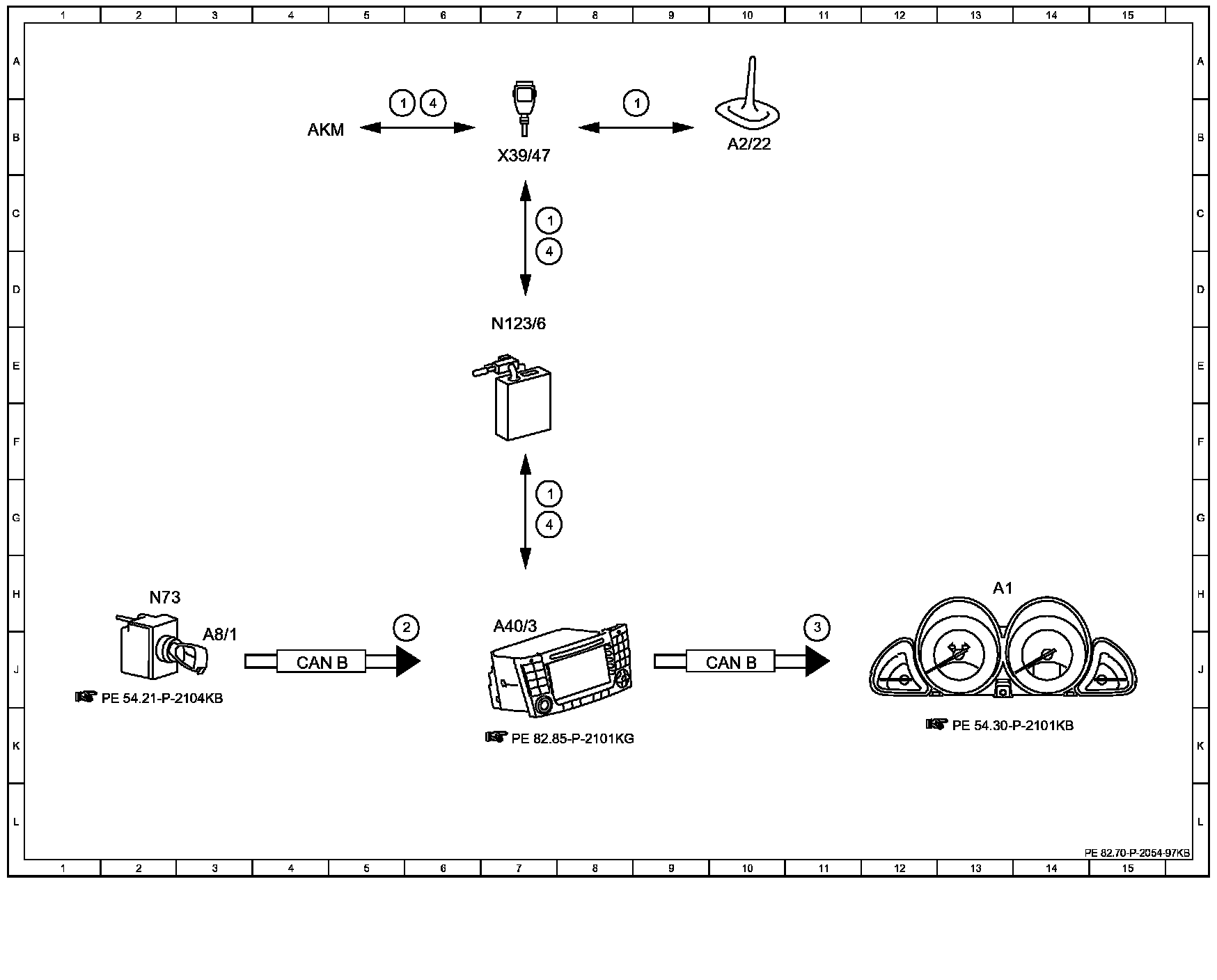

Function Diagram:

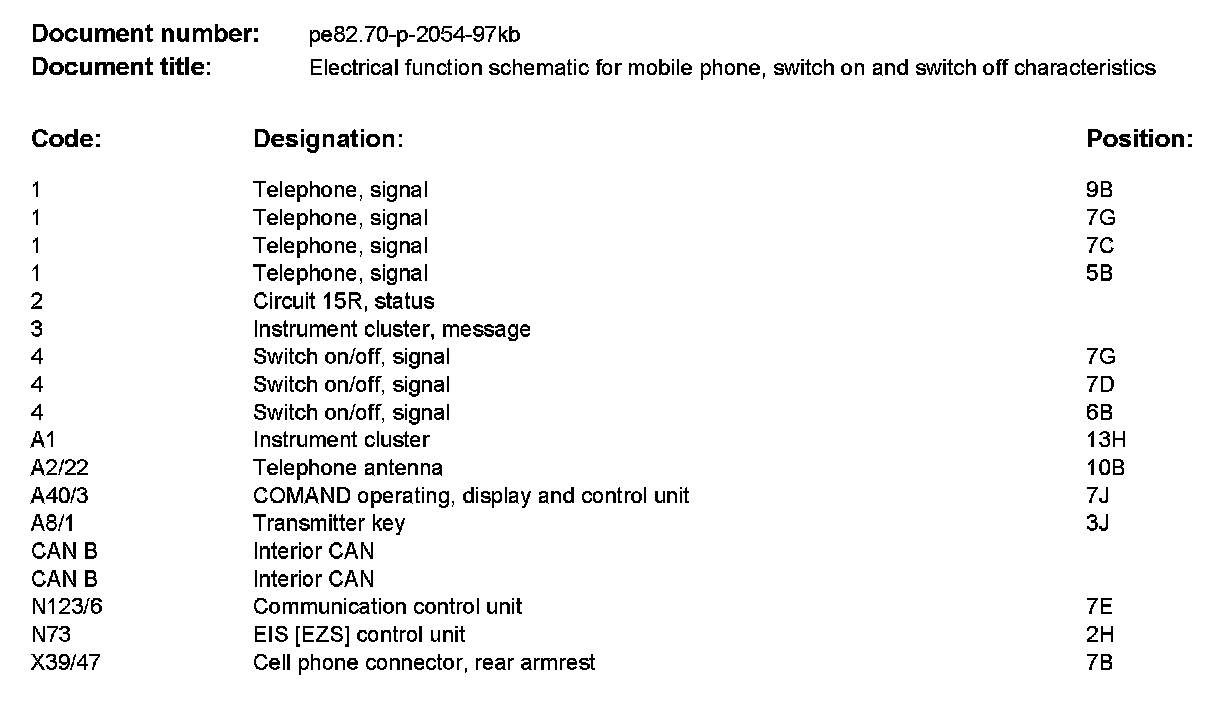

Component Description/Coordinates 1 To X39/47:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
