PE80.50-P-2054KA Function Schematic For Electric Antitheft Alarm System, Alarm Actuation By Panic Switch

Function Schematic For Electric Antitheft Alarm System, Alarm Actuation By Panic Switch PE80.50-P-2054KA
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- refinement package
- as of model year 2009

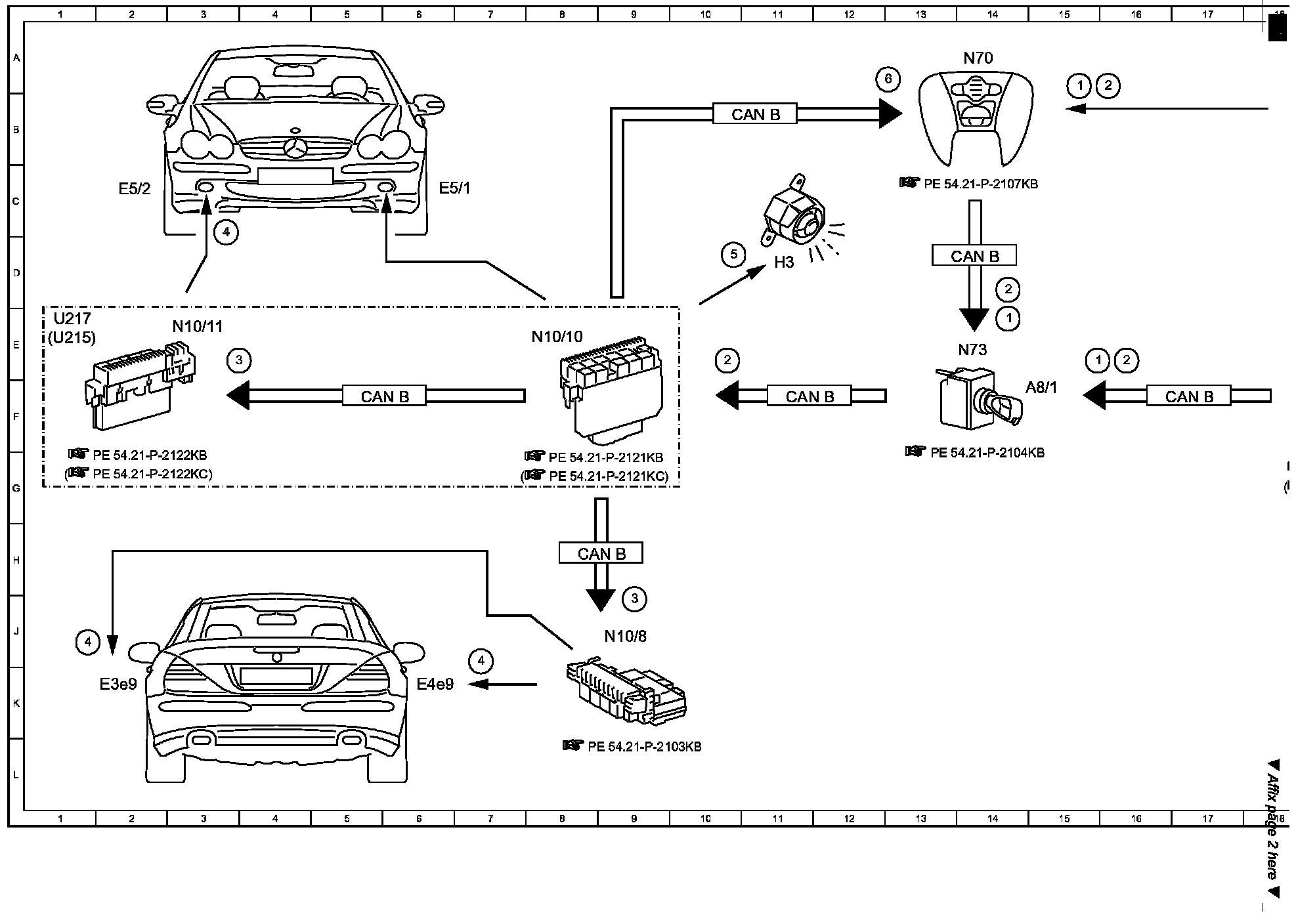

Function Diagram (Part 1):

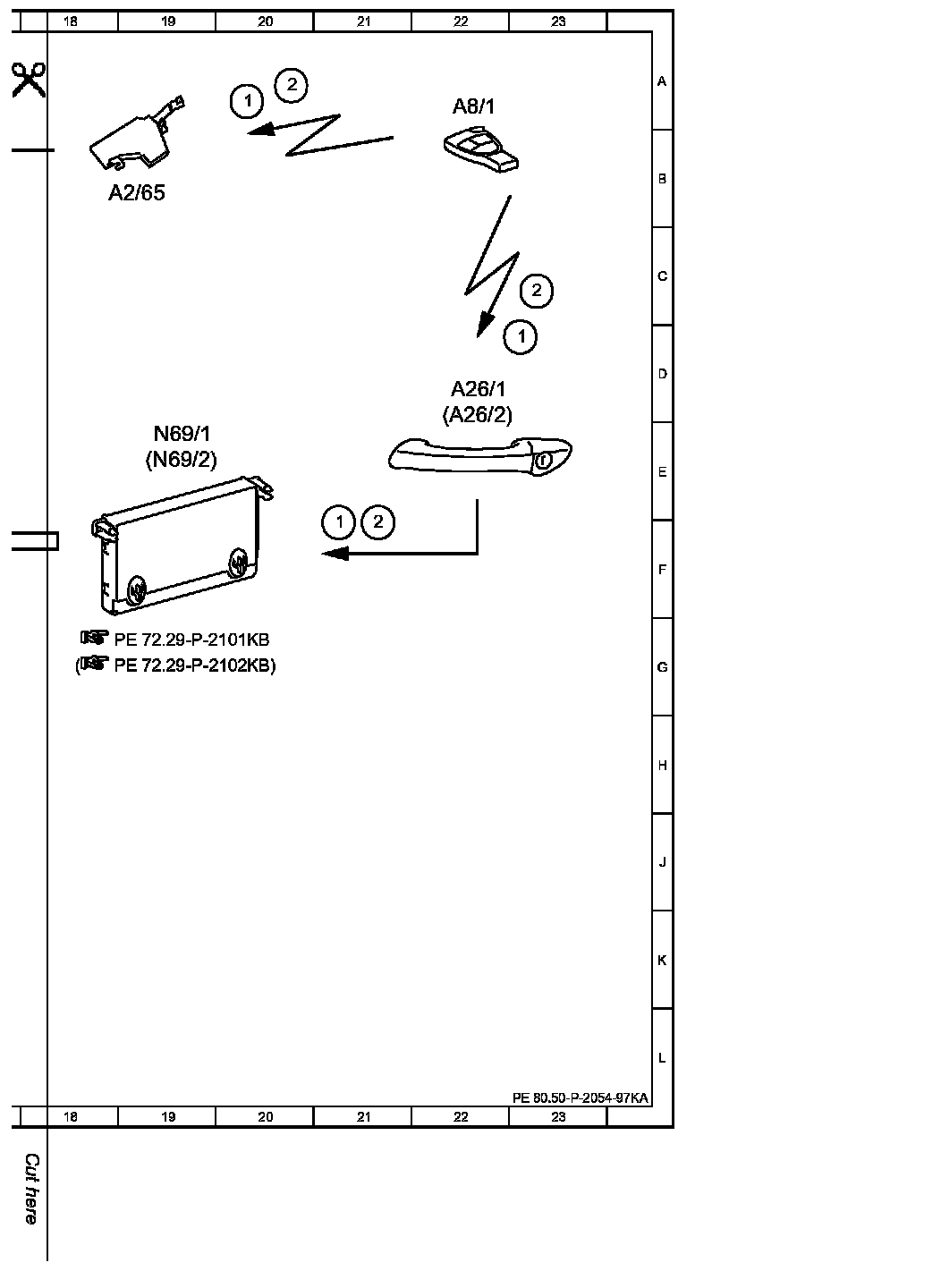

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
