PE80.50-P-2052KA Function Schematic For Electric Anti-Theft Alarm System, Activation

Function Schematic For Electric Anti-Theft Alarm System, Activation PE80.50-P-2052KA
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- refinement package
- as of model year 2009

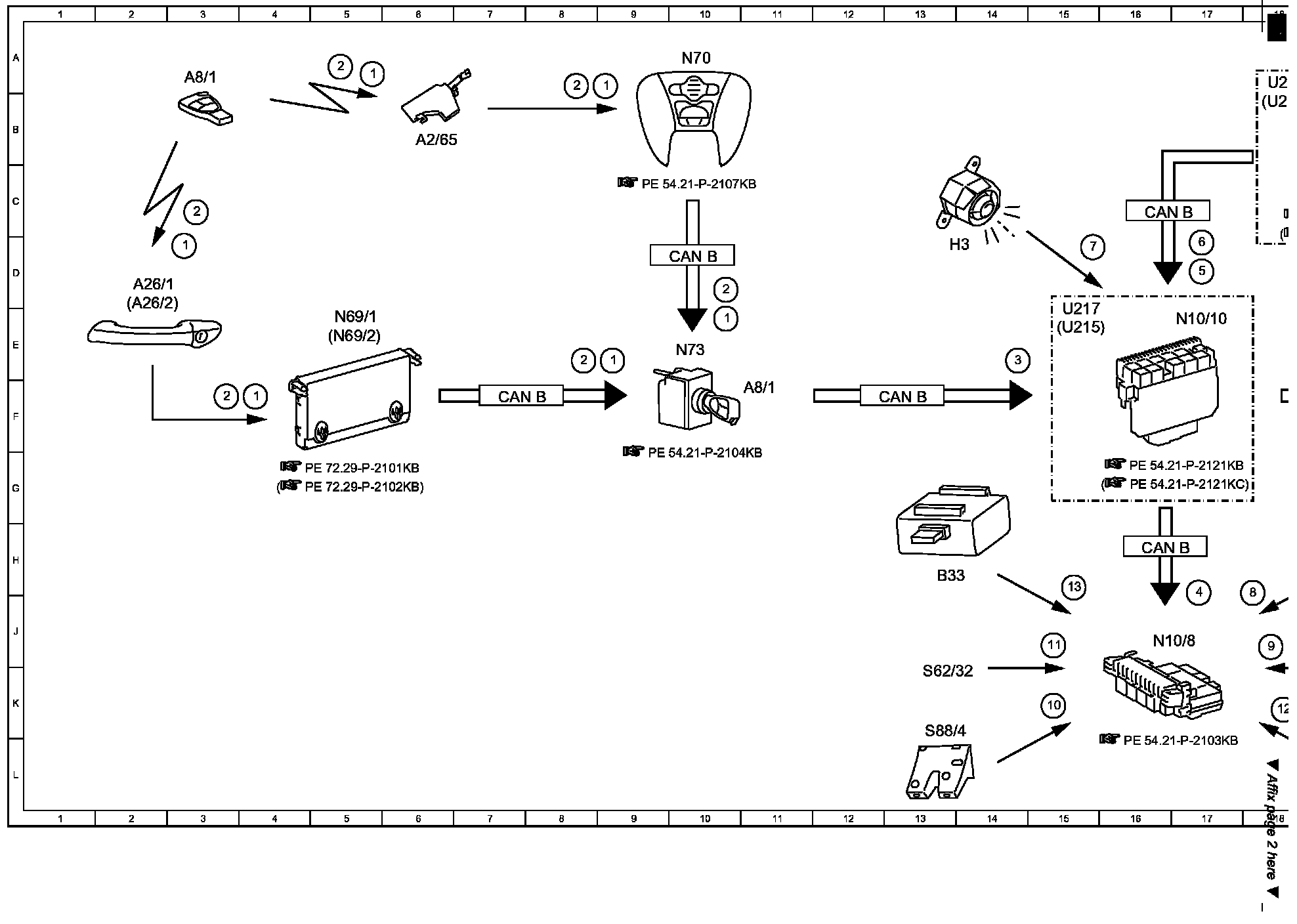

Function Diagram (Part 1):

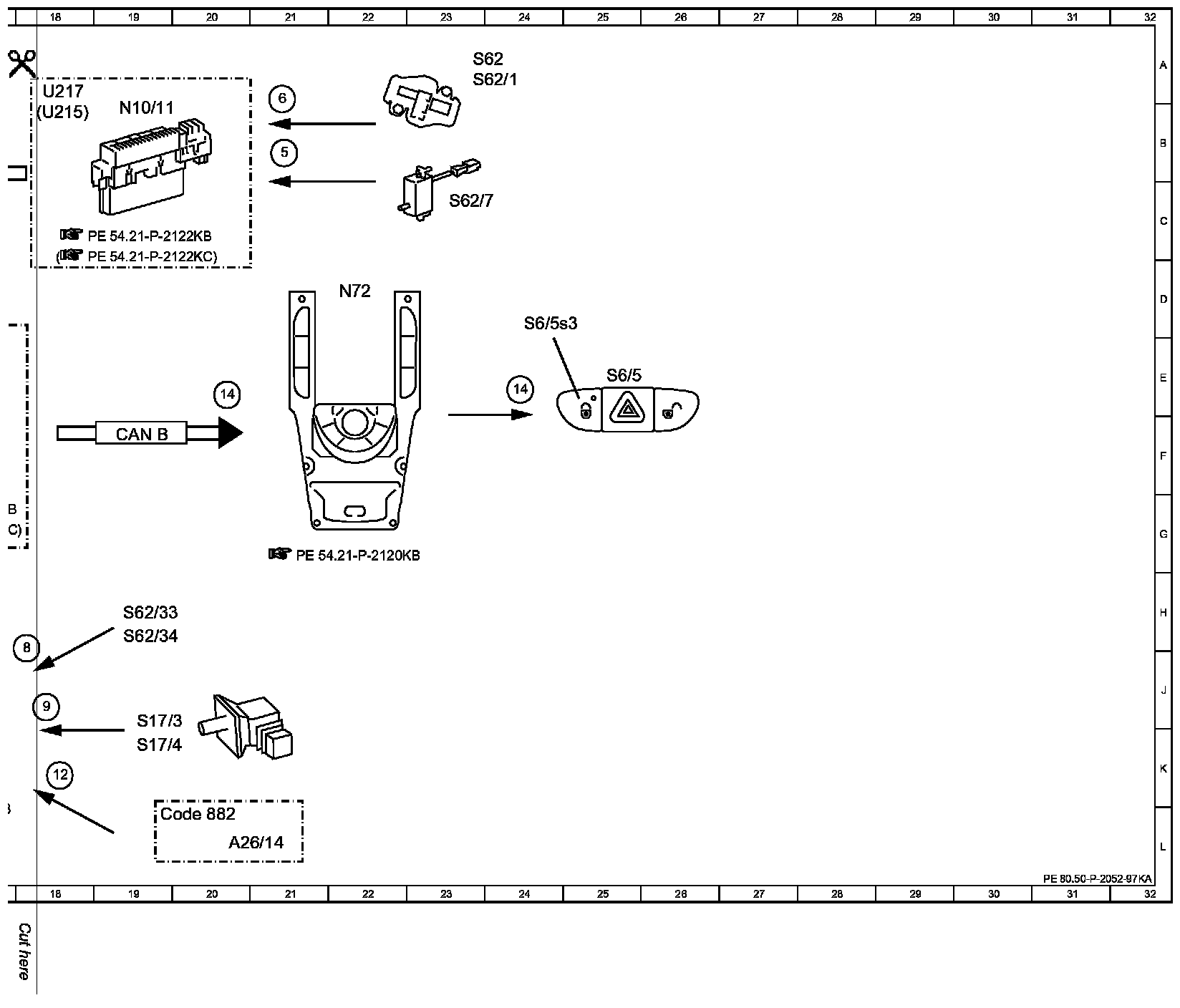

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
