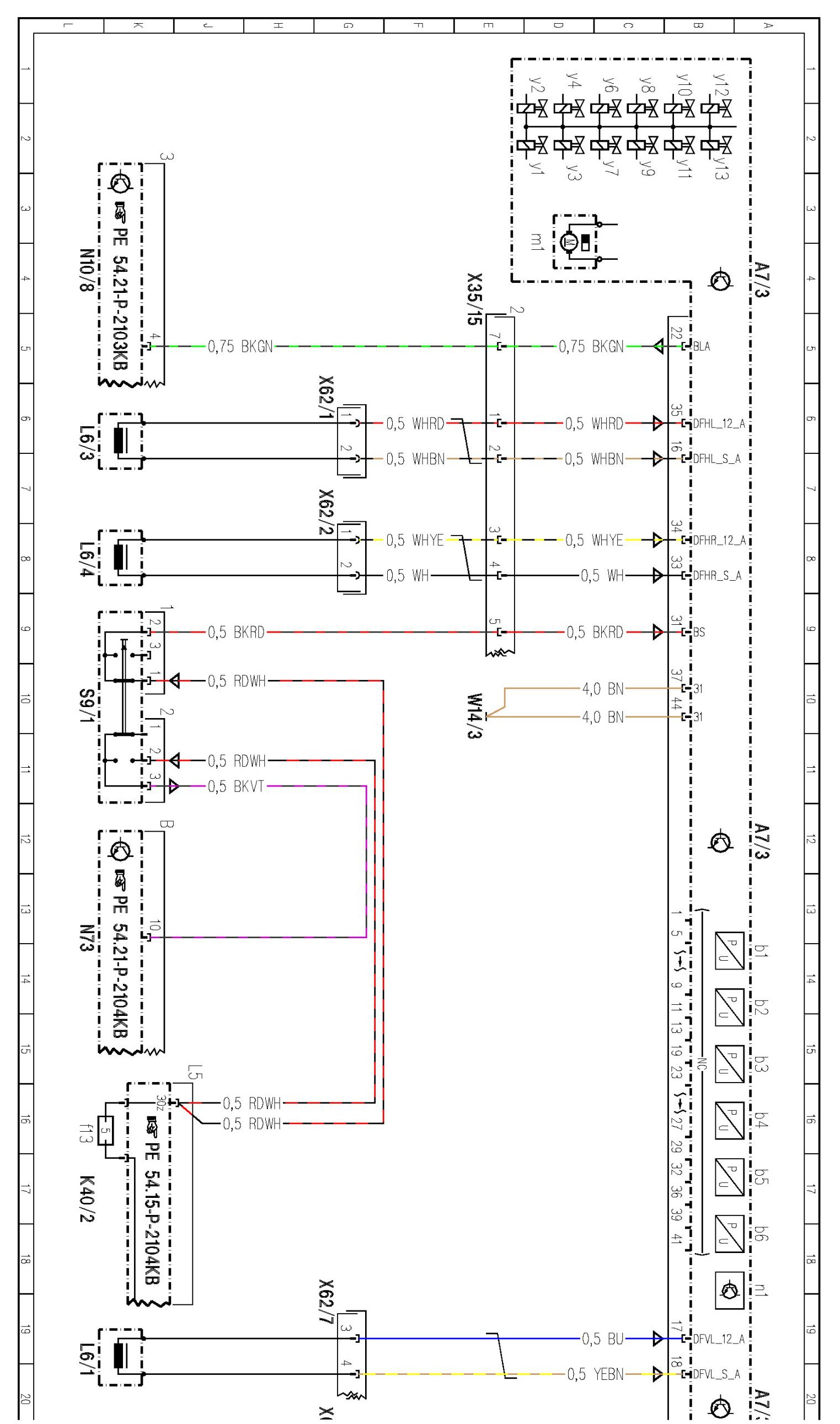

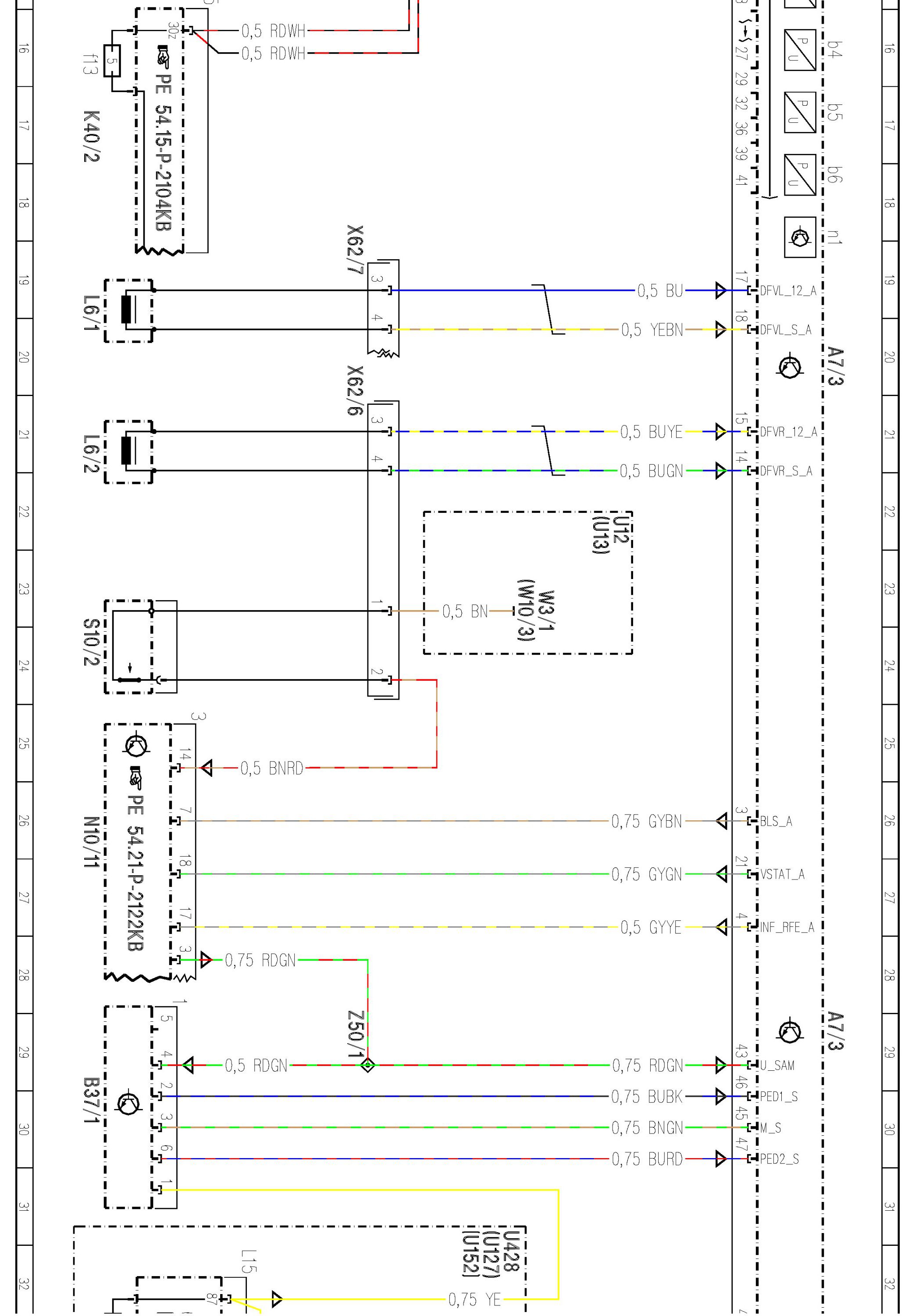

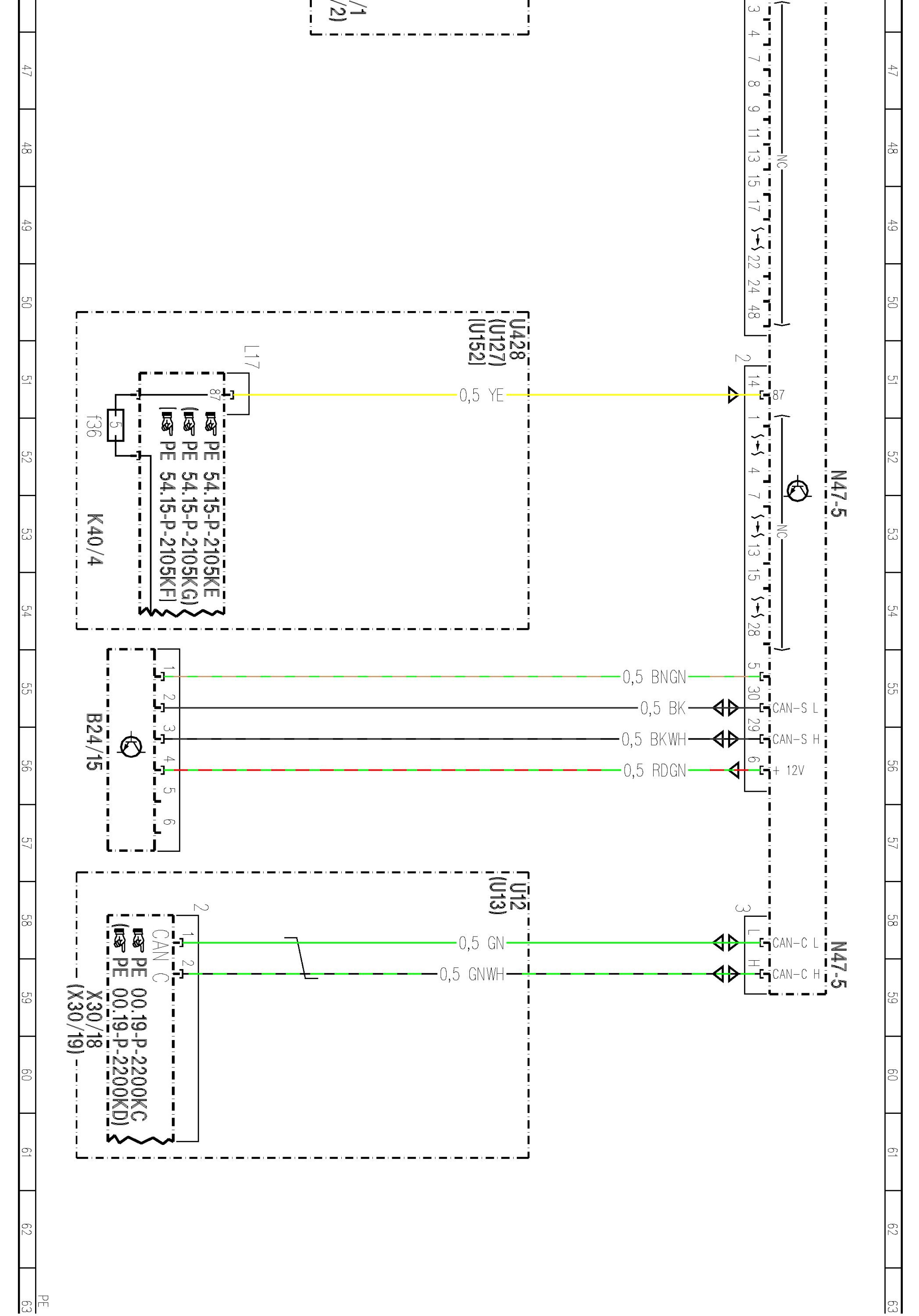

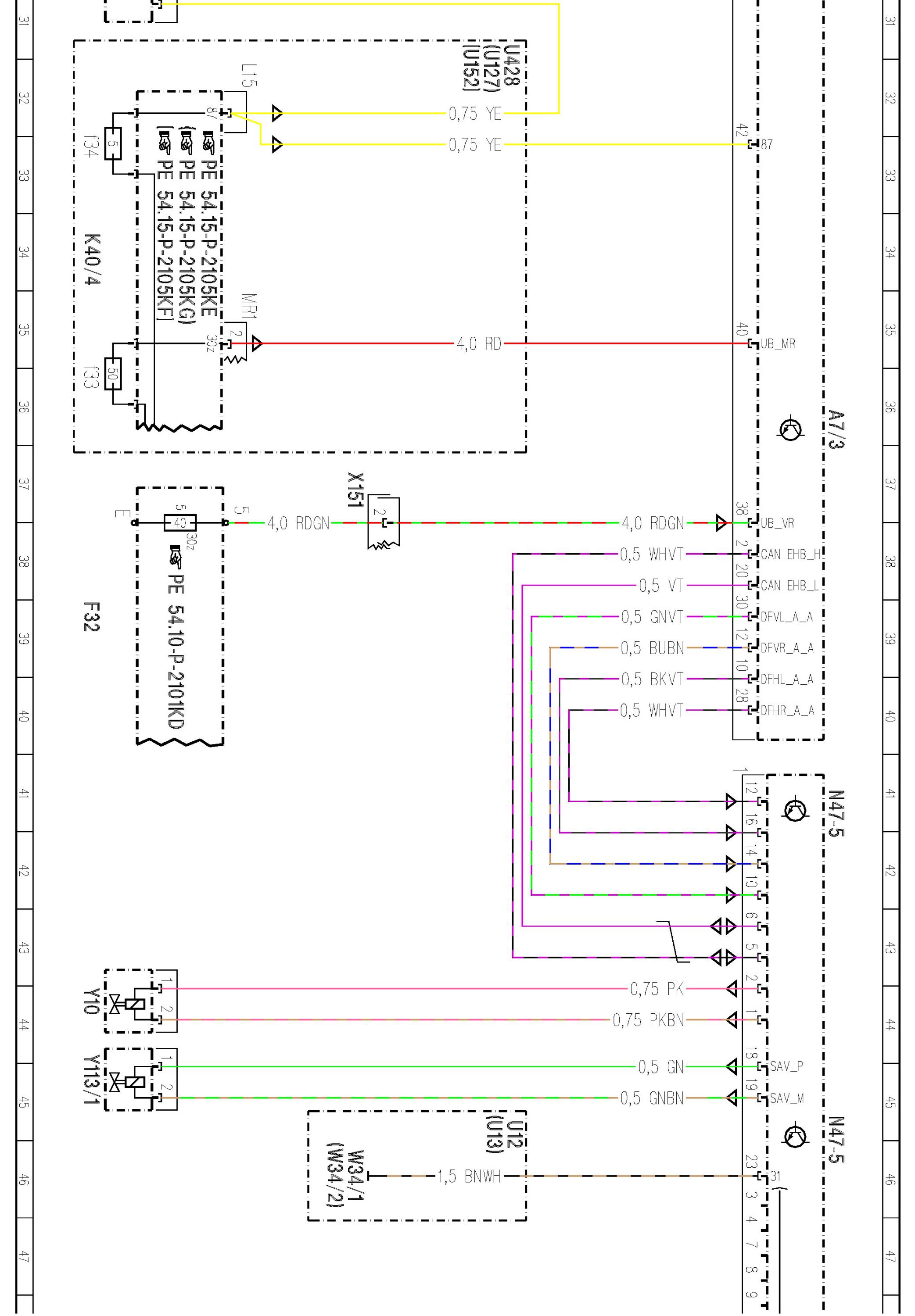

PE42.45-P-2101KC Electronic Stability Program (ESP) Control Module, Wiring Diagram

PE42.45-P-2101KC Electronic Stability Program (ESP) Control Module, Wiring Diagram

Model 230
- except CODE (P99) special model "AMG Black Series"
- as of model year 2009 /YoM 08 model refinement package
- Control units A7/3 and N47-5 with Sensotronic Brake Control

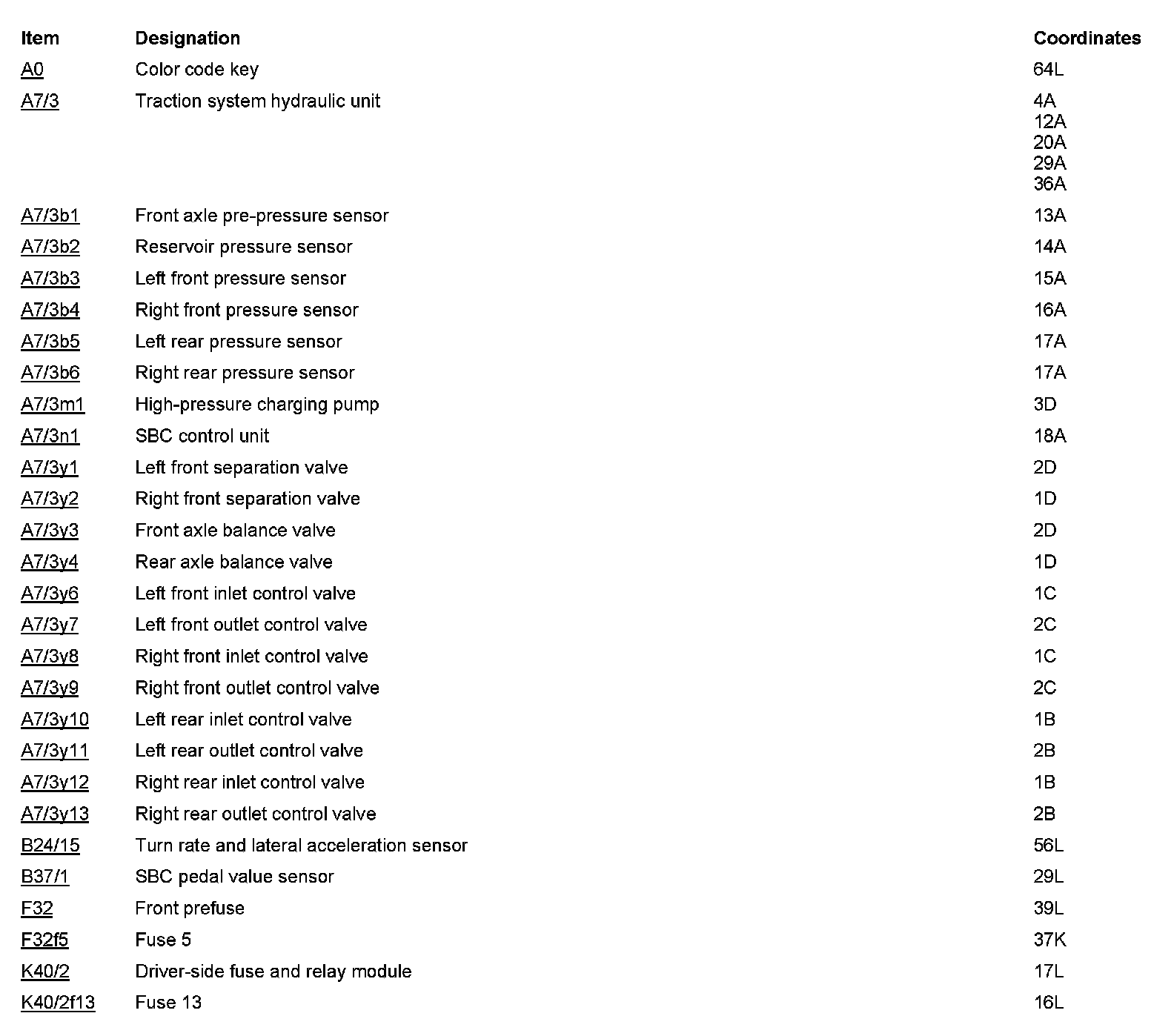

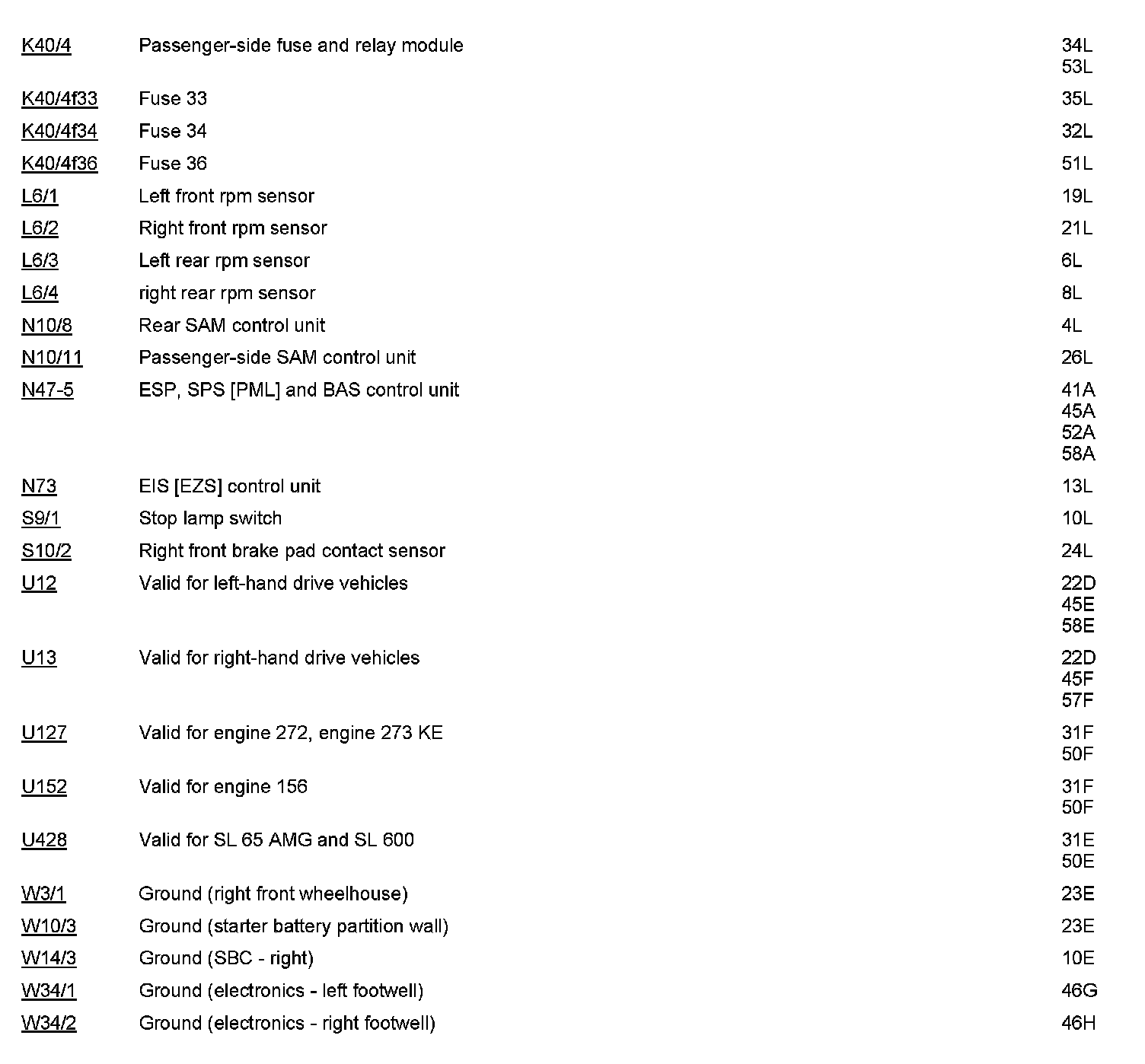

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
