PE82.85-P-2065KB Electrical Function Diagram For TV Mode, Function

Electrical Function Diagram For TV Mode, Function PE82.85-P-2065KB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (865) TV tuner
- with CODE (498) Japan version
- refinement package
- as of model year 2009

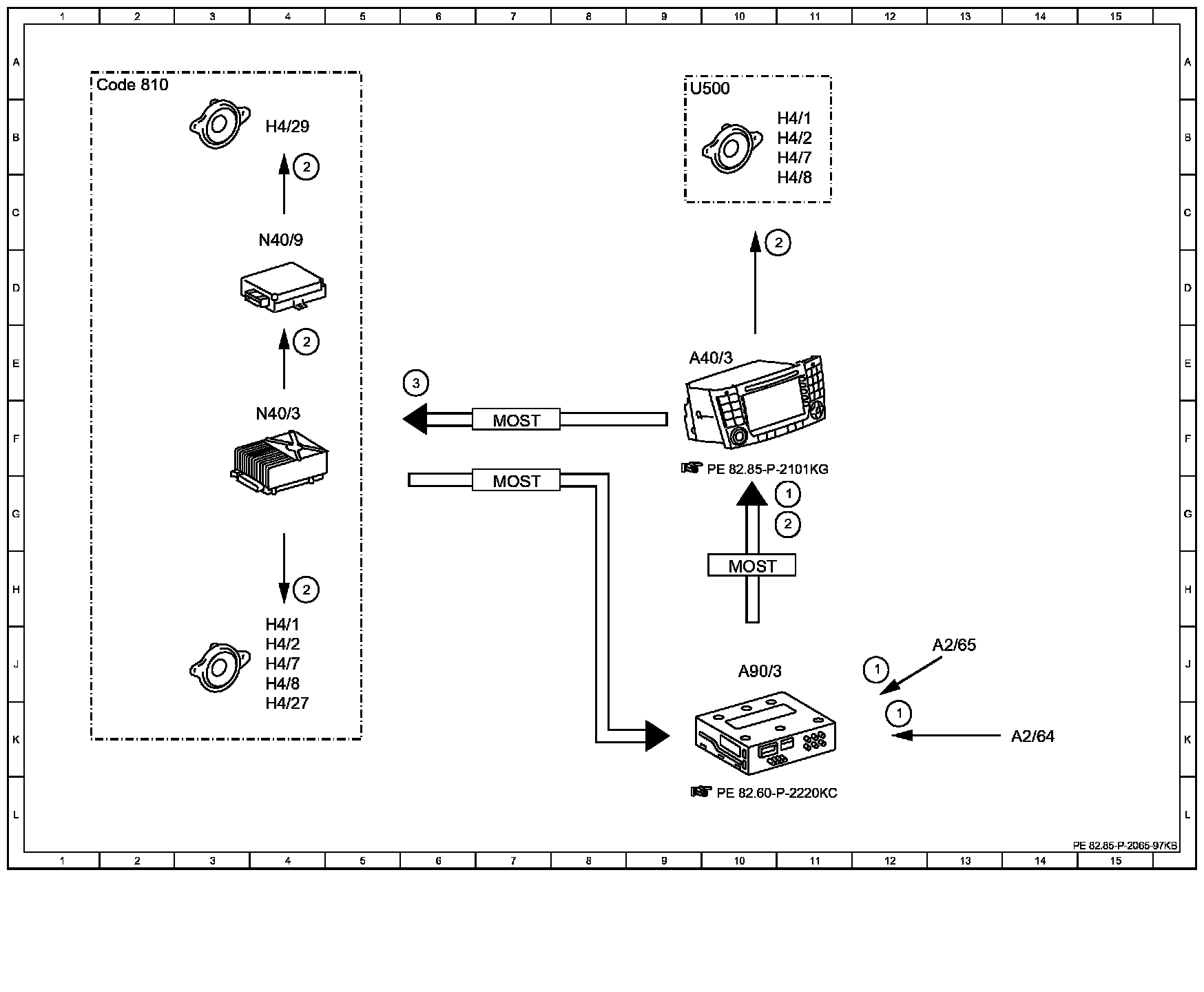

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
