PE82.85-P-2064KB Electrical Function Diagram For Video Mode, Function

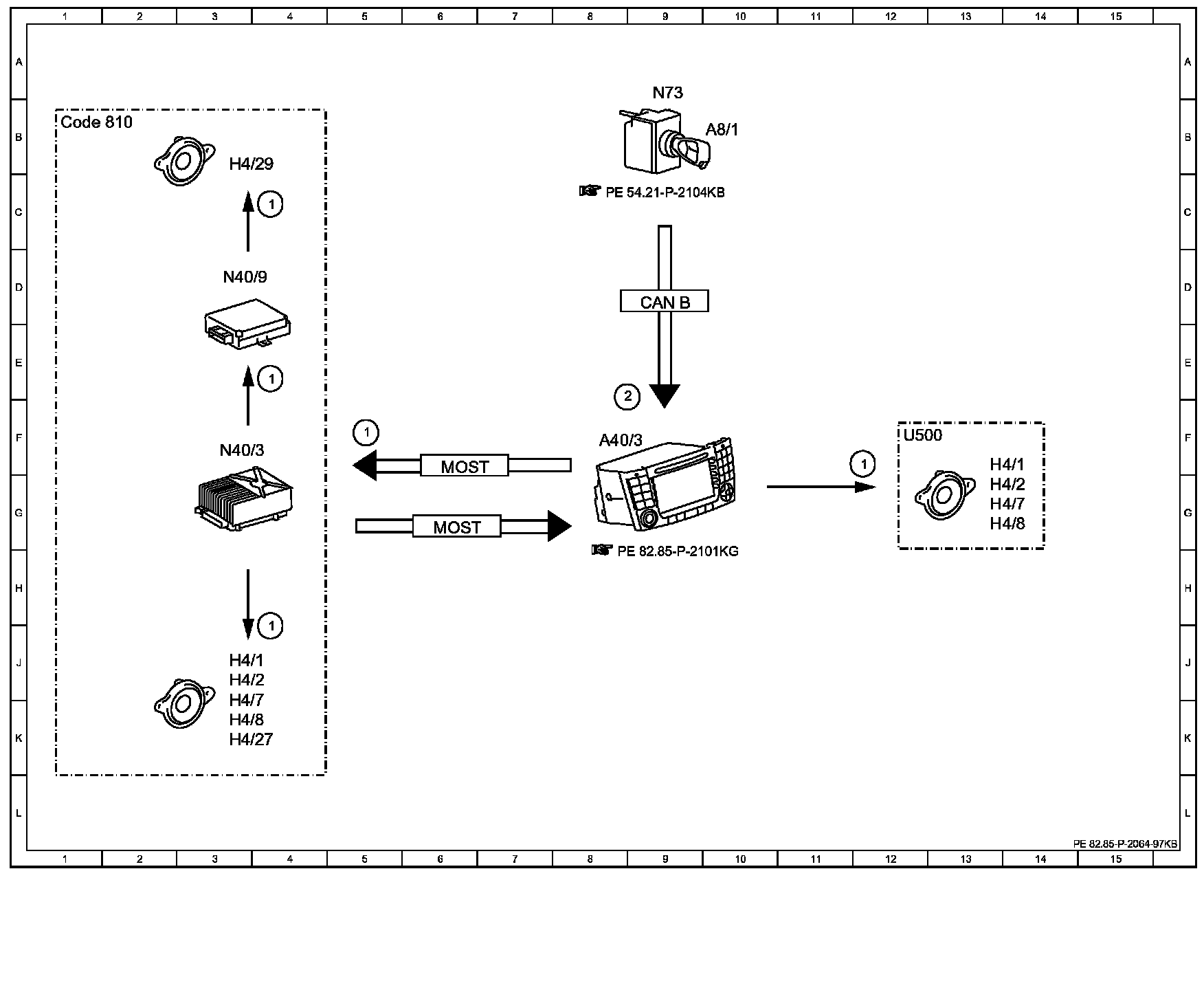

Electrical Function Diagram For Video Mode, Function PE82.85-P-2064KB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- refinement package
- as of model year 2009

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
