PE82.85-P-2056KB Electrical Function Diagram For COMAND Voice Control

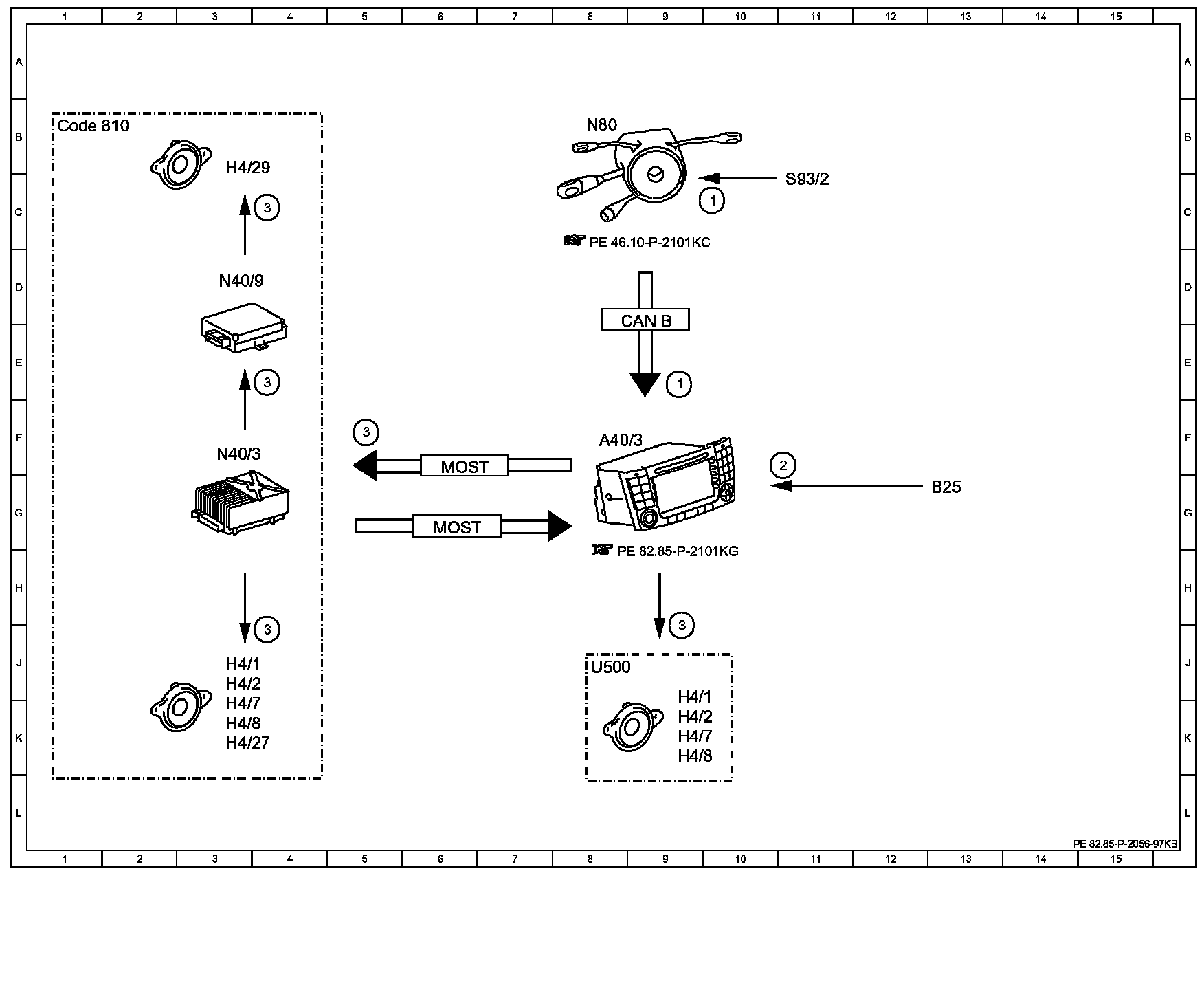

Electrical Function Diagram For COMAND Voice Control PE82.85-P-2056KB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- refinement package
- as of model year 2009

Function Diagram:

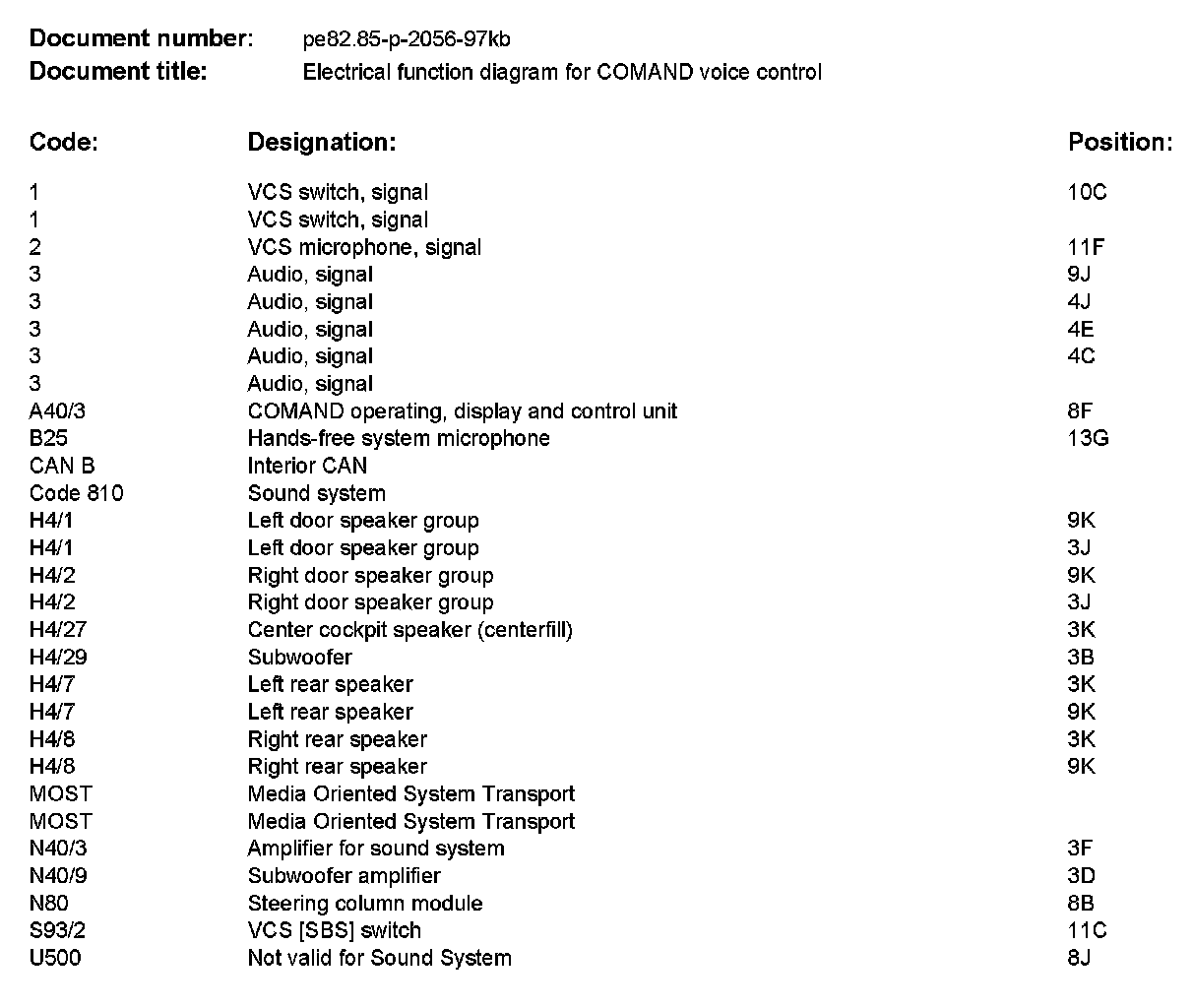

Component Description/Coordinates, 1 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
