AR43.10-P-0350RBS Remove/Install Brake Booster



AR43.10-P-0350RBS Remove/install brake booster
- with CODE (P99) Special model "AMG Black Series"

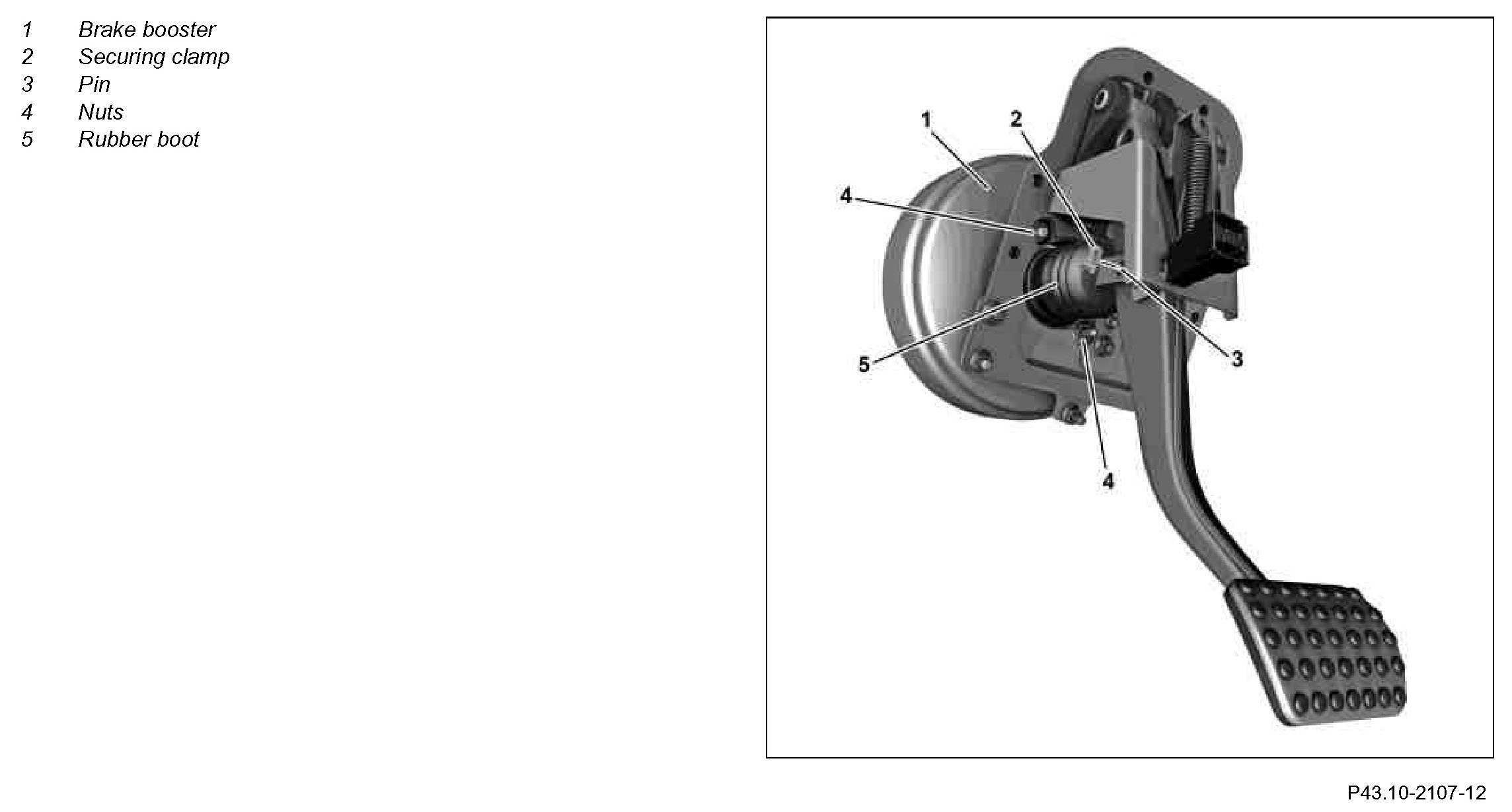

Component Identification:

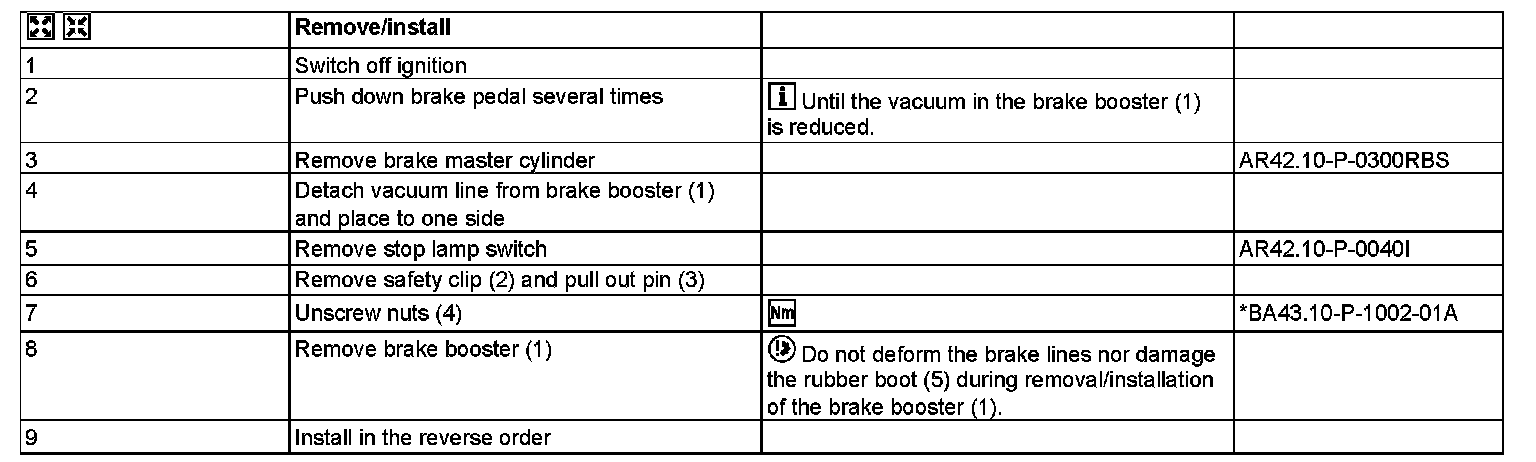

Steps 1-9:

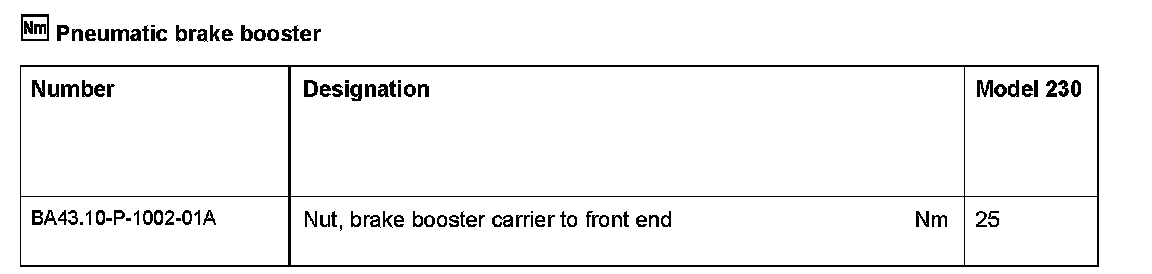

Pneumatic Brake Booster:
